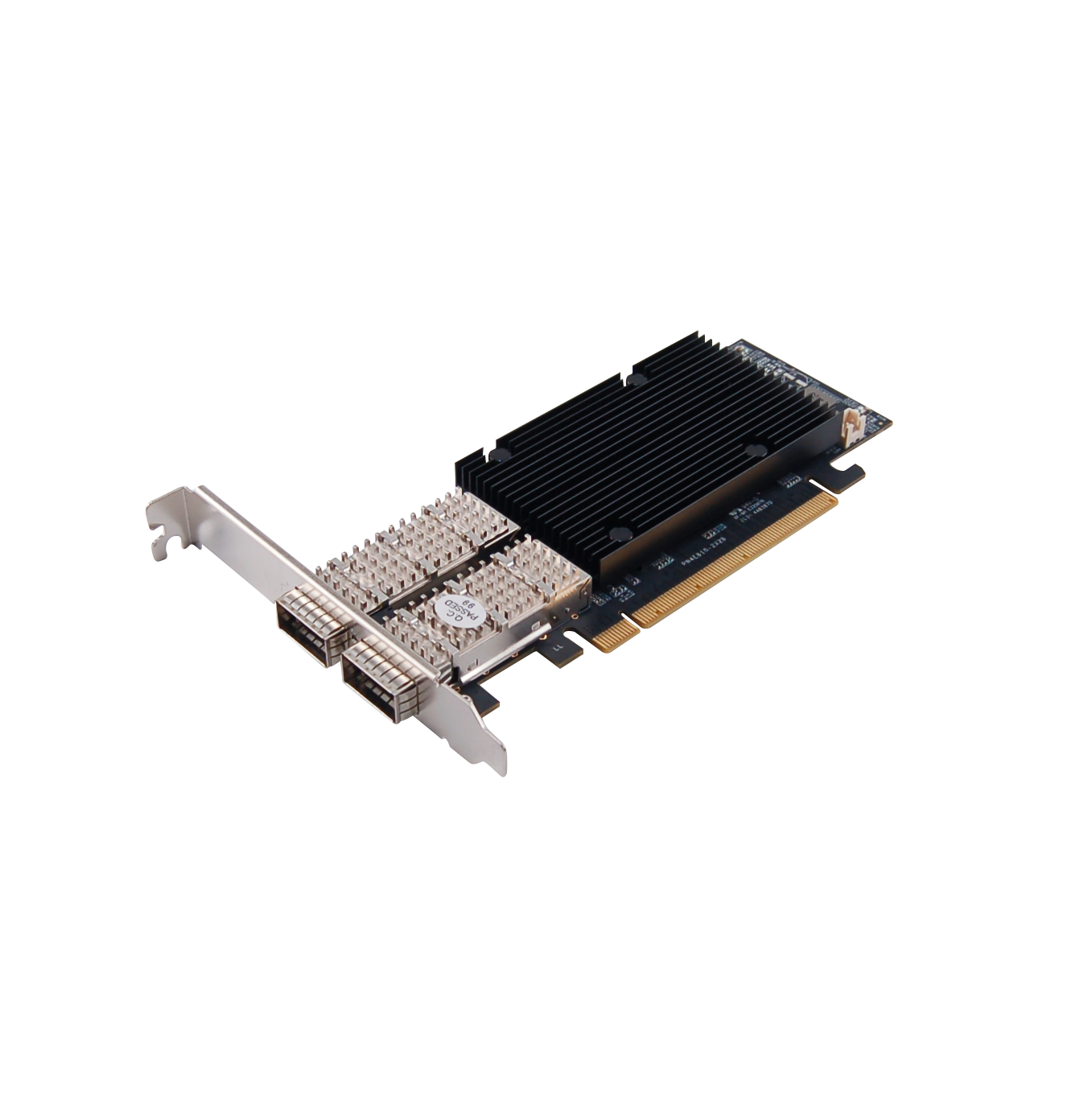

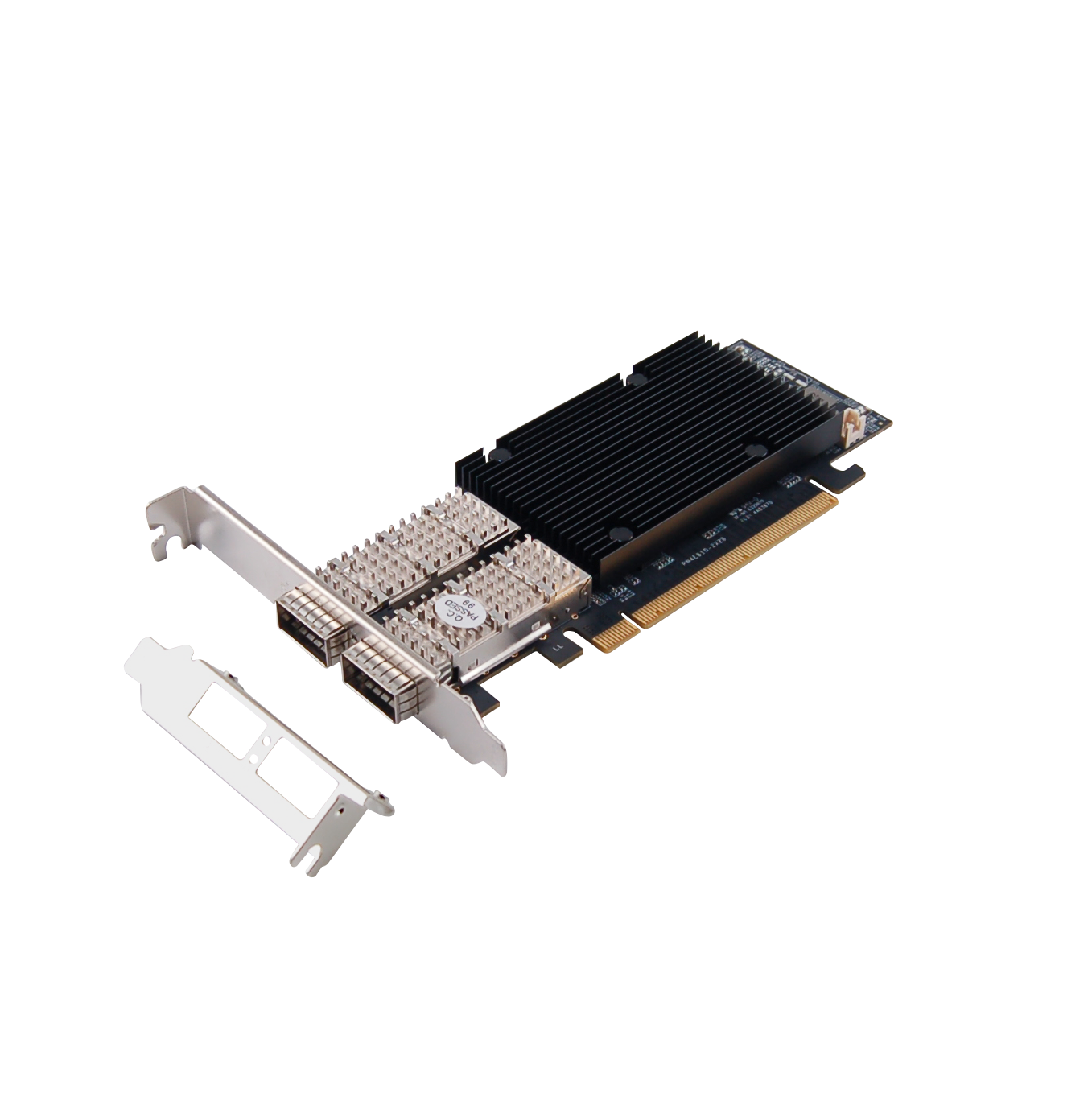

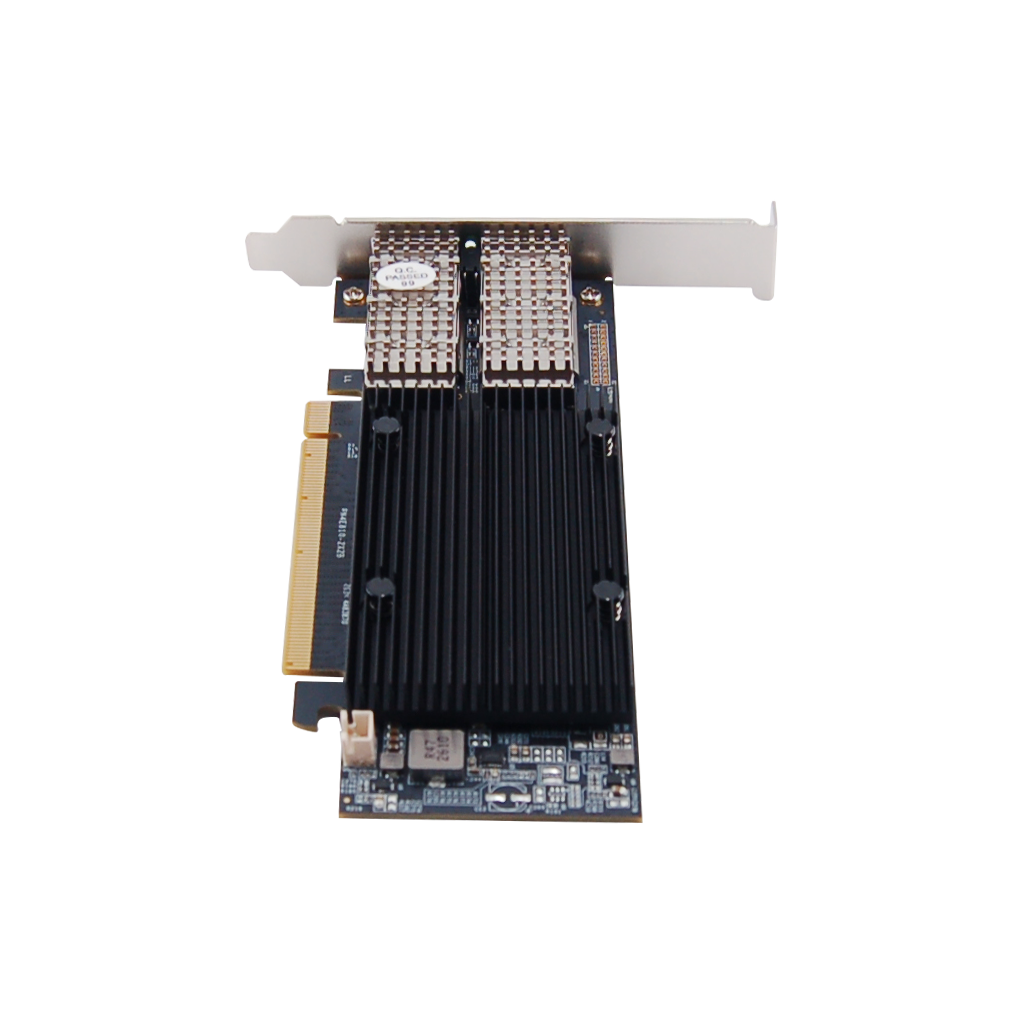

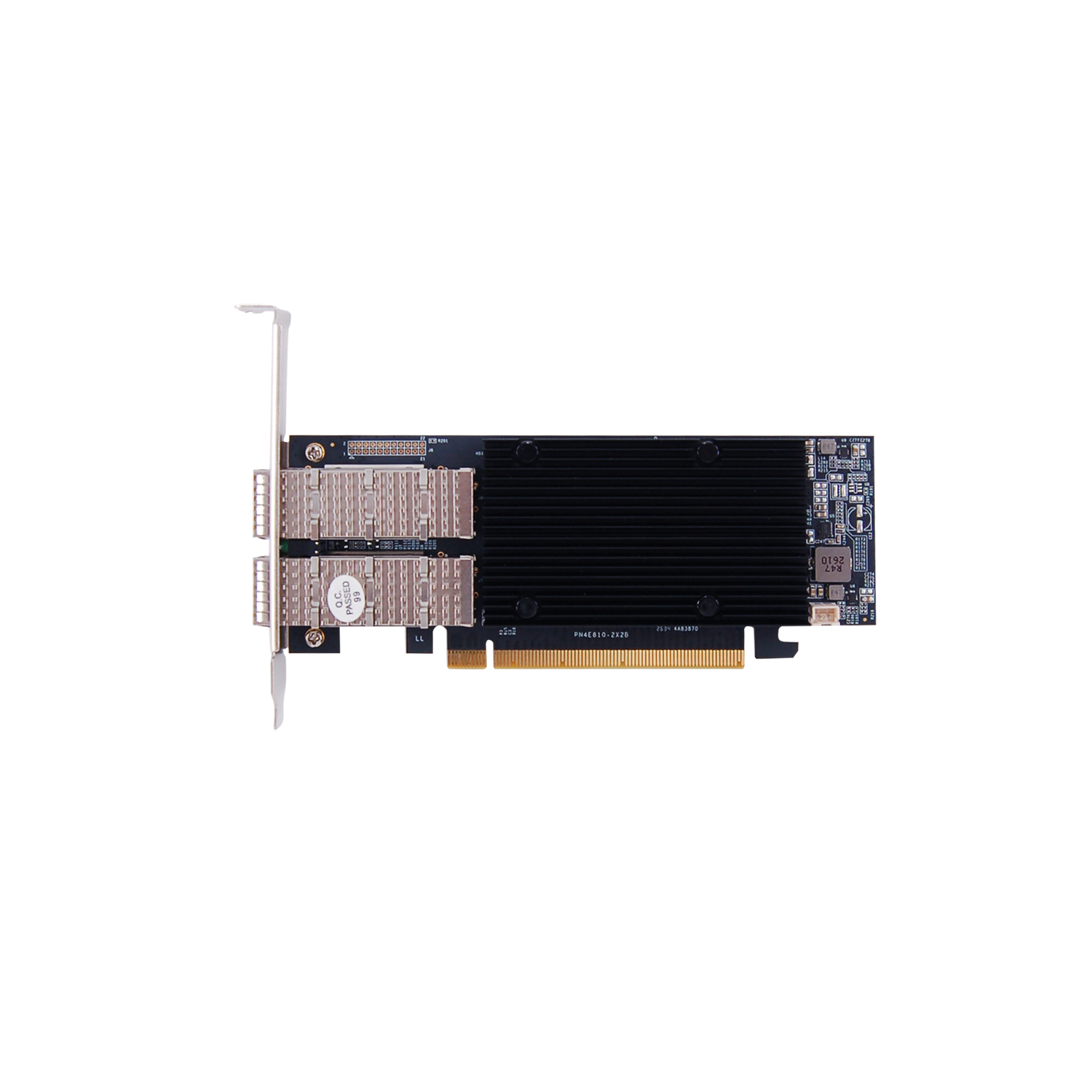

N-780 Intel PCIe 2-Port 100G QSFP28 Network Adapter


2x QSFP28
Supports 100G/50G/25G/10Gbps optics, AOC and DAC modules

  • Ordering Code: N-780
  • Part No: NE-D32-1210-00-00012
  • Solution: Intel E810-CAM2

The high performance PCIe 100G QSFP28 Ethernet Adapters provide two QSFP28 ports for network connection of data rate up to 100Gbps.

By using Intel's top of the class E810 Ethernet controller, the adapters are designed to optimize high-performance system workloads for Cloud and Communications.


PCIe Gen4 x16 form factor

Supports standard and low-profile systems

Provides two QSFP28 ports for multiple high-speed connections

Supports 100G/50G/25G/10Gbps optics, AOC and DAC modules

Various performance optimization technologies: ADQ, DDP, DPDK

Supports IEEE1588 PTP v2 Precision Time Protocol

Supports both RDMA iWARP and RoCEv2 for high-speed, lowlatency connectivity to storage targets

1x QSFP28



The following system specs are recommended minimum

PCIe slot: Available 16-Lane PCI-Express slot Gen 4.0 orlater

Processor: Quad Core 3.0GHz or higher

RAM: 4GB memory or higher


Operating systems supported

Windows 11

Windows Server 2016/2019/2022

Linux 3.16 or later

Package Contents

1 x PCIe 100G QSFP28 Ethernet Adapter

1 x User Manual
