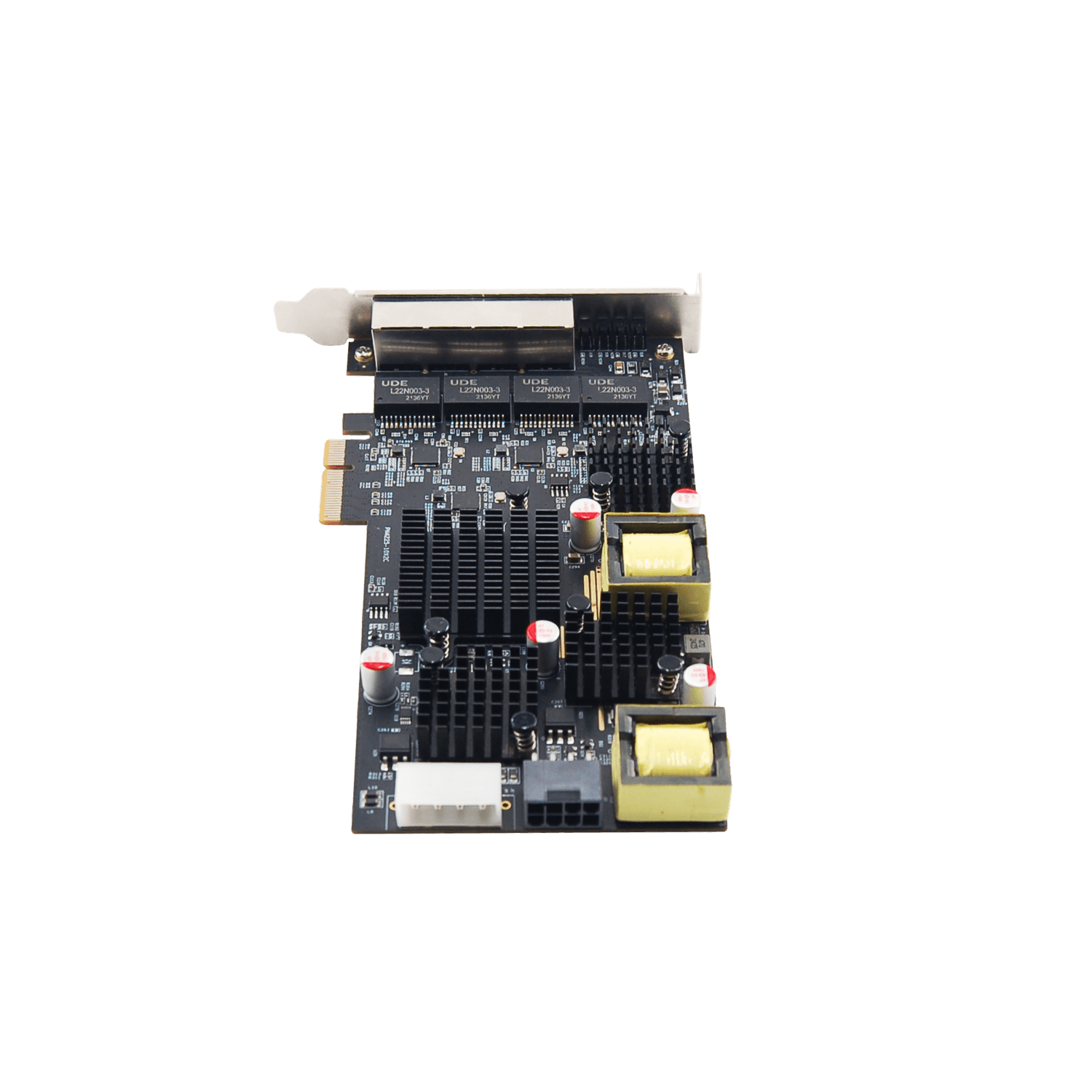

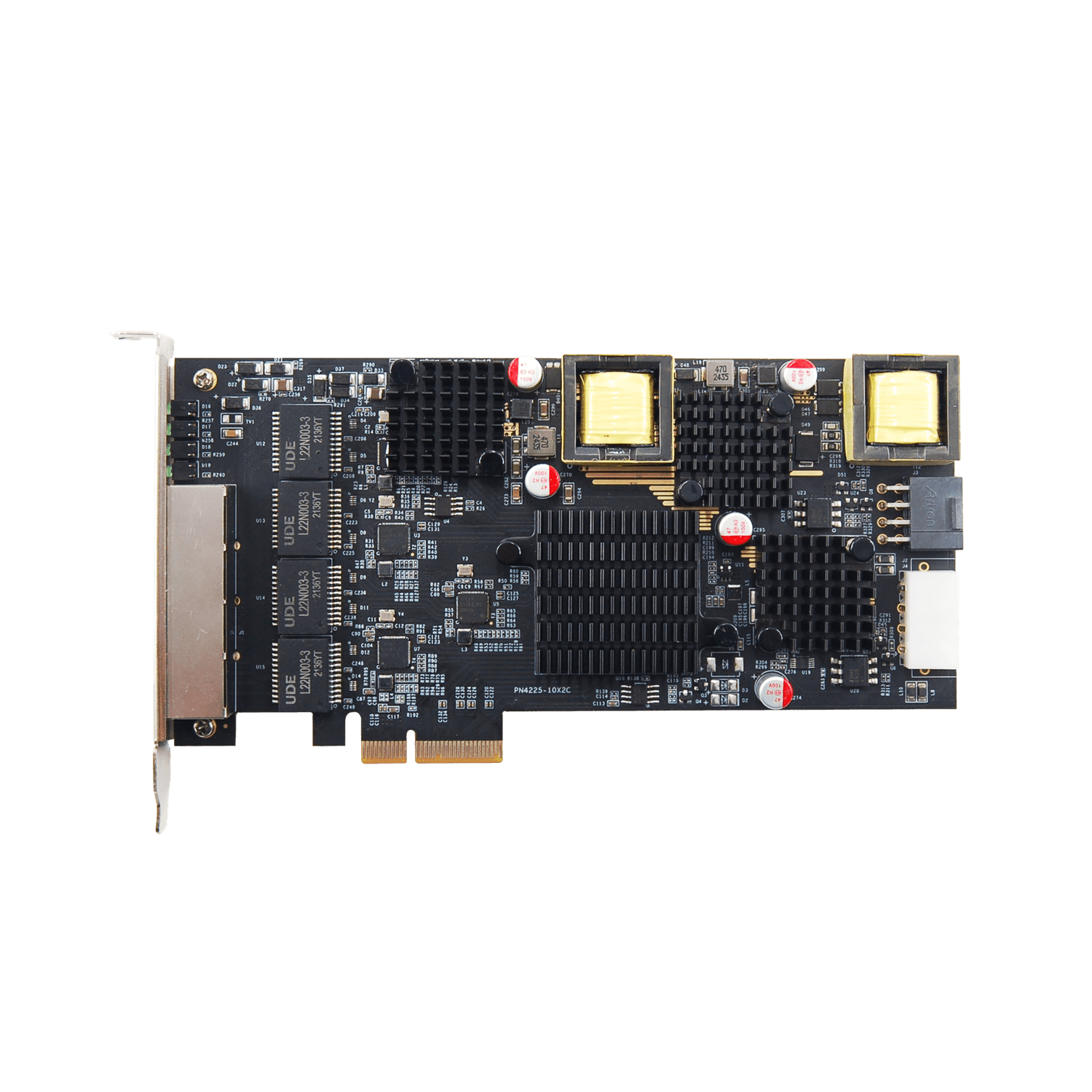

N-970 Intel PCIe 4-Port 2.5G 4-Speed Multi-Gigabit PoE Network Adapter

Get a Quote ✎

2024/08/21

4x 2.5GbE RJ45 Ports
PoE 30W per port
PCIe 2.1 x4 Form Factor

Ordering Code: N-970
Part No: NE-D37-2410-00-00012
Solution: Intel I226-V

This PCIe 4-port 2.5GbE Ethernet adapter offers network connections with data rates up to 2.5Gbps and delivers up to 30W of PoE power per port. Featuring Intel I226 Ethernet controller, the N-970 ensures high reliability and performance, making it ideal for various IPC and Server applications.

Features

PCIe Gen2 x4 form factor
Supports 4-speed 2.5G/1G/100M/10Mbps auto negotiation
Supports Wake-On-LAN (WoL)
Up to 9KB jumbo frame
Checksum and TSO offloading
Supports PXE and UEFI Preboot
PoE Type 2 PSE supports up to 30W per port
Compliant with IEEE 802.3af/at standards
Supports Type 1 and 2 PD devices
Support Low Profile
1x PoE LED Indicator
1x Link Speed LED Indicator per port
1x Link/Activity LED Indicator per port

Ordering Code	N-970
Description	Intel PCIe 4-Port 2.5G 4-Speed Multi-Gigabit PoE Network Adapter
Solution	Intel I226-V
Form Factor	PCIe 2.1 x4
Bus Width	x4 lane PCI Express
PoE Power Budget	30W Per Port
OS Driver Support	Windows 11/10(64-bit) Linux kernel 5.8 or later
Connectors	4x 2.5GbE RJ45 Ports 1x ATX 2x4 power input 1x Molex LP4 power input
Data Rates	2.5Gb/1Gb/100Mb/10Mb Ethernet
Support Low-Profile Bracket	No
Operating Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
EMC Standards	CE, FCC
Dimensions	203.3L x 120.9W x 21.6H mm
Package Contents	1x Intel PCIe 4-Port 2.5G 4-Speed Multi-Gigabit PoE Network Adapter 1x User Manual
Packing Information	Retail Box Packing 40 pcs/Carton Measurment: 60L x 48.5W x 34.5H cm
