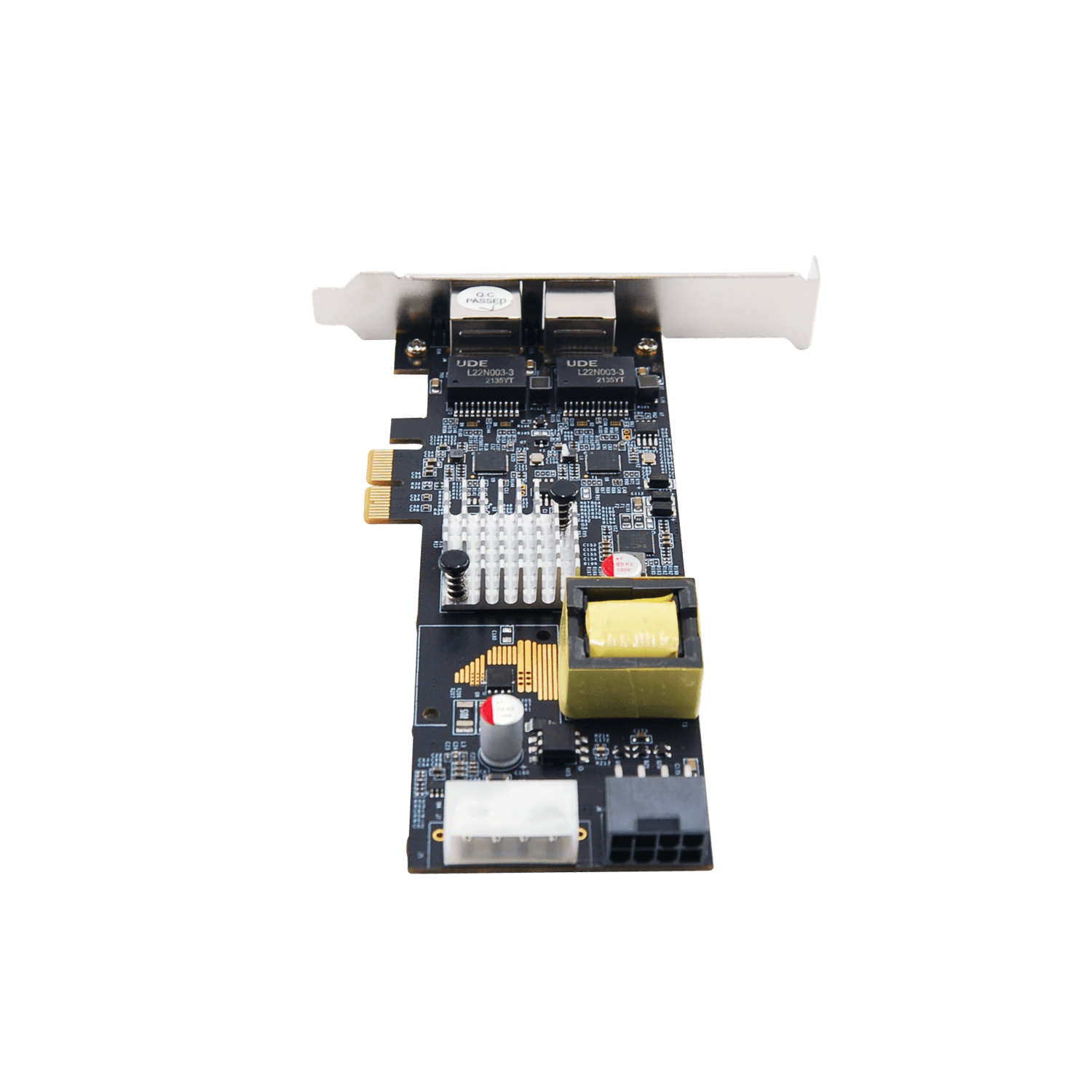

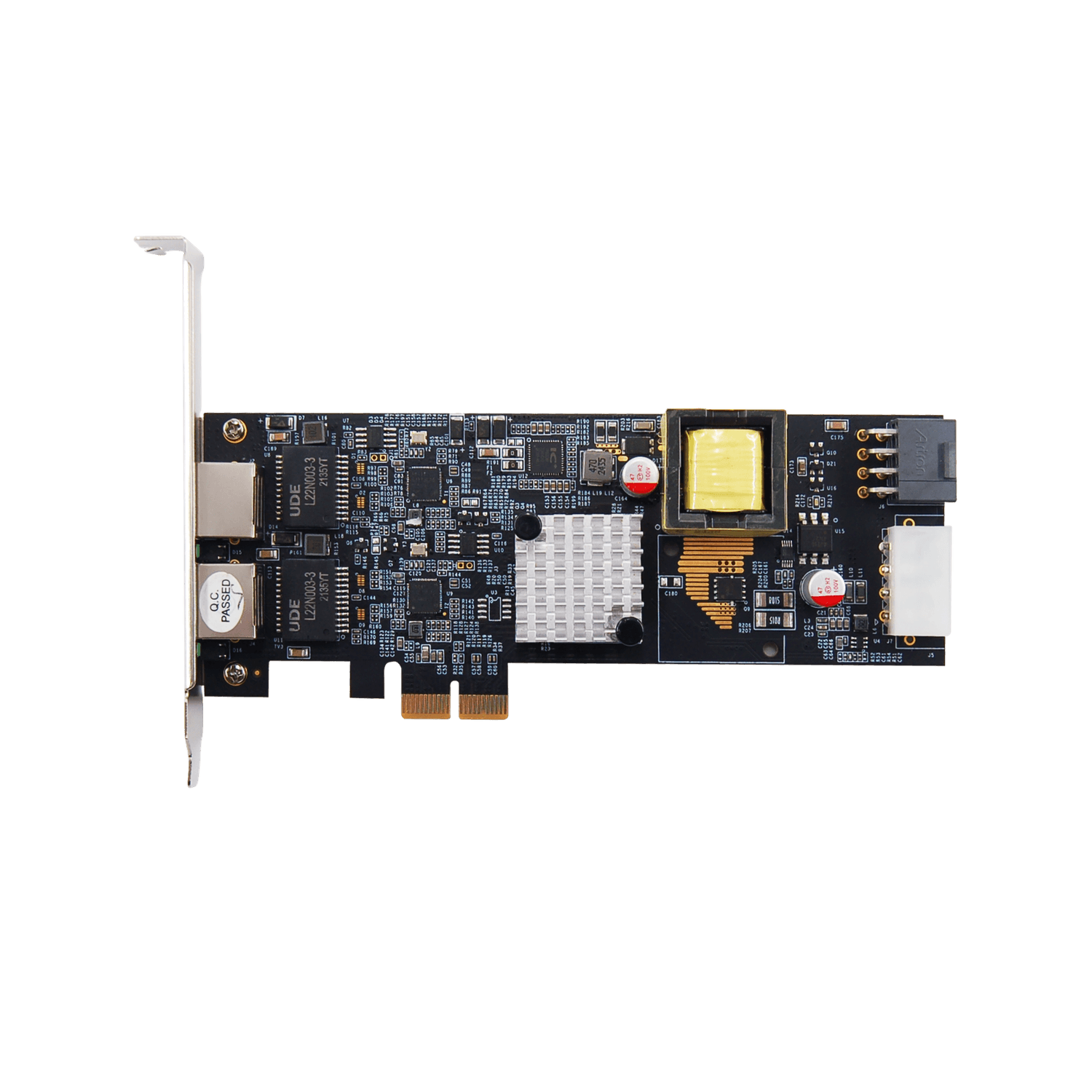

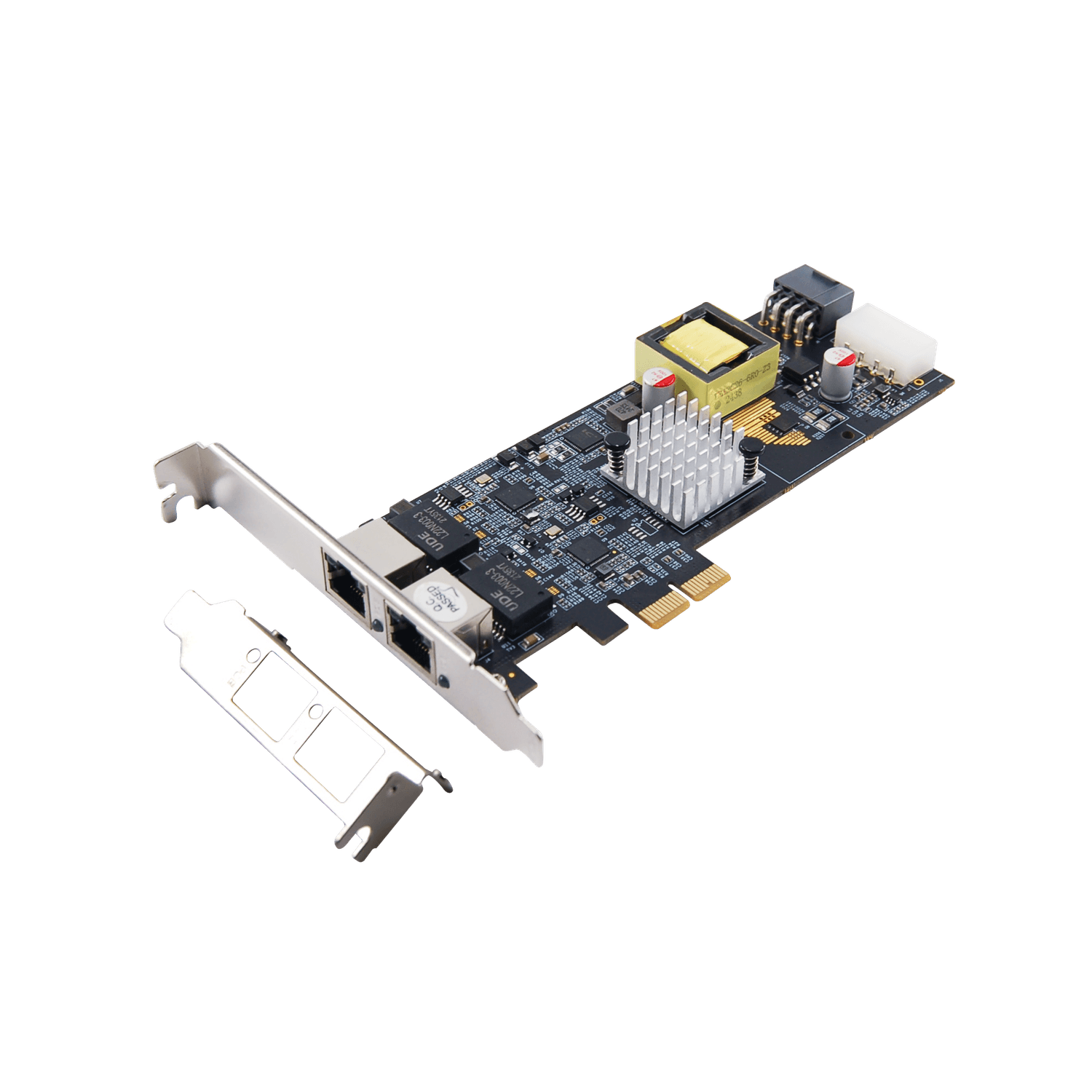

N-930 Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit PoE Network Adapter

Get a Quote ✎

2024/08/21

2x 2.5GbE RJ45 Ports
PoE 30W Per Port
PCIe 2.1 x2 Form Factor

Ordering Code: N-930
Part No: NE-D30-2220-00-00012
Solution: Intel I225-V

This PCIe 2-port 2.5GbE Ethernet adapter offers network connections with data rates up to 2.5Gbps and delivers up to 30W of PoE power per port. Featuring Intel I225 Ethernet controller, N-930 ensures high reliability and performance, making it ideal for various IPC and Server applications.

Features

Designed to meet PCI Express Specification Revision 2.1 with up to 5.0 GT/s
Add two 10M/100M/1G/2.5Gbps compatible RJ-45 Ethernet ports
Support IEEE 802.1Q VLAN tagging
Support IEEE 802.3bz (2.5GBase-T)
Support Full Duplex flow control (IEEE 802.3x)
Support WOL
Support UEFI Preboot
Support jumbo frame to 9K bytes
Support PoE Type 2 PSE up to 30W per port
Support Type 1 and 2 PD devices
Support Low Profile
1x PoE LED Indicator
1x Link Speed LED Indicator per port
1x Link/Activity LED Indicator per port

Ordering Code	N-930
Description	Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit PoE Network Adapter
Solution	Intel I225-V
Form Factor	PCIe 2.1 x2
Bus Width	x2 lane PCI Express
PoE Power Budget	30W Per Port
OS Driver Support	Windows 11/10(64-bit) Linux kernel 5.8 or later
Connectors	2x 2.5GbE RJ45 Ports 1x ATX 2x4 power input 1x Molex LP4 power input
Data Rates	2.5Gb/1Gb/100Mb/10Mb Ethernet
Support Low-Profile Bracket	Yes
Operating Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
EMC Standards	CE, FCC
Dimensions	180.3L x 120.9W x 21.6H mm
Package Contents	1x Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit PoE Network Adapter 1x Low-Profile Bracket 1x User Manual
Packing Information	Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm
