U-880 PCIe Dual Bus USB 3.0 4-Port Host AdapterEOL

Get a Quote ✎
2014/07/17
  • 4x USB 5Gbps Type-A Ports
  • Total Bandwidth 10Gbps
  • Ordering Code: U-880
  • Part No: IE-N54-1540-00-00012
  • Solution: PEX8608+uPD720202 x2

U-880 USB 3.0 4-Port Dual Bus PCIe Card is a high performance HBA. Performance is improved by using independent channels. 5Gbps per 2 ports is twice as fast as traditional single bus USB 3.0 4-Port card. Total bandwidth is 10Gbps. It supports USB Battery Charging Rev. 1.2 which will charge BC 1.2 compatible device with current up to 1.5A.

Features

  • PCI-Express 2.0x4
  • Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 10Gb/s
  • Support USB Battery Charging Specification Revision 1.2
  • Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
  • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
  • Supports the following speed data rates as follows:
  • Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
  • Supports 4 downstream ports for all speeds
  • Built-in 4-pin power connector for receiving extra power supply from system
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Ordering CodeU-880
DescriptionPCIe Dual Bus USB 3.0 4-Port Host Adapter
SolutionPEX8608+uPD720202 x2
Form FactorPCIe 2.0 x4
Bus Widthx4 lane PCI Express
OS Driver SupportWindows XP/Vista/7/2008 R2/8/8.1/10 (32/64 bit) Linux 2.6.31 or later
Total Bandwidth10 Gbps
Connectors4x USB 5Gbps Type-A Ports
Data Rates5Gbps
Operating Temperature0℃ – 60℃
Storage Temperature-10℃ – 70℃
EMC StandardsCE, FCC
DimensionsN/A

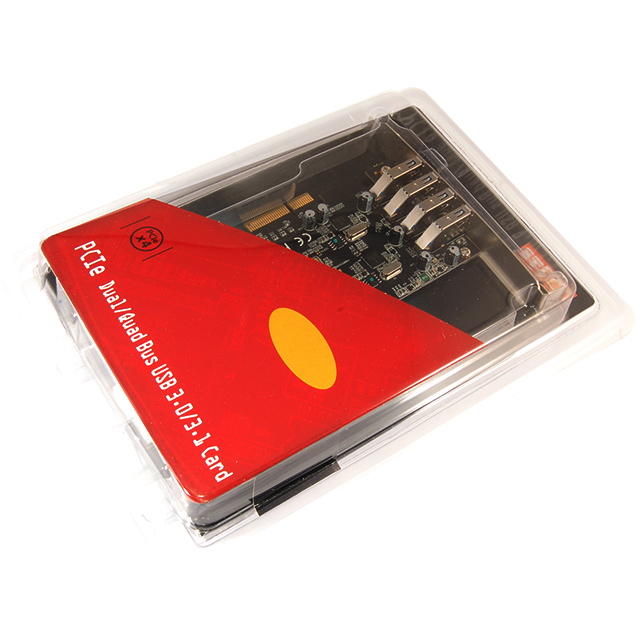

Package Contents1x PCIe Dual Bus USB 3.0 4-Port Host Adapter 1x User Manual
Packing InformationRetail Box Packing 40 pcs/Carton Measurment: 56.5L x 36.1W x 43H cm

Manual :

U-880 User Manual 2014/07/17
↧ Download

Driver :

720201_720202_u3_driver.zip 2014/07/17
↧ Download
