U-1600 PCIe Dual Bus USB 10Gbps 4-Port Host AdapterEOL

Get a Quote ✎
2016/12/26
  • 4x USB 10Gbps Type-A Ports
  • Total bandwidth 20Gbps
  • PCIe 2.0 x4 Form Factor
  • Ordering Code: U-1600
  • Part No: IE-A43-1740-00-00012
  • Solution: ASM1142

Features

  • PCI-Express 2.0x4
  • Provides four SuperSpeed+ (10Gb/s) USB 3.1 Type-A ports to support total transfer bandwidth up to 20Gb/s
  • Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
  • Supports simultaneous operation of multiple USB 3.1, USB 2.0 and USB 1.1 devices
  • Supports the following speed data rates as follows:
  • Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
  • Supports 4 downstream ports for all speeds
  • Built-in 4-pin power connector for receiving extra power supply from system
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Ordering CodeU-1600
DescriptionPCIe Dual Bus USB 10Gbps 4-Port Host Adapter
SolutionASM1142
Form FactorPCIe 2.0 x4
Bus Widthx4 lane PCI Express
OS Driver SupportWindows 7/8.x/10 (32/64 bit) Mac OS X 10.10.5 or higher Linux Kernel 4.6 or later
Total Bandwidth20 Gbps
Connectors4x USB 10Gbps Type-A Ports
Data Rates10Gbps
Operating Temperature0℃ – 60℃
Storage Temperature-10℃ – 70℃
EMC StandardsCE, FCC
DimensionsN/A

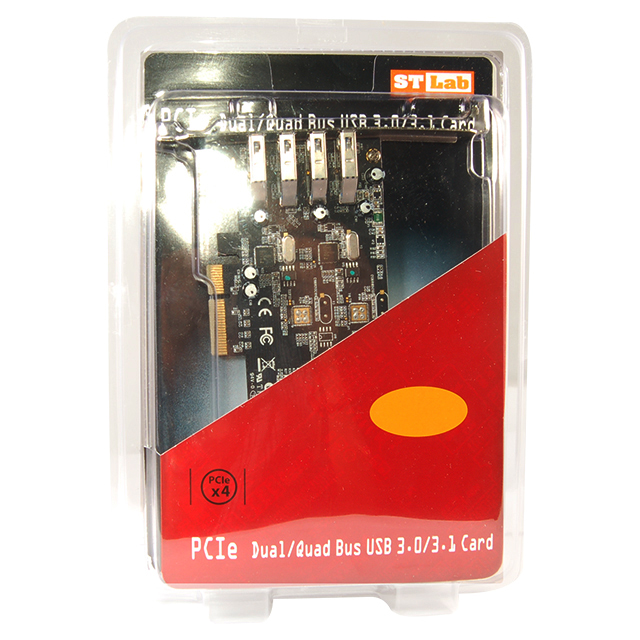

Package Contents1x PCIe Dual Bus USB 10Gbps 4-Port Host Adapter 1x User Manual
Packing InformationN/A

Manual :

U-1600 User Manual 2016/12/26
↧ Download

Driver :

ASM1142_2142.rar 2024/04/26
↧ Download
