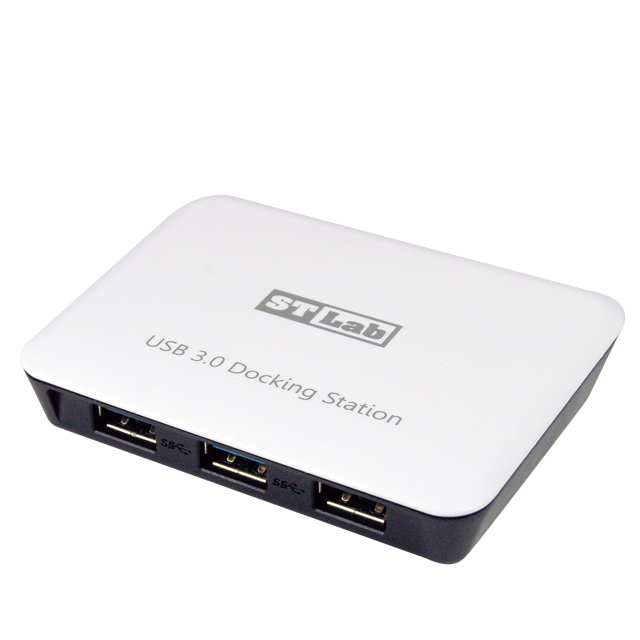

U-810 USB 3.0 Hub + Gigabit Ethernet Docking Station

Name: U-810 USB 3.0 Hub + Gigabit Ethernet Docking Station
Brand: ST Lab
SKU: U-810

Get a Quote ✎

2013/12/09

Features

General
Provides three USB 3.0 ports and one RJ-45 Gigabit Ethernet networking port
Compliant with Universal Serial Bus 3.0 Specification, Revision 1.0
Compatible with USB Specification, Revision 2.0
USB 3.0 Hub
Up to 5Gbps data transfer rate
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Built-in DC jack power connector for receiving extra power from power adapter
Gigabit Ethernet
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.3az (Energy Efficient Ethernet) 10/100/1000M data auto-negotiation
LEDs indicate the status of Power status and Ethernet connection
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
Supports crossover detection and auto-correction
Supports advanced link down power saving when Ethernet cable is unplugged
Supports Wake-on-LAN
Supports jumbo frame

Ordering Code	U-810
Description	USB 3.0 Hub + Gigabit Ethernet Docking Station
Solution	VL811P+AX88179
Bus Type	USB 5Gbps
OS Driver Support	Windows XP/Vista/7/8 (32/64 bit) macOS X 10.6/10.7/10.8
Connectors	1x 1GbE RJ45 3x USB 5Gbps Type-A Ports
Data Rates	1Gb/100Mb/10Mb Ethernet USB 5Gbps
Operating Temperature	0℃ – 45℃
Storage Temperature	-10℃ – 50℃
EMC Standards	CE, FCC
Dimensions	91.5L x 65.7W x 18.7H mm
Package content	1x USB 3.0 Hub + Gigabit Ethernet Docking Station 1x USB 5Gbps Type-A to Micro-B Cable 1x User Manual 1x 5V DC Power Adapter (Optional)
Packing Information	Retail Box Packing 40 pcs/Carton Measurment: 54L x 32.3W x 33.8H cm G.W: 12.8 Kg ; N.W: 11.8 Kg
