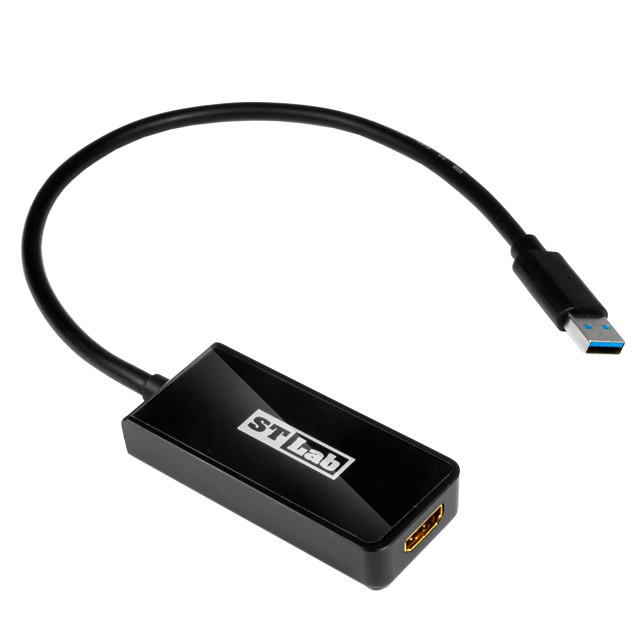

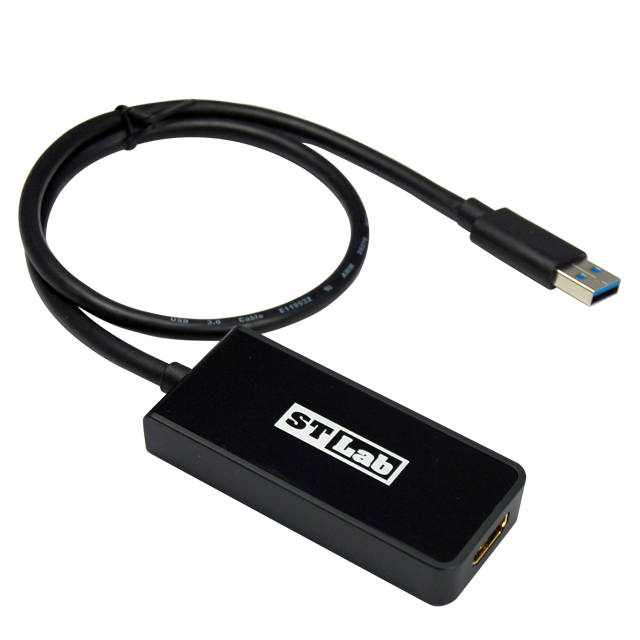

U-740 USB 3.0 to HDMI™ AdapterEOL
Get a Quote ✎
2013/12/24
- HDMI™ Port
- Resolutions 2048x1152 @ 50Hz
- Bus Type USB 3.0 5Gbps
- Ordering Code: U-740
- Part No: U3-D11-V410-11-00012
- Solution: DL3500
Features
- Add-on monitor, LCD or projector through USB 3.0 or USB 2.0 connectivity
- Compatible with Windows power management hibernate and suspend modes
- Supports widescreen aspect ratio of 16:9 Full HD 1080P video streaming
- Supports resolutions up to 2048x1152 @ 50Hz
- Supports desktop display mirror, extended, and screen rotation modes
- Support Microsoft Windows XP, Vista, 7 and 8; Mac OS X 10.6.8/10.7.5/10.8.3
- Low power consumption via USB Bus Power Supply
- Up to six USB 3.0 graphic adapters working simultaneously
- Audio output through HDMI
| Ordering Code | U-740 |
|---|---|
| Description | USB 3.0 to HDMI™ Adapter |
| Solution | DL3500 |
| Bus Type | USB 3.0 5Gbps |
| OS Driver Support | Windows XP (32bit) Vista/7/8 (32/64bit) macOS X 10.6.8/10.7.5/10.8.3 |
| Connectors | 1x HDMI™ Port 1x USB 5Gbps Type-A Male Upstream Port |
| Resolution | 2048 x 1152 @ 50Hz |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 80.3L x 35W x 15.5H mm | Cable 500 mm |
| Package content | 1x USB 3.0 to HDMI™ Adapter 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 44.5L x 42W x 29.3H cm G.W: 6 Kg ; N.W: 5 Kg |
Manual :
U-740 User Manual
↧ DownloadDriver :
DL-3xxxDL-5xxxDL-6xxx_Windwos.zip
↧ DownloadDL-3xxxDL-5xxxDL-6xxx_macOS.zip
↧ Download
