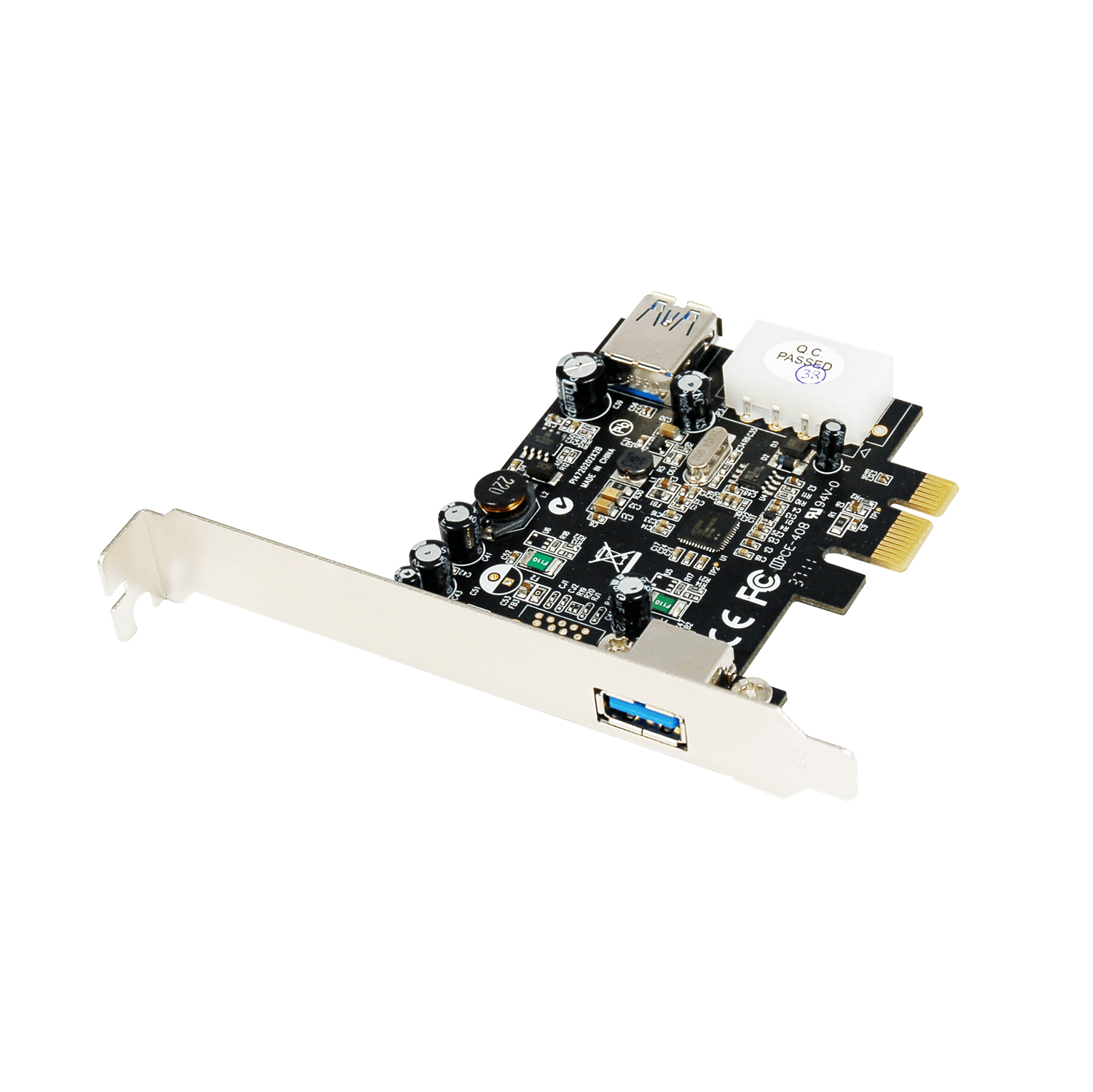

U-720 PCIe USB 3.0 2-Port(1+1) Host Adapter
Get a Quote ✎- 1x USB 5Gbps Type-A Port
- 1x Internal USB 5Gbps Type-A Port
- PCIe 2.0 x1 Form Factor
- Ordering Code: U-720
- Part No: IE-N54-1111-00-00012
- Solution: uPD720202
Engineered to deliver reliable, high-speed external and internal connectivity for enterprise desktop systems and industrial PCs, the U-720 PCIe USB 3.0 2-Port Card expands host systems with two high-bandwidth USB Type-A ports. Powered by the industry-proven Renesas uPD720202 host controller, this expansion card utilizes a PCIe 2.0 x1 interface to provide data transfer speeds up to 5Gbps. Fully compliant with USB 3.2 Gen 1 standards and the Intel eXtensible Host Controller Interface (xHCI) Specification Revision 1.0, the U-720 features flexible routing via one external port and one internal port. An auxiliary 4-pin power connector ensures stable current supply, supporting USB Battery Charging Specification 1.2 alongside hot-swapping capability for dependable peripheral integration.
Features
- Fully compliant with PCI Express Base Specification Revision 2.0
- Support USB Battery Charging Specification Revision 1.2
- Single-lane (x1) PCI Express throughput rates up to 5 Gbps
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
- Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
- Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
- Supports 2 downstream ports for all speeds
- Built-in 4-pin power connector for receiving extra power supply from system
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
| Ordering Code | U-720 |
|---|---|
| Description | PCIe USB 3.0 2-Port(1+1) Host Adapter |
| Solution | uPD720202 |
| Form Factor | PCIe 2.0 x1 |
| Bus Width | x1 lane PCI Express |
| OS Driver Support | Windows XP/Vista/7 (32/64 bit) |
| Total Bandwidth | 5 Gbps |
| Connectors | 1x USB 5Gbps Type-A Port 1x Internal USB 5Gbps Type-A Port |
| Data Rates | USB 5Gbps |
| Support Low-Profile Bracket | Yes |
| Operating Temperature | 0℃ – 60℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 92.4L x 120.9W x 21.6H mm |
| Package Contents | 1x PCIe USB 3.0 2-Port(1+1) Host Adapter 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 56.5L x 36W x 43H cm G.W: 6.9 Kg ; N.W: 5.9 Kg |
