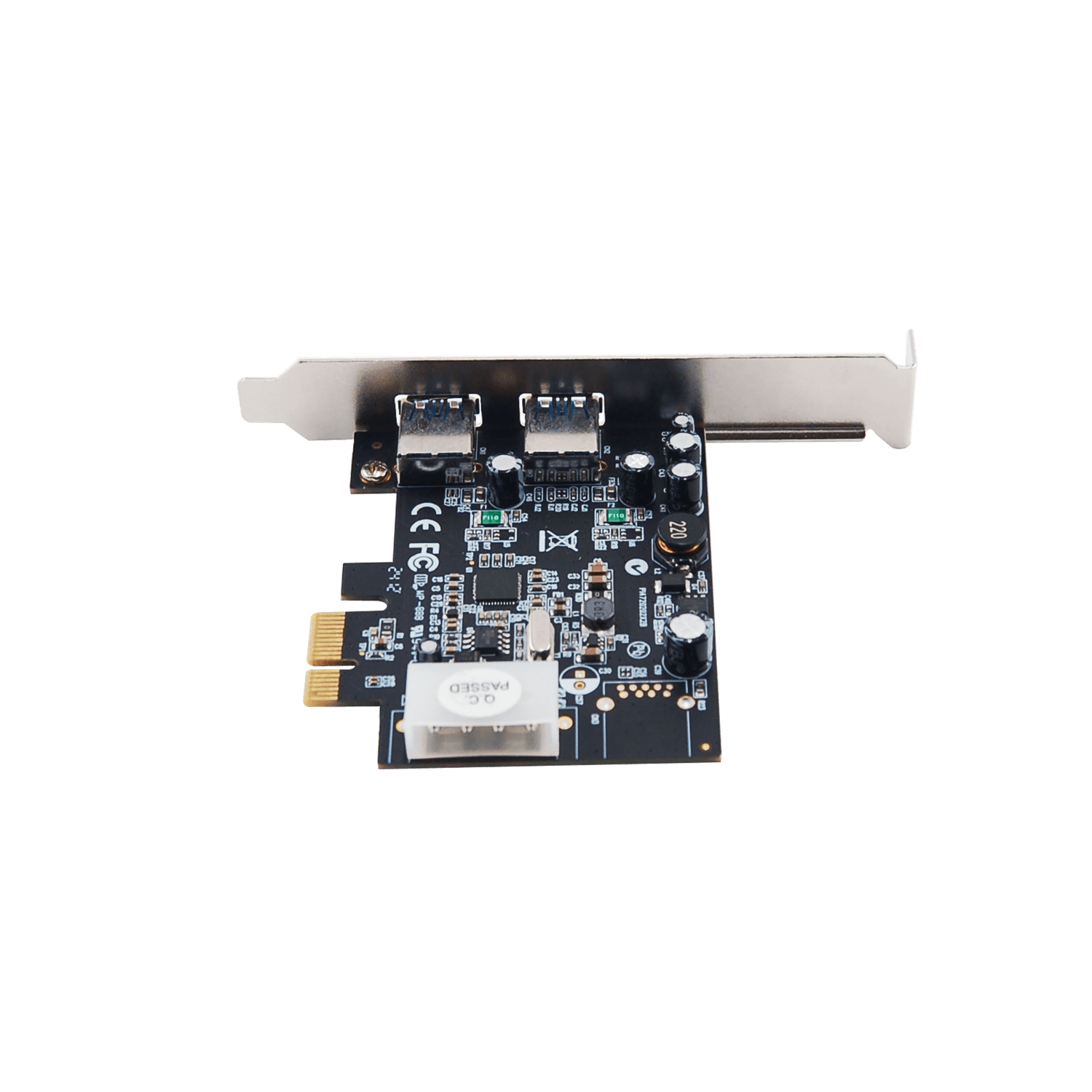

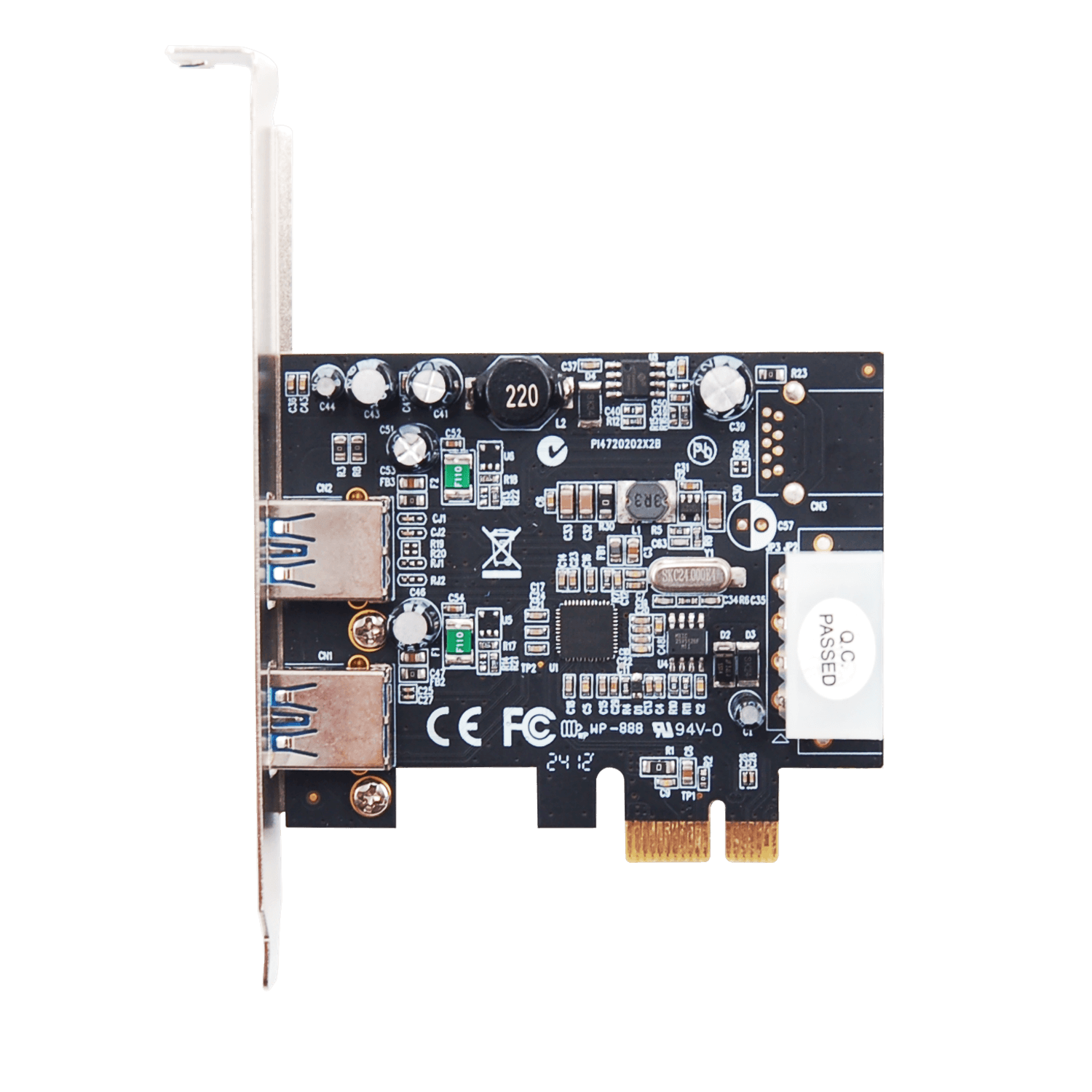

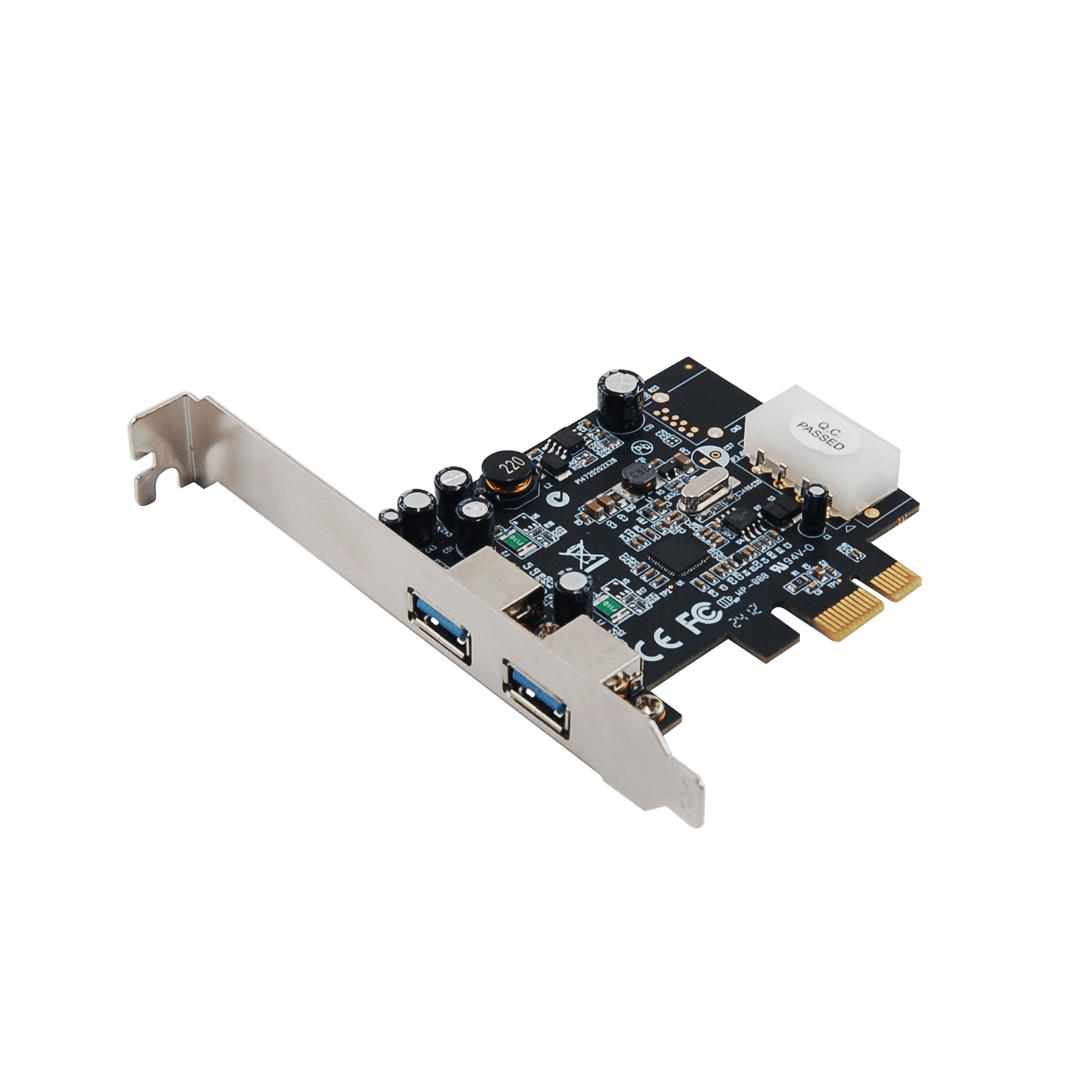

U-710 PCIe USB 3.0 2-Port Host Adapter

Engineered to deliver reliable, high-speed external connectivity for enterprise desktop systems and industrial PCs, the U-710 PCIe USB 3.0 2-Port Card expands host systems with two legacy and high-bandwidth USB Type-A ports. Powered by the industry-proven Renesas uPD720202 host controller, this expansion card utilizes a PCIe 2.0 x1 interface to provide data transfer speeds up to 5Gbps. Fully compliant with USB 3.2 Gen 1 standards and the Intel eXtensible Host Controller Interface (xHCI) Specification Revision 1.0, the U-710 features an auxiliary 4-pin power connector to supply stable current, supporting USB Battery Charging Specification 1.2 alongside hot-swapping capability. It delivers a robust, cost-effective solution for integrators requiring dependable peripheral expansion in professional workstations.

Features

• Fully compliant with PCI Express Base Specification Revision 2.0
• Support USB Battery Charging Specification Revision 1.2
• Single-lane (x1) PCI Express throughput rates up to 5 Gbps
• Compliant with Universal Serial Bus 3.0 specification Revision 1.0
• Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
• Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps)/ High-speed (480Mbps) / Super-speed (5Gbps)
• Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Supports 2 downstream ports for all speeds
• Built-in 4-pin power connector for receiving extra power supply from system
• Hot-swapping feature allows you to connect/disconnect devices without powering down the system
