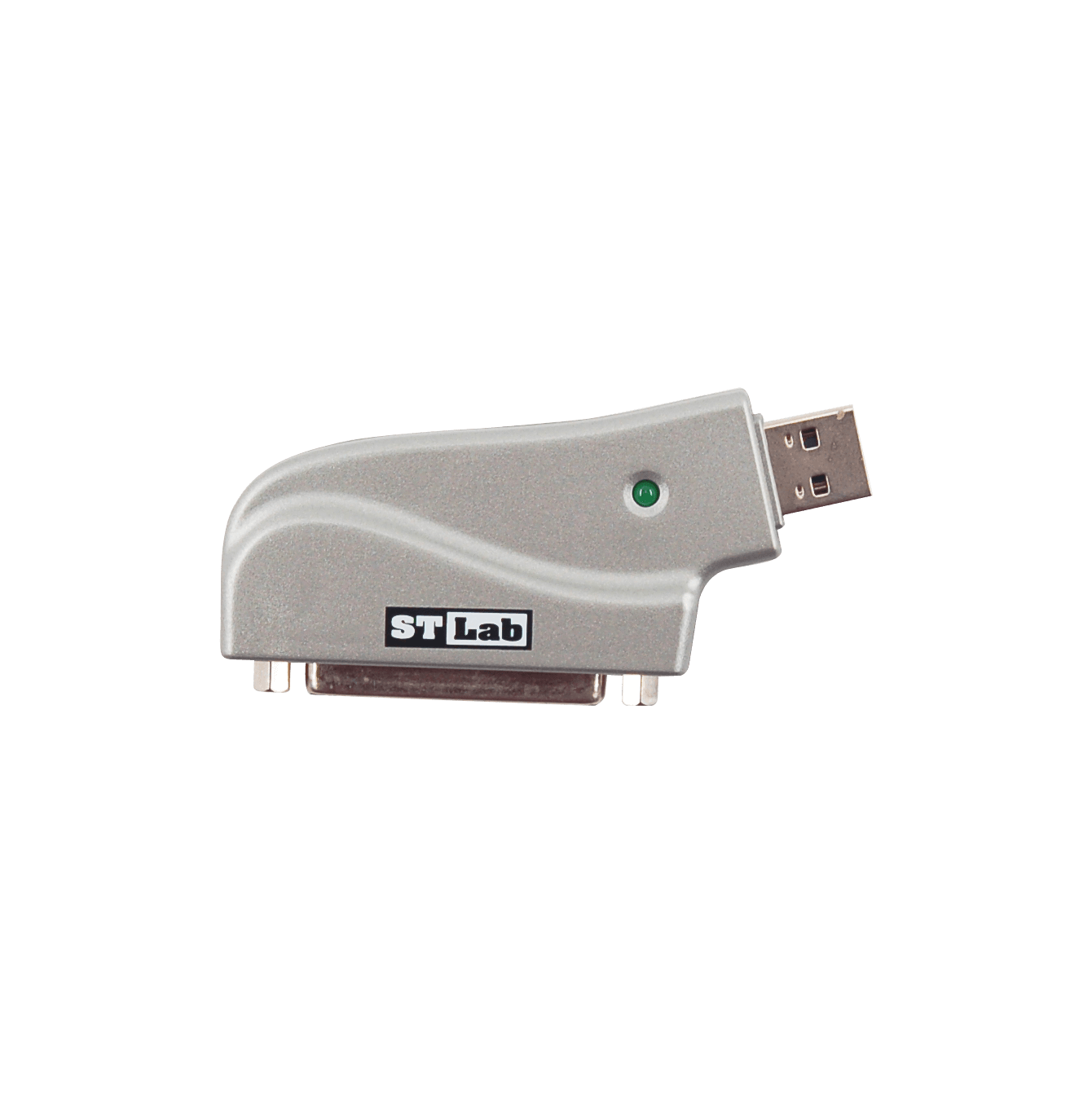

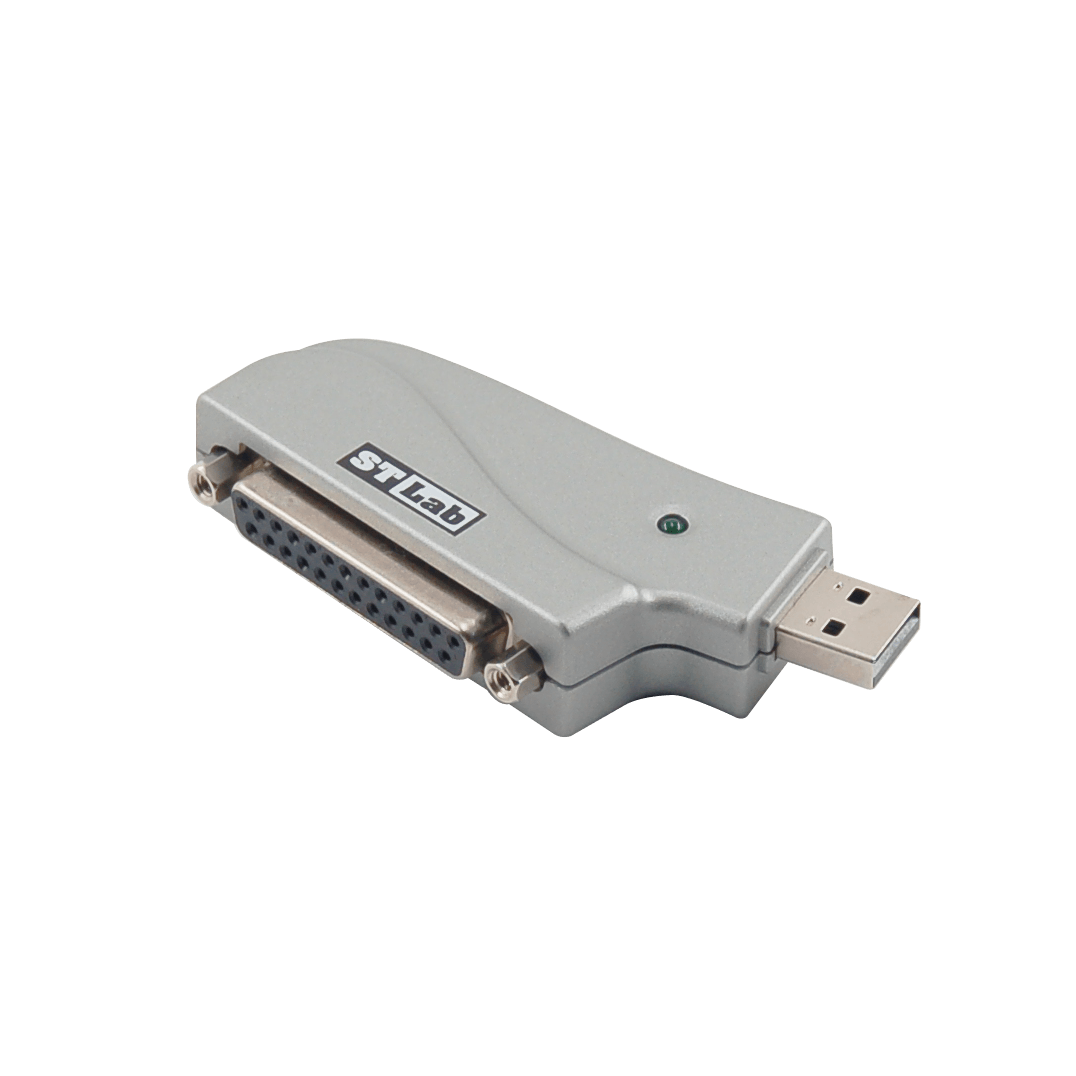

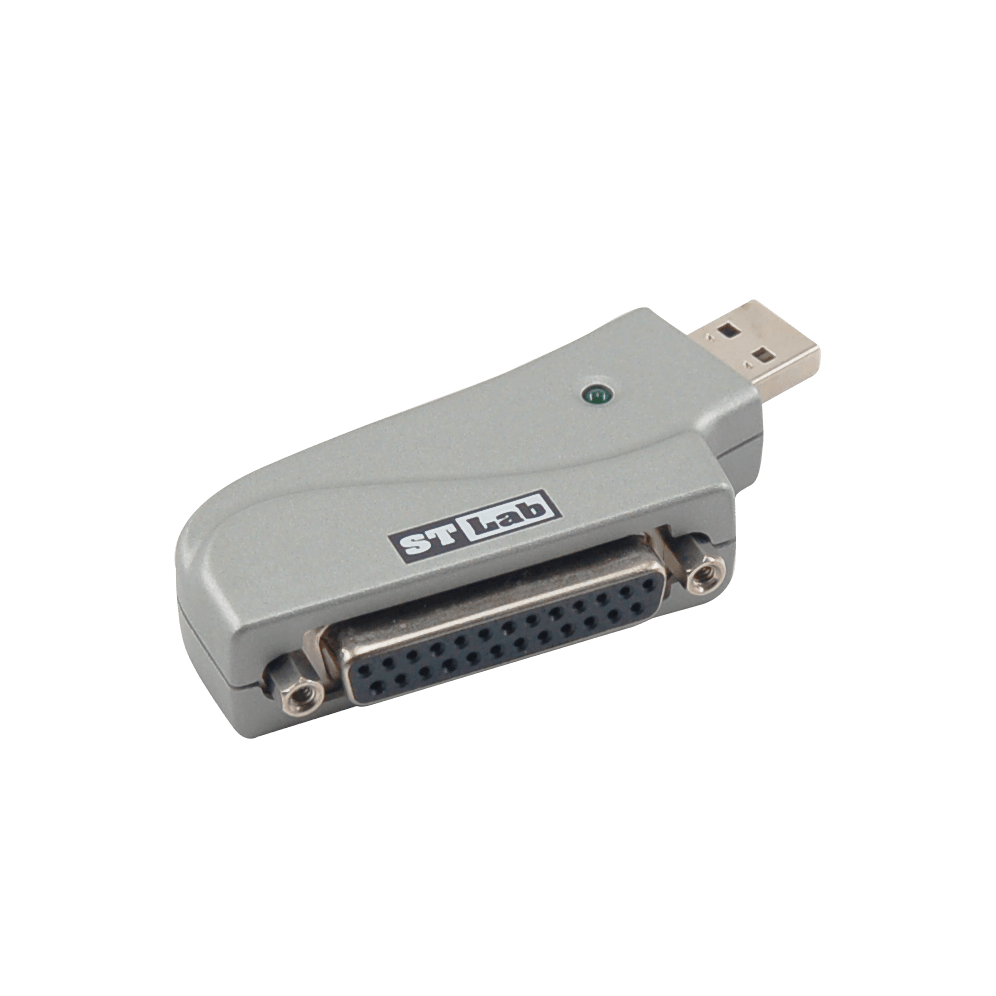

U-370 USB Dongle 1P

The U-370 USB to Parallel Adapter delivers reliable, bi-directional connectivity for modern computing environments requiring seamless integration with legacy parallel peripherals. Powered by the Prolific PL-2305 chipset and equipped with a DB25 female connector, this adapter bridges contemporary USB-enabled systems and IEEE-1284 compliant parallel devices. Fully compliant with USB 1.1 and IEEE-1284 standards, the adapter features 512 bytes of unified data buffer to optimize both upstream and downstream throughput, achieving data transfer rates up to 1.5 MB/s in ECP mode. Accompanied by robust software drivers, the U-370 provides an easy migration path for enterprise IT managers and system integrators deploying modern PCs alongside legacy printers and industrial parallel interface hardware.

Features

• Supports both USB 1.1 and 2.0 interface
• Supports wake-on-line & power management function
• No IRQ, DMA, I/O Address resources required
• Hot swappable
• Easy plug & play
• Single Printer Port Interface
