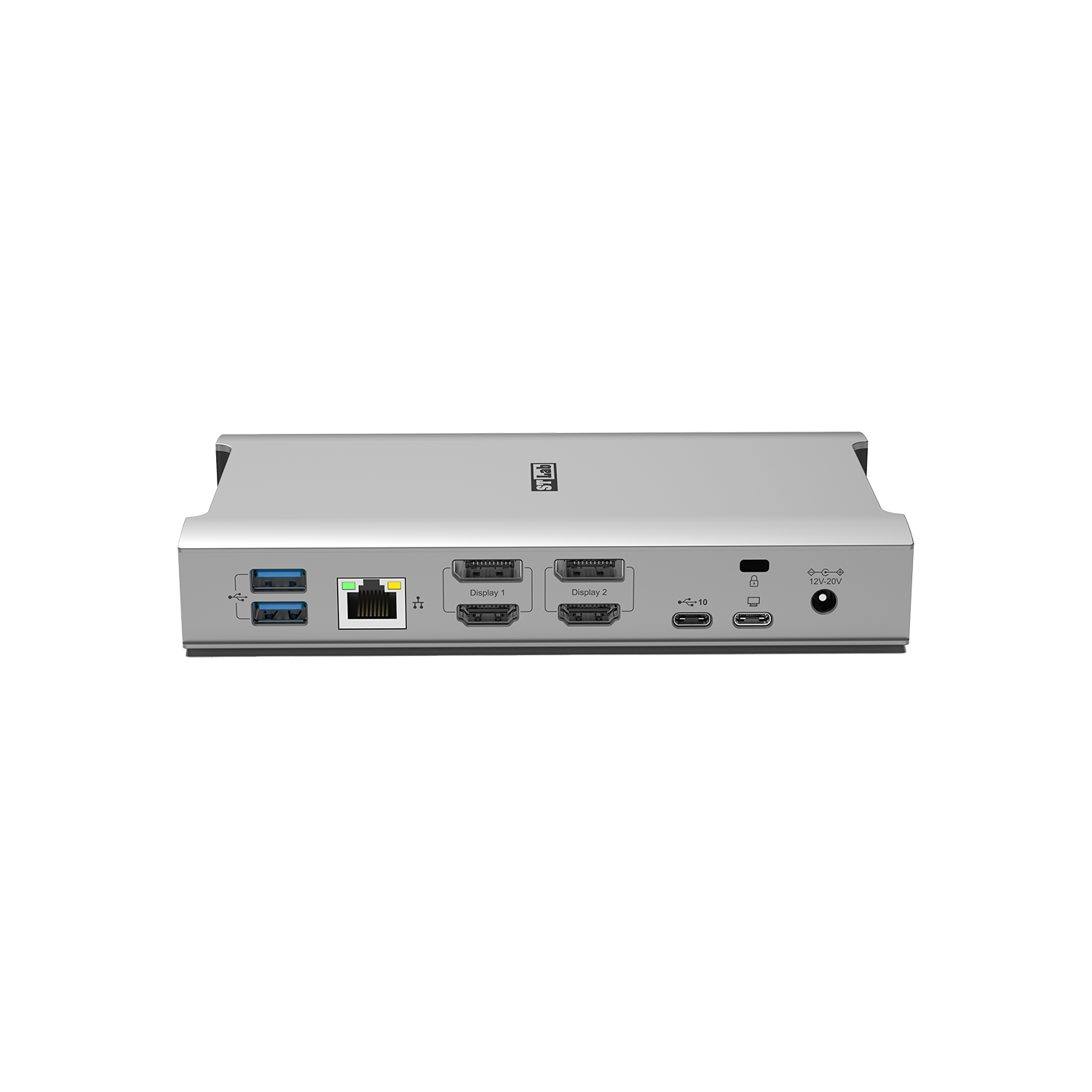

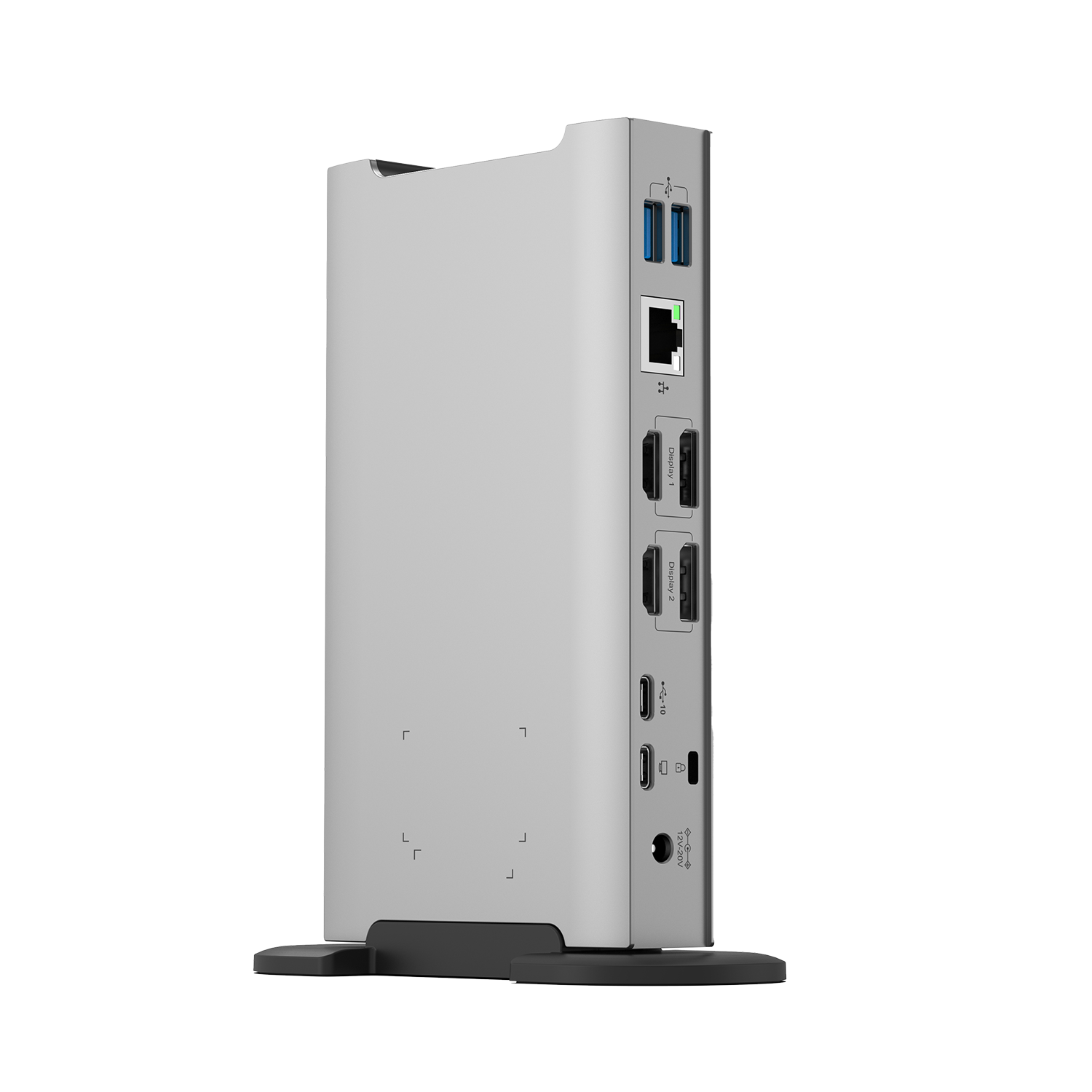

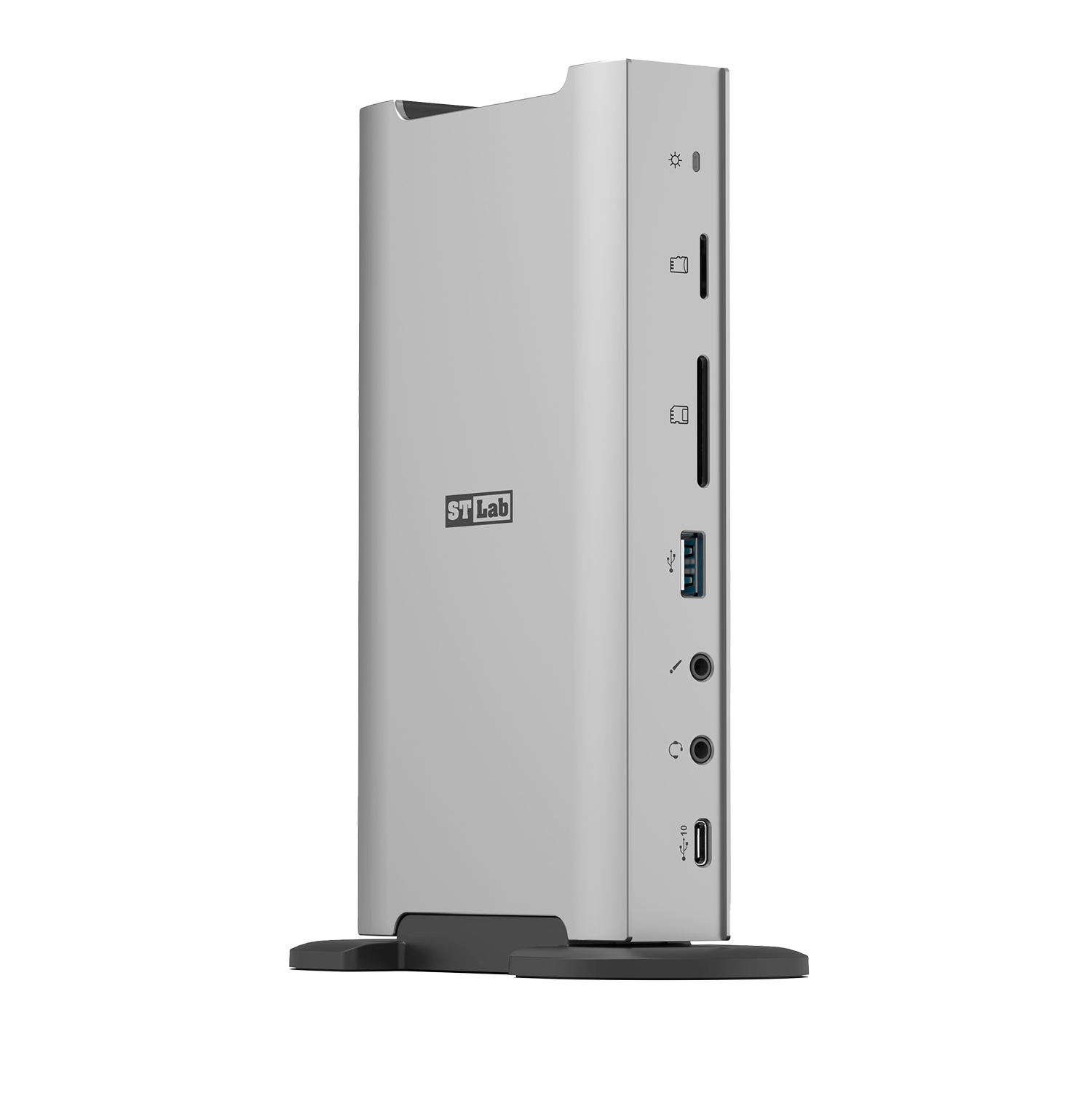

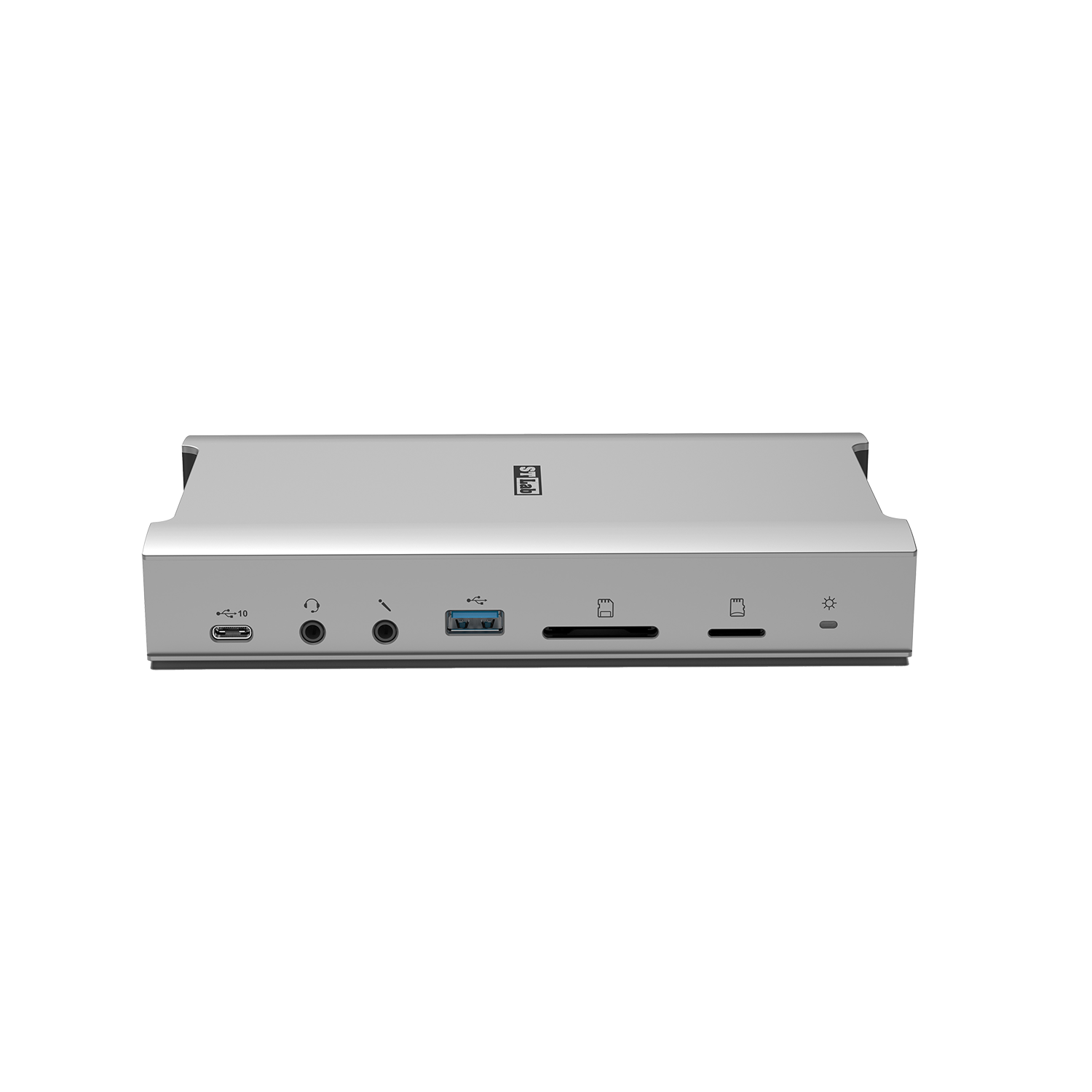

U-2640 USB Type-A 10Gbps HDMI™+DP Dual 4K Docking Station

Get a Quote ✎

2023/03/03

3x USB 10Gbps Type-A ports + 2x USB 10Gbps Type-C ports
2x 4K HDMI™ ports + 2x 4K DP ports
1x 1GbE RJ45 prot + 1x SD&microSD card reader
1x Audio out prot + 1x Mic in prot

Ordering Code: U-2640
Part No: U3-C70-DS11-11-00014
Solution: DL6950+VL822+VL817+GL3224

Ideal for designers, engineers and professionals who work with highly detailed graphics, this Dual 4K Docking Station supports dual displays with resolutions up to 4096x2160p60. It also expands the connectivity of your laptop to Gigabit Ethernet, memory cards, microphone, audio and USB peripherals through a single USB connection.

Features

Dual DisplayPort or Dual HDMI™, allowing up to two monitors for Extend, Mirror or Primary Display
Two USB 10Gbps USB Type-C ports
Three USB 5Gbps USB Type-A ports with USB BC 1.2 support
Dedicated slots for SD and microSD card reader, transferring data to and from two different cards at the same time
Audio jack to connect to headset
Mic In jack to connect to microphone
Support resolutions up to 2x 4096x2160p60
Gigabit Ethernet RJ-45 port, supports 10M/100M/1G connection

Ordering Code	U-2640
Description	USB Type-A 10Gbps HDMI™+DP Dual 4K Docking Station
Solution	DL6950+VL822+VL817+GL3224
Bus Type	USB 10Gbps
OS Driver Support	Windows 7/8.x/10/11(32/64-bit) macOS 10.6 - 10.12, 10.14 - 10.15, 11.0, 12.0 or 13.0 later Ubuntu 18.04 or later
Connectors	2x HDMI™ ports 2x DP ports 1x 1GbE RJ45 prot 1x Audio out prot 1x Mic in prot 2x USB 10Gbps Type-C ports 4x USB 10Gbps Type-A ports 1x SD card reader 1x microSD card reader
Data Rates	1Gb/100Mb/10Mb Ethernet USB 10Gbps
Resolution	4096x2160 @60Hz
Operating Temperature	0℃ – 40℃
Storage Temperature	0℃ – 55℃
EMC Standards	CE, FCC
Dimensions	180L x 100W x 31H mm
Package content	1x USB Type-A 10Gbps HDMI™+DP Dual 4K Docking Station 1x User Manual 1x USB 10Gbps A to C Cable 1x Power Adapter
Packing Information	Retail Box Packing 10 pcs/Carton Measurment: 41L x 35W x 22H cm G.W: 8.2 Kg ; N.W: 7.5 Kg
