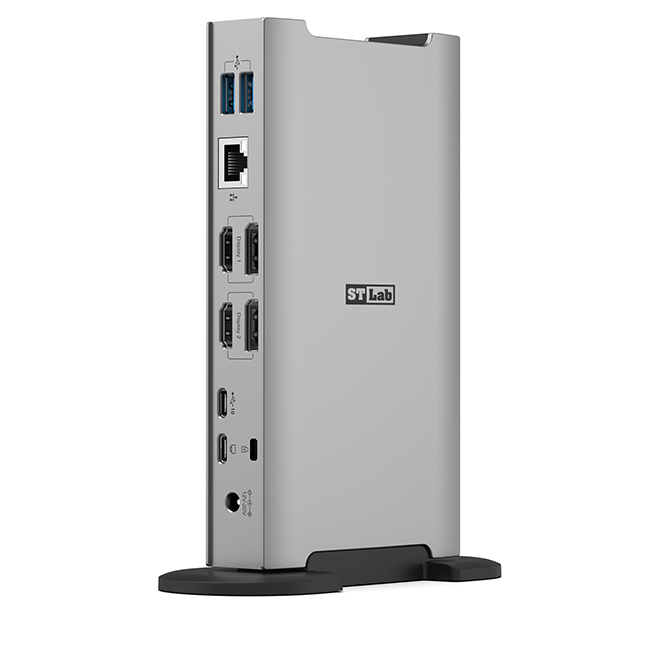

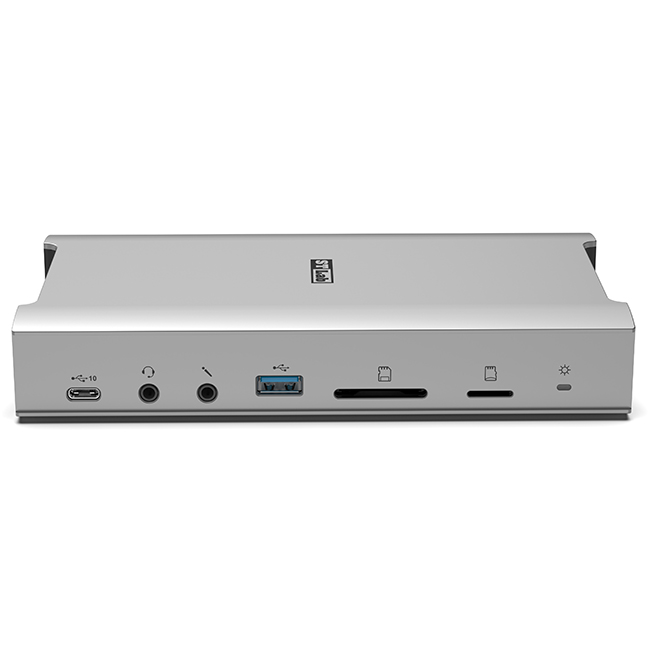

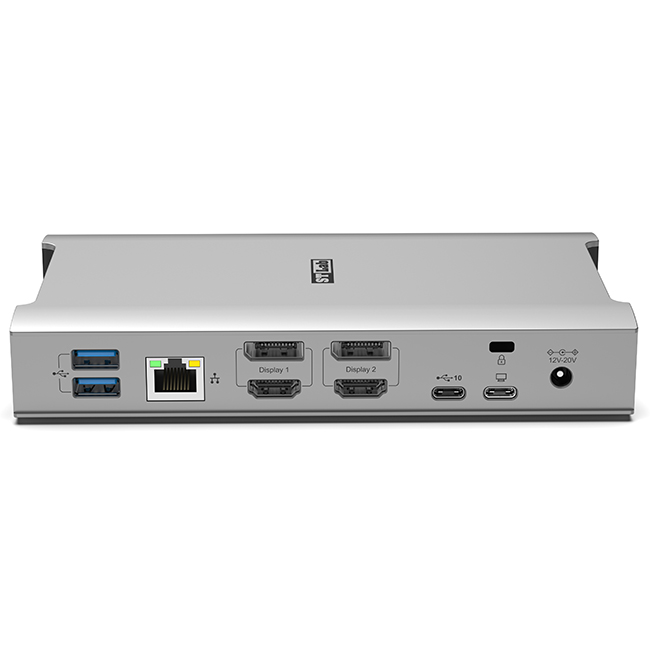

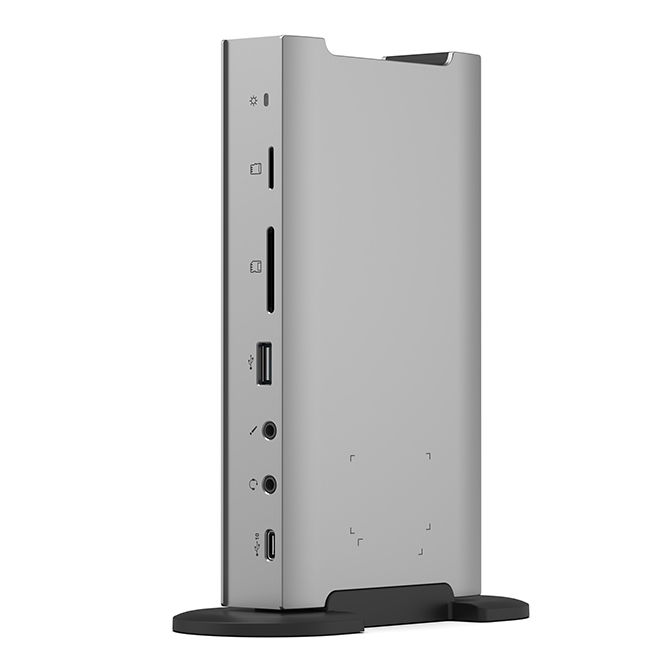

U-2540 USB Type-C 10Gbps HDMI™+DP Dual 4K Docking Station
Get a Quote ✎
2023/03/03
- 3x USB 10Gbps Type-A ports + 2x USB 10Gbps Type-C ports
- 2x 4K HDMI™ ports + 2x 4K DP ports
- 1x 1GbE RJ45 prot + 1x SDµSD card reader
- 1x Audio out prot + 1x Mic in prot
- Ordering Code: U-2540
- Part No: U3-C70-DS11-11-00012
- Solution: DL6950+VL822+VL817+GL3224
Ideal for designers, engineers and professionals who work with highly detailed graphics, this Dual 4K Docking Station supports dual displays with resolutions up to 4096x2160p60. It also expands the connectivity of your laptop to Gigabit Ethernet, memory cards, microphone, audio and USB peripherals through a single USB connection.
Features
- Dual DisplayPort or Dual HDMI™, allowing up to two monitors for Extend, Mirror or Primary Display
- Two USB 10Gbps USB Type-C ports
- Three USB 5Gbps USB Type-A ports with USB BC 1.2 support
- Dedicated slots for SD and microSD card reader, transferring data to and from two different cards at the same time
- Audio jack to connect to headset
- Mic In jack to connect to microphone
- Support resolutions up to 2x 4096x2160p60
- Gigabit Ethernet RJ-45 port, supports 10M/100M/1G connection
| Ordering Code | U-2540 |
|---|---|
| Description | USB Type-C 10Gbps HDMI™+DP Dual 4K Docking Station |
| Solution | DL6950+VL822+VL817+GL3224 |
| Bus Type | USB 10Gbps |
| OS Driver Support | Windows 7/8.x/10/11(32/64-bit) macOS 10.6 - 10.12, 10.14 - 10.15, 11.0, 12.0 or 13.0 later Ubuntu 18.04 or later |
| Connectors | 2x HDMI™ ports 2x DP ports 1x 1GbE RJ45 prot 1x Audio out prot 1x Mic in prot 2x USB 10Gbps Type-C ports 4x USB 10Gbps Type-A ports 1x SD card reader 1x microSD card reader |
| Data Rates | 1Gb/100Mb/10Mb Ethernet USB 10Gbps |
| Resolution | Dual displays : 2048X1152 Single Display : 2560X1440 or DVI: 2048X1152 |
| Operating Temperature | 0℃ – 40℃ |
| Storage Temperature | 0℃ – 55℃ |
| EMC Standards | CE, FCC |
| Dimensions | 180L x 100W x 31H mm |

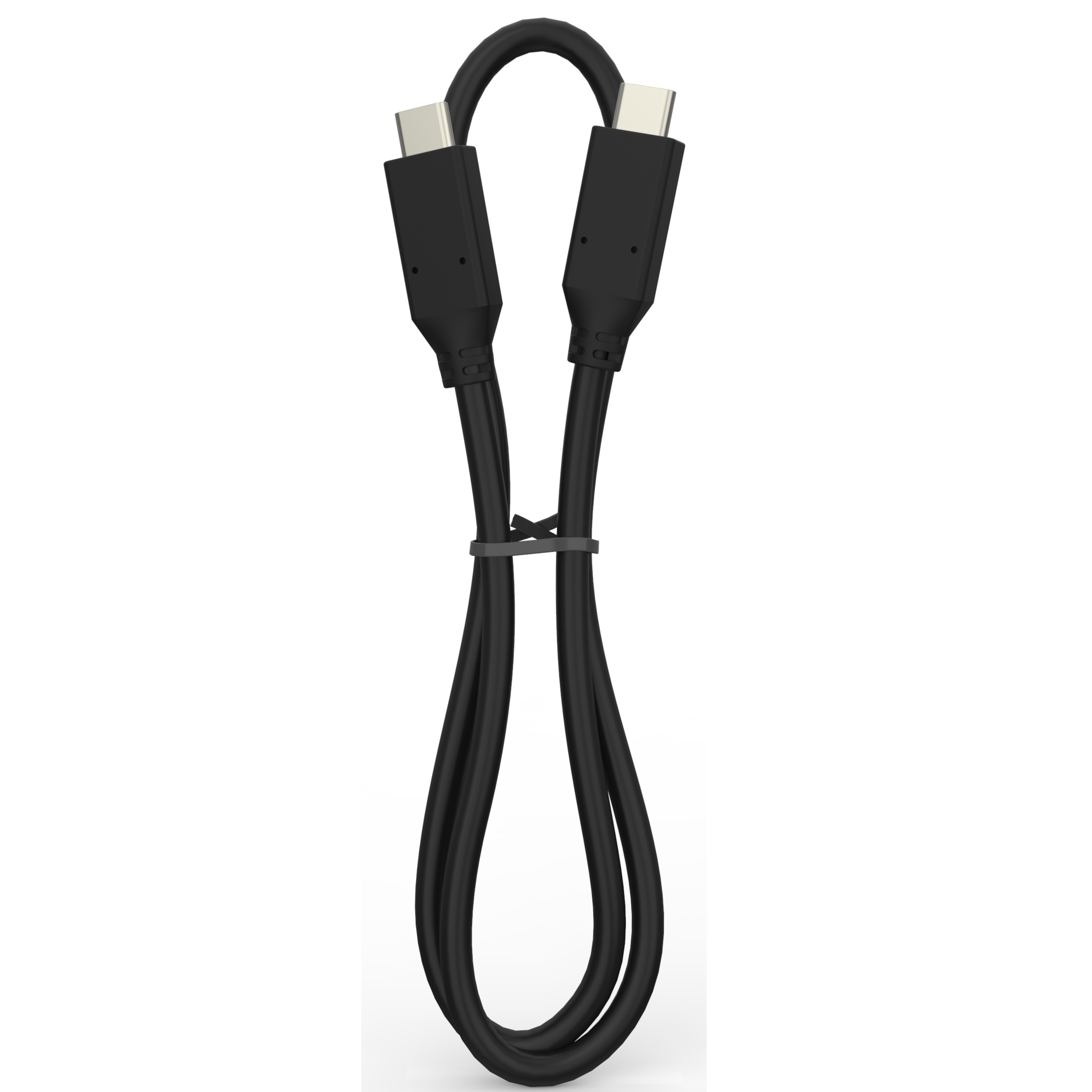

| Package content | 1x USB Type-C 10Gbps HDMI™+DP Dual 4K Docking Station 1x USB 10Gbps C to C Cable 1x Power Adapter 1x User Manual |
| Packing Information | Retail Box Packing 10 pcs/Carton Measurment: 41L x 35W x 22H cm G.W: 8.2 Kg ; N.W: 7.5 Kg |
Manual :
U-2540 User Manual
↧ DownloadDriver :
DL-3xxxDL-5xxxDL-6xxx_Linux.zip
↧ DownloadDL-3xxxDL-5xxxDL-6xxx_macOS.zip
↧ DownloadDL-3xxxDL-5xxxDL-6xxx_Windwos.zip
↧ DownloadQuestions & Answers :
Q: Why is there no display after connecting a USB Dock to an external monitor via HDMI, DisplayPort (DP), or VGA
Read More ›
