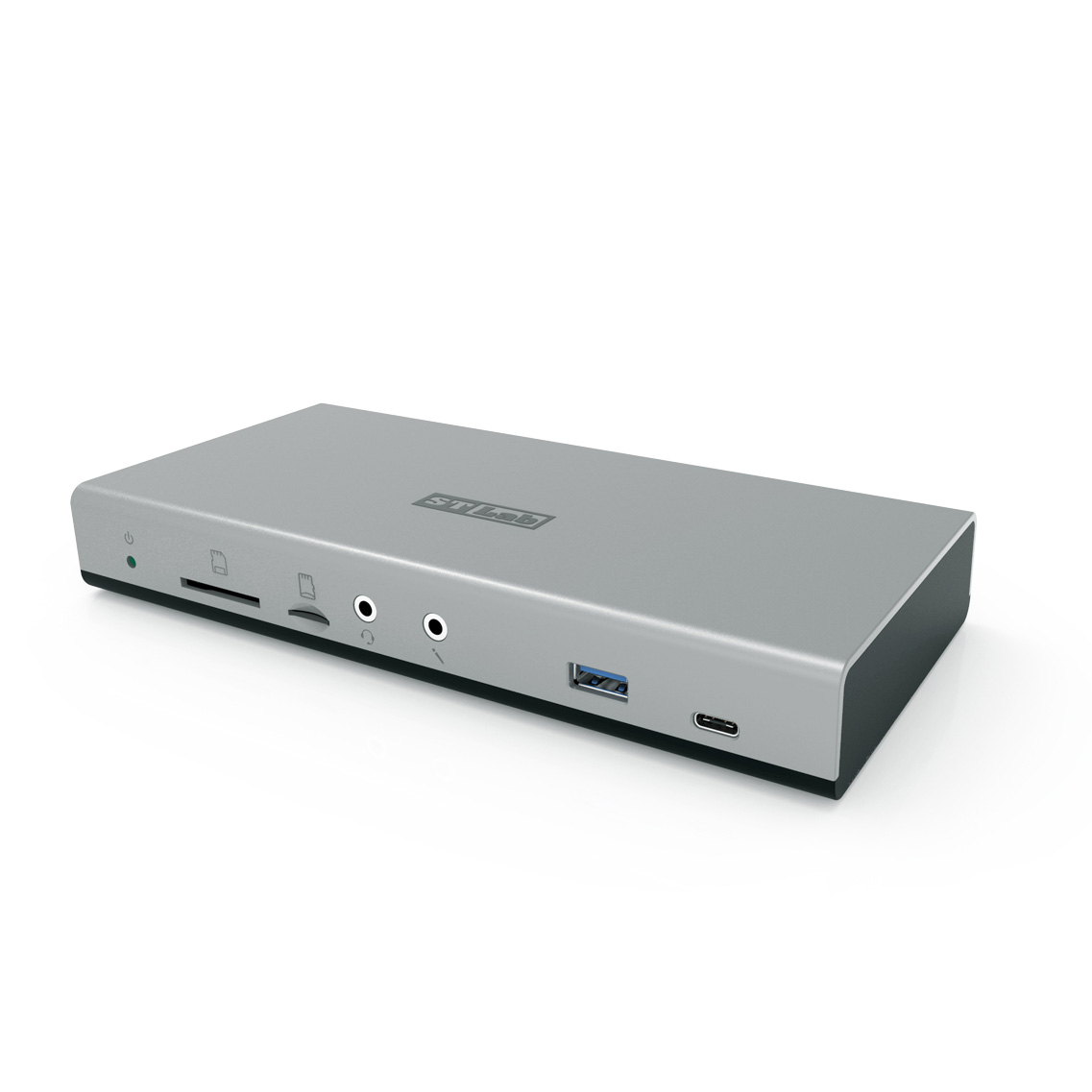

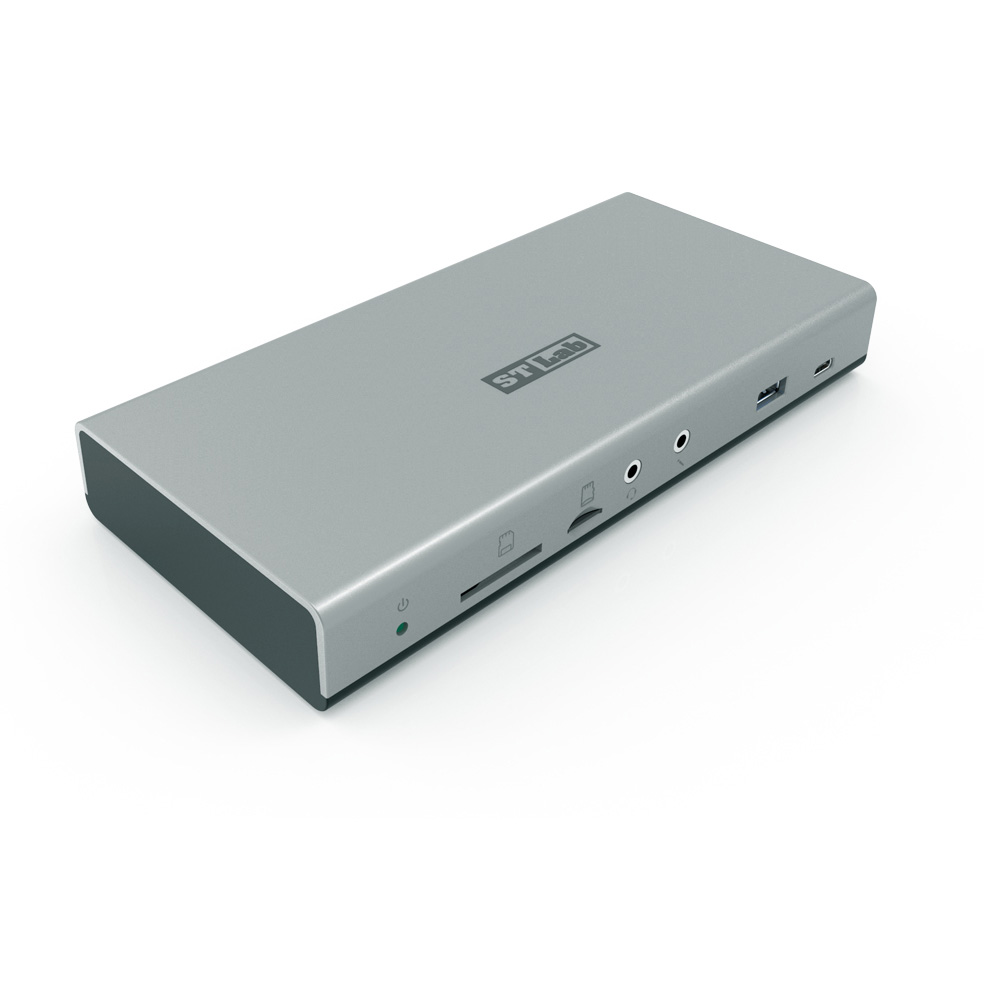

U-2440 USB 10Gbps Dual Display Docking Station w/Card reader
Get a Quote ✎
2021/05/17
- 1x HDMI™ port + 1x DVI port
- 1x Audio out + Mic in
- 2x USB 10Gbps Type-C + 3x USB 10Gbps Type-A
- 1x SD and microSD card reader + 1x 1GbE RJ45 prot
- Ordering Code: U-2440
- Part No: U3-C65-DS11-11-00012
- Solution: VL822Q8+VL817+DL3900+GL3224
This USB Dual Display Docking Station connects your PC/laptop to up to two additional monitors, Gigabit Ethernet connection, microphone input, speakers, two 10Gbps USB-C devices, three/four 5Gbps USB-A devices and SD/microSD card reader with a single cable.
Features
- Dual Displays with one HDMI™ port plus one DVI port, allowing up to two monitors for Extend,Mirror or Primary Display.
- Maximum resolutions:
- Dual displays HDMI™& DVI: 2048X1152
- Single display HDMI™: 2560X1440 or DVI: 2048X1152
- Gigabit Ethernet RJ-45 port, supports 10M/100M/1G connection
- Audio Out jack to connect to speakers
- Mic In jack to connect to microphone
- Two SuperSpeed USB 10Gbps USB Type-C ports
- Three SuperSpeed USB 5Gbps USB Type A ports with USB BC 1.2 support
- Power up to 15W per USB-C port
- Dedicated slots for SD and microSD card reader,transferring data to and from two different cards at the same time
| Ordering Code | U-2440 |
|---|---|
| Description | USB 10Gbps Dual Display Docking Station w/Card reader |
| Solution | VL822Q8+VL817+DL3900+GL3224 |
| Bus Type | USB 10Gbps |
| OS Driver Support | Windows 7/8.x/10 macOS 10.8 or later Ubuntu 18.04/19.04/20.04 |

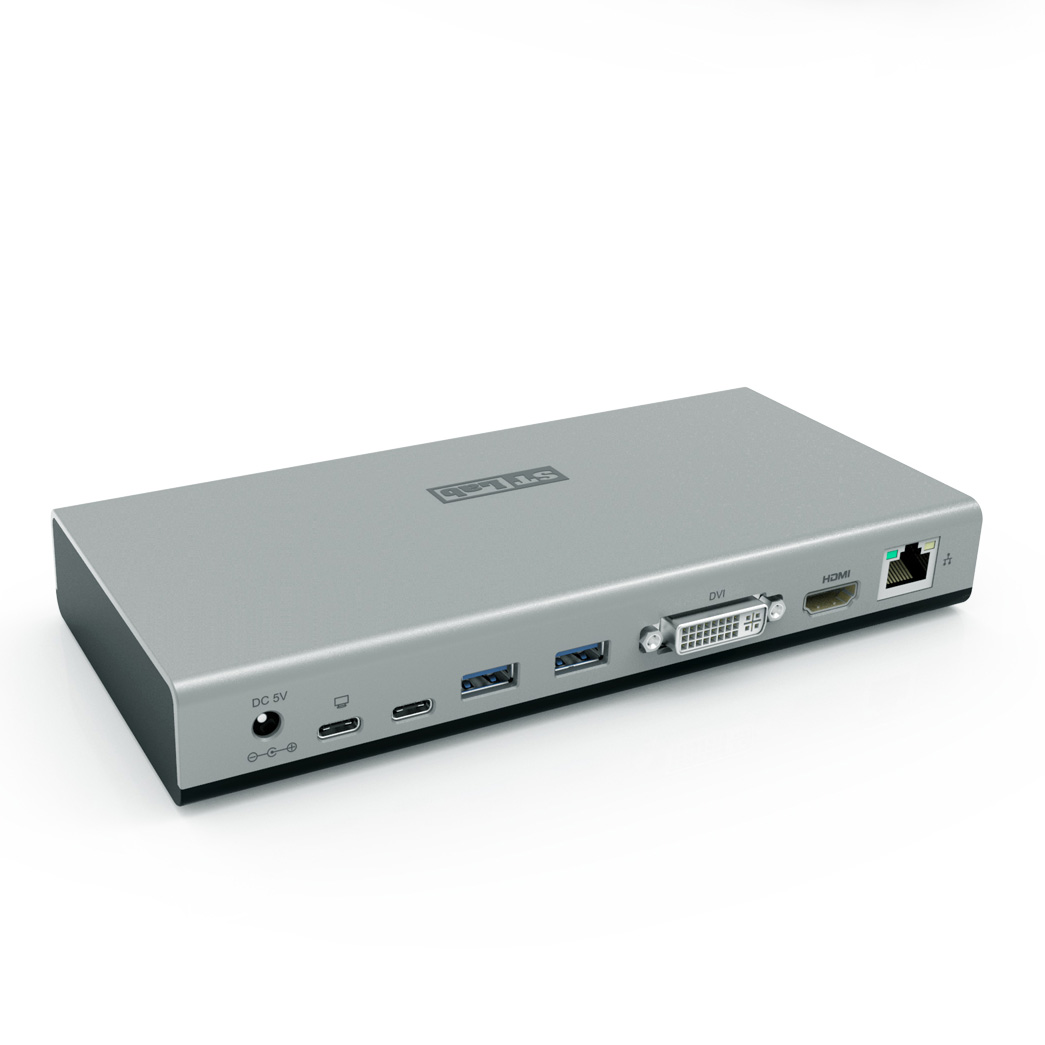

| Connectors | 1x HDMI™ port 1x DVI port 2x USB 10Gbps Type-C ports 3x USB 10Gbps Type-A ports 1x 1GbE RJ45 prot 1x Audio out 1x Mic in 1x SD card reader 1x microSD card reader |
| Data Rates | 1Gb/100Mb/10Mb Ethernet USB 10Gbps |
| Resolution | Dual displays HDMI™ & DVI: 2048X1152 Single display HDMI™: 2560X1440 or DVI: 2048X1152 |
| Operating Temperature | 0℃ – 40℃ |
| Storage Temperature | 0℃ – 55℃ |
| EMC Standards | CE, FCC |
| Dimensions | 198.3L x 95W x 28H mm |

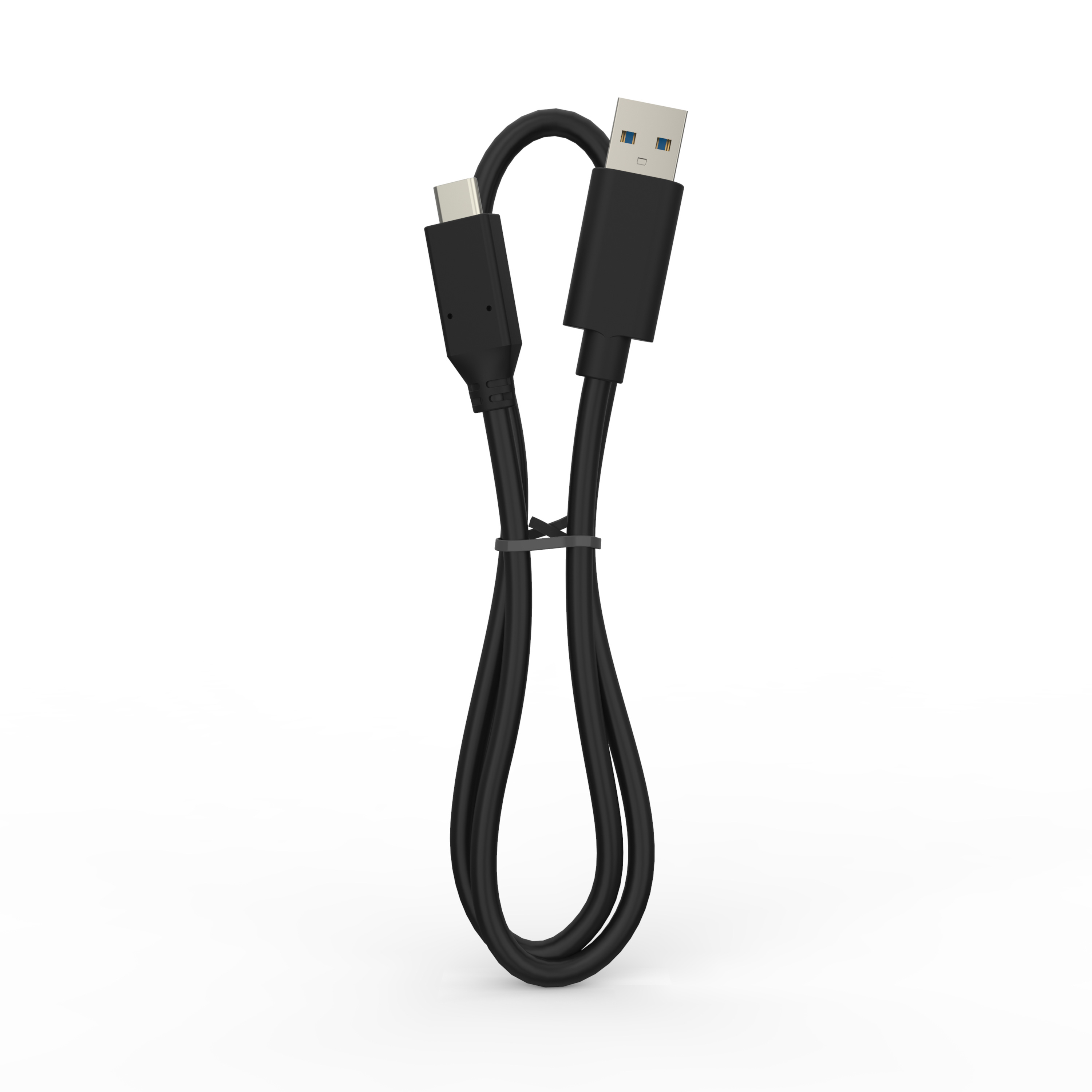

| Package content | 1x USB 10Gbps Dual Display Docking Station w/Card reader 1x USB 10Gbps Cable 1x User Manual 1x Power Adapter |
| Packing Information | Retail Box Packing 10 pcs/Carton Measurment: 41L x 35W x 25H cm G.W: 6.5 Kg ; N.W: 5.8 Kg |
Manual :
U-2440 User Manual
↧ DownloadDriver :
DL-3xxxDL-5xxxDL-6xxx_Linux.zip
↧ DownloadDL-3xxxDL-5xxxDL-6xxx_macOS.zip
↧ DownloadDL-3xxxDL-5xxxDL-6xxx_Windwos.zip
↧ DownloadQuestions & Answers :
Q: Why is there no display after connecting a USB Dock to an external monitor via HDMI, DisplayPort (DP), or VGA
Read More ›
