U-2410 USB Type-A 2.5G 4-Speed Multi-Gigabit Ethernet Adapter
Get a Quote ✎
2020/10/21
- 2.5GbE RJ45 Port
- 1x USB 5Gbps Port
- 1x USB 5Gbps Port
- Ordering Code: U-2410
- Part No: U3-C62-DS20-11-00012
- Solution: GL3510+RTL8156B
This USB 2.5G 4-Speed Multi-Gigabit Ethernet Adapter supports data rate up to 2.5 Gbps. It is aimed at lower the cost to upgrade Gigabit Ethernet to 2.5G Ethernet. It will increase business working efficiency by increasing the network speed. It will also greatly reduce file transfer time between networkeddevices in a home environment, where video streaming over the network is becoming commonplace. In addition, it also adds one SuperSpeed USB 5Gbps Type-A port to your system connecting other USB devices
Features
- Compliant with USB 3.2 Gen 1，USB 2.0 and USB 1.1
- Supports 10/100/1000/2500 Mbps Ethernet
- Supports IEEE 802.1Q VLAN tagging
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports IEEE 802.3bz (2.5 GBASE-T)
- Supports Full Duplex flow control (IEEE 802.3 x)
- Up to 16 KB jumbo frames
- USB port data rate up to 5 Gbps
- Backward compatible with USB 2.0 and 1.1 devices
- Downstream port: 1x RJ45
- 1x USB Type-A
| Ordering Code | U-2410 |
|---|---|
| Description | USB Type-A 2.5G 4-Speed Multi-Gigabit Ethernet Adapter |
| Solution | GL3510+RTL8156B |
| Standard Compliance | USB 3.2 Gen 1 2.5 GBASE-T |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) Linux 4. x or later macOS 10.15 later |
| Connectors | 1x USB Type-A 5Gbps Port 1x 2.5GbE RJ45 Port |
| Data Rates | 2.5Gb/1Gb/100Mb/10Mb Ethernet USB 5Gbps |
| Operating Temperature | 0℃ – 40℃ |
| Storage Temperature | 0℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | 87.2L x 30W x 15H mm | Cable 150 mm |

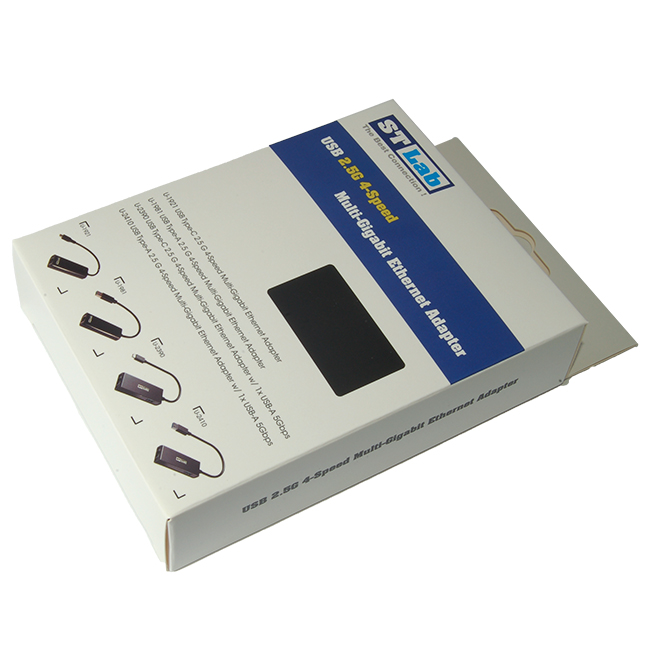

| Package content | 1x USB Type-A 2.5G 4-Speed Multi-Gigabit Ethernet Adapter 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 35L x 28W x 23H cm G.W: 4.5 Kg ; N.W: 3.8 Kg |
Manual :
U-2410 User Manual
↧ DownloadDriver :
RTL_USB_ FE_GBE_Linux.zip
↧ DownloadRTL_USB_ FE_GBE_Windows.zip
↧ DownloadRTL_USB_ FE_GBE_Mac.zip
↧ Download
