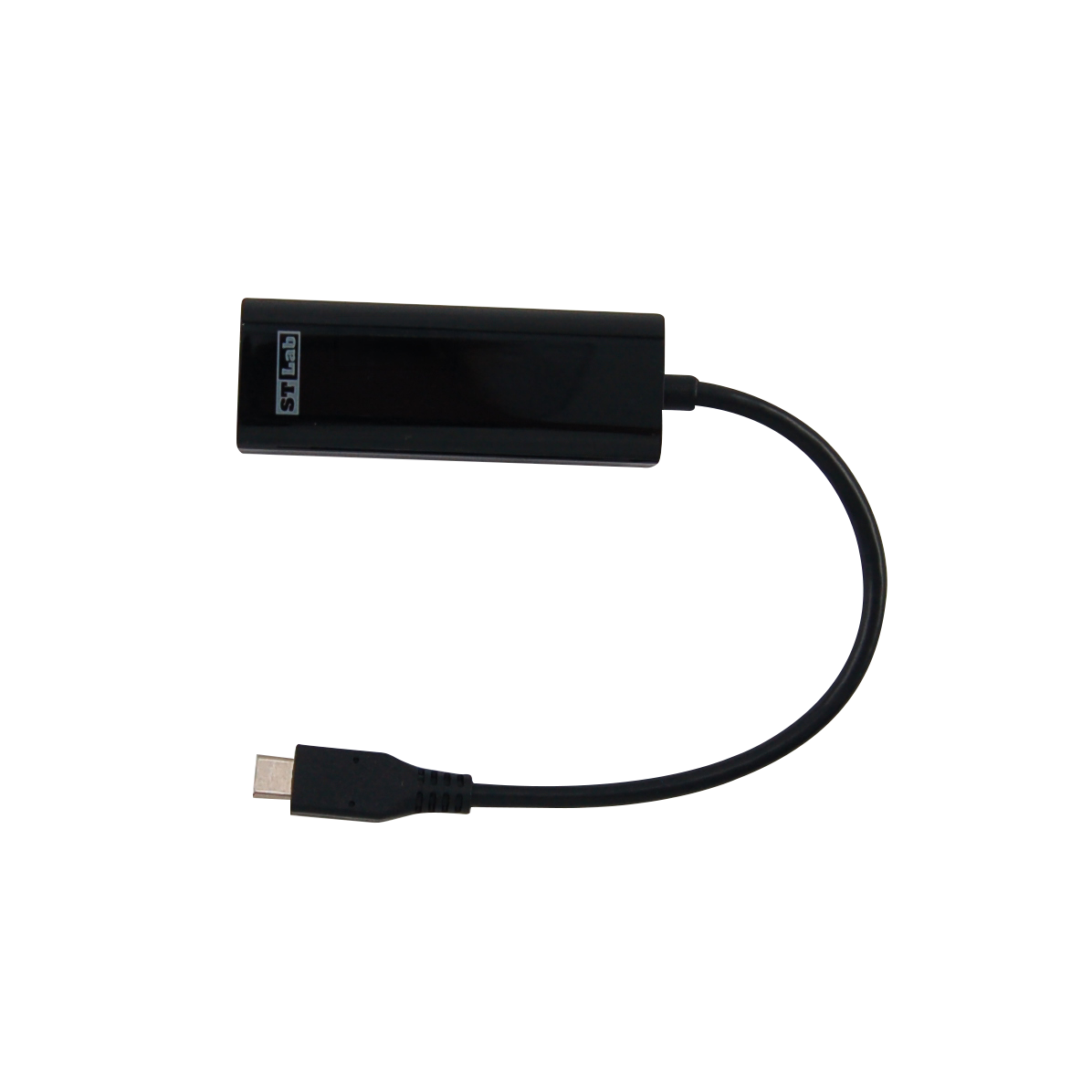

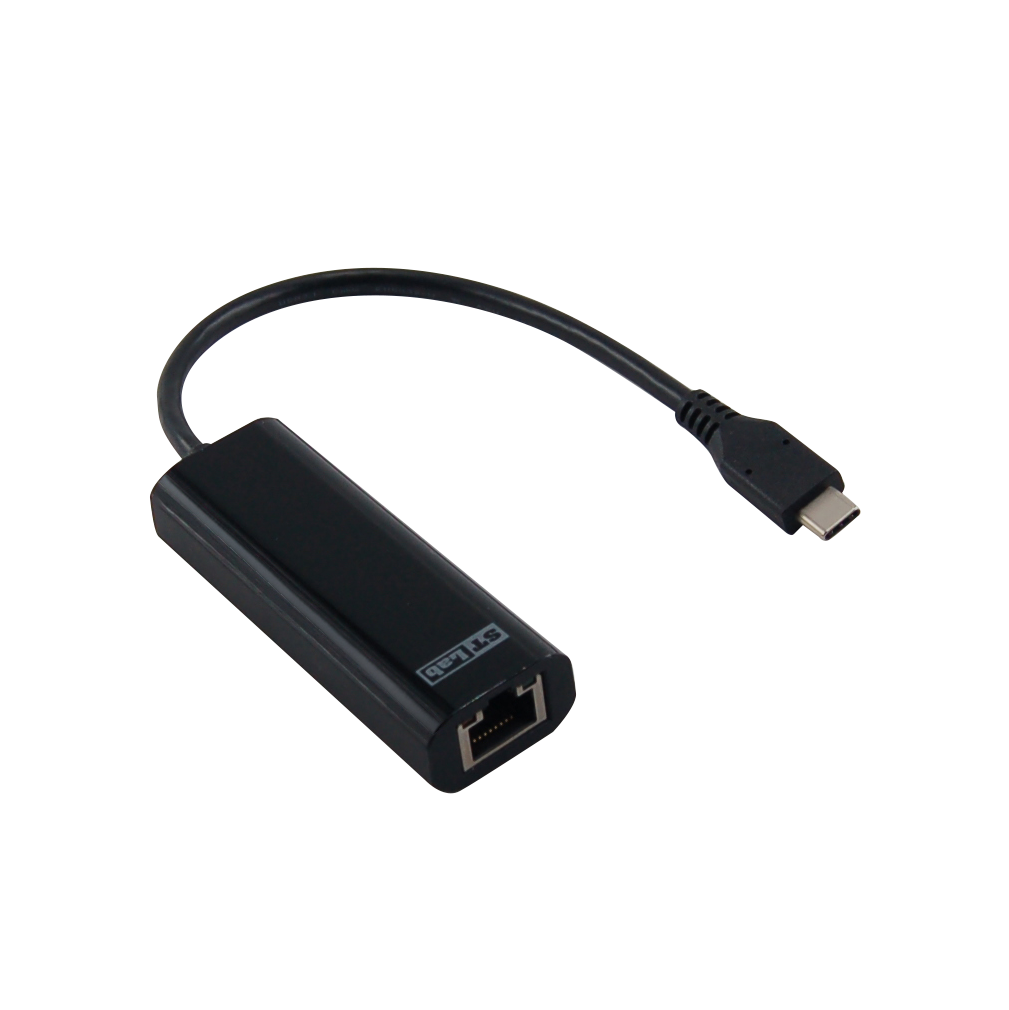

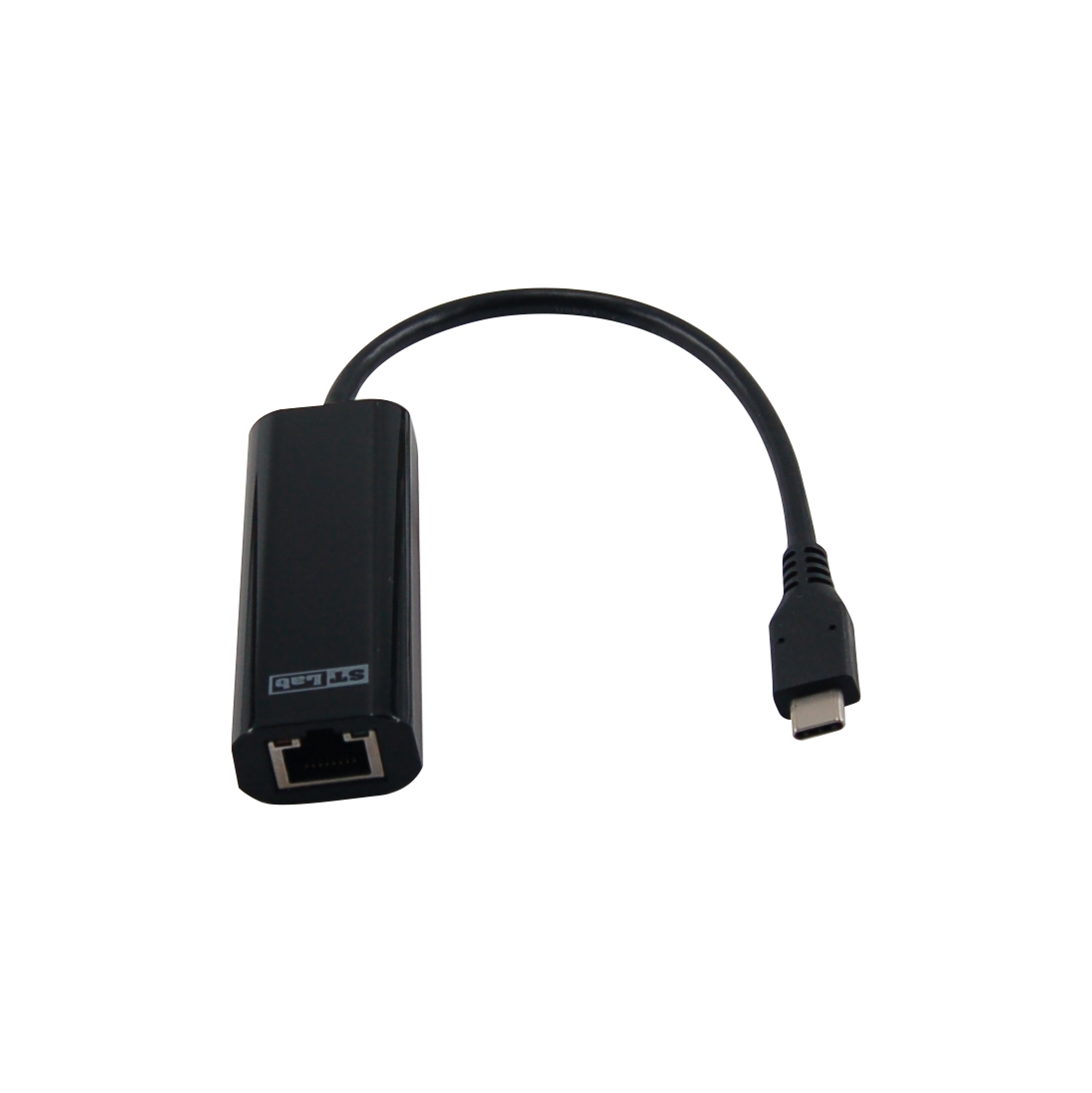

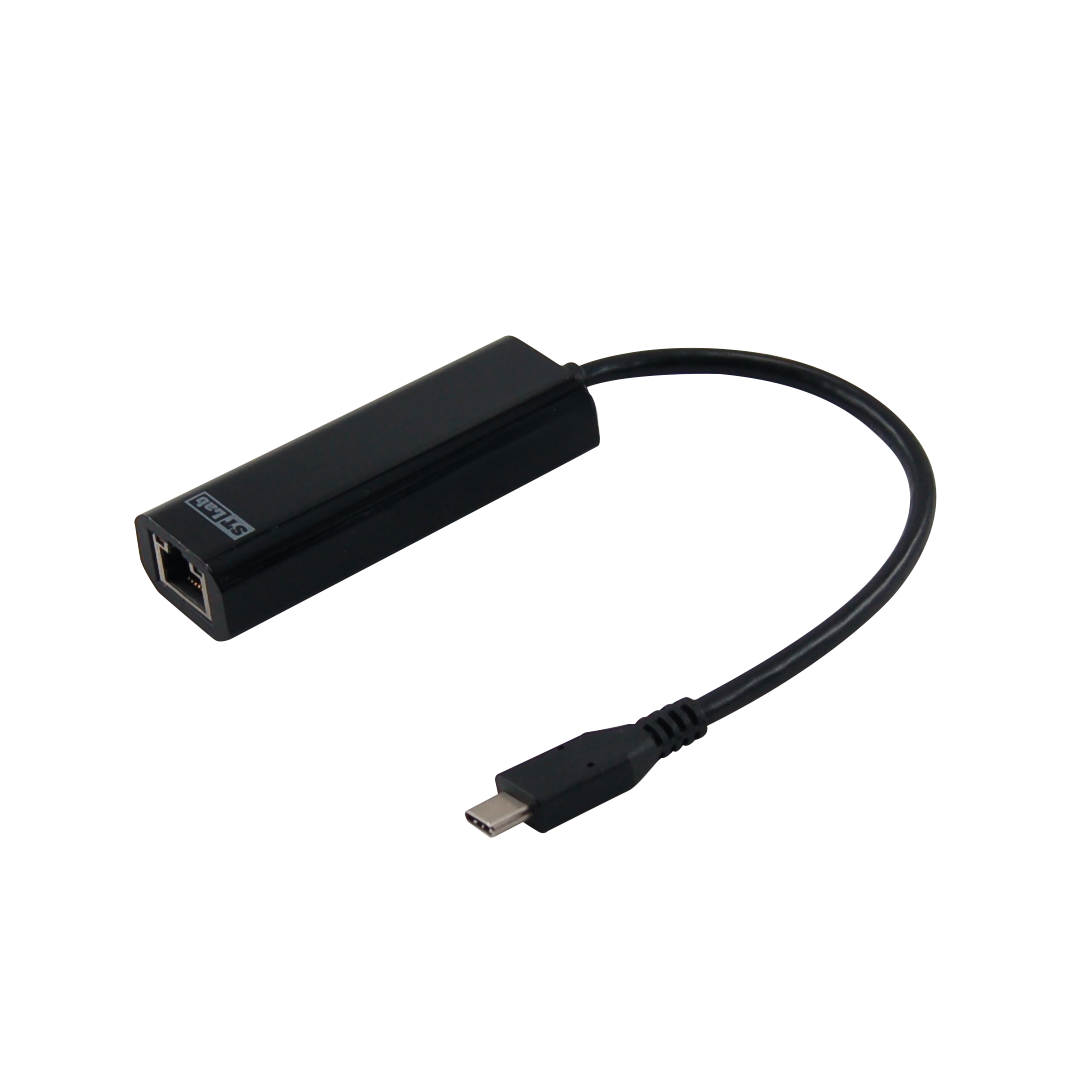

U-1921 USB Type-C 2.5G 4-Speed Multi-Gigabit Ethernet Adapter
Get a Quote ✎
2020/11/02
- 1GbE RJ45 Port
- USB 5Gbps Type-C Male Upstream Port
- Ordering Code: U-1921
- Part No: U3-R27-LN10-11-00012
- Solution: Realtek RTL8156B
This USB 3.2 Gen 1 2.5G 4-Speed Multi-Gigabit Ethernet Adapter supports data rate up to 2.5 Gbps.It will increase business working efficiency by increasing the network speed.It will also greatly reduce file transfer time between networked devices in a home environment, where video streaming over the network is becoming commonplace.
Features
- Compliant with USB 3.2 Gen 1，USB 2.0 and USB 1.1
- Supports 10/100/1000/2500 Mbps Ethernet
- Supports IEEE 802.1Q VLAN tagging
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports IEEE 802.3bz (2.5 GBASE-T)
- Supports Full Duplex flow control (IEEE 802.3 x)
- Up to 16 KB jumbo frames
- Downstream port: RJ45
| Ordering Code | U-1921 |
|---|---|
| Description | USB Type-C 2.5G 4-Speed Multi-Gigabit Ethernet Adapter |
| Solution | Realtek RTL8156B |
| Standard Compliance | USB 3.2 Gen 1 2.5 GBASE-T |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) Linux 3. x or later macOS 10.15 later |
| Connectors | 1x 2.5GbE RJ45 Port |
| Data Rates | 2.5Gb/1Gb/100Mb/10Mb Ethernet |
| Operating Temperature | 0℃ – 40℃ |
| Storage Temperature | 0℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | 75.5L x 27.4W x 16H mm | Cable 150mm |
| Package content | 1x USB Type-C 2.5G 4-Speed Multi-Gigabit Ethernet Adapter 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 35L x 28W x 23H cm G.W: 3.7 Kg ; N.W: 3.2 Kg |
Manual :
U-1921 User Manual
↧ DownloadDriver :
RTL_USB_ FE_GBE_Linux.zip
↧ DownloadRTL_USB_ FE_GBE_Windows.zip
↧ DownloadRTL_USB_ FE_GBE_Mac.zip
↧ Download
