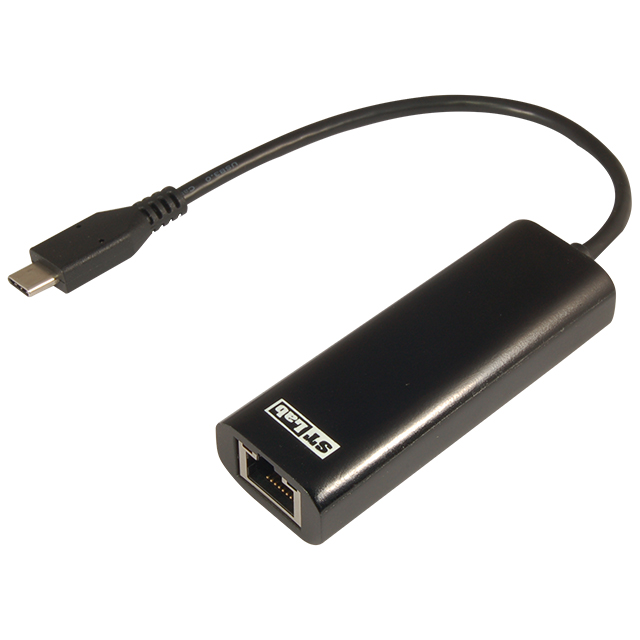

U-1920 USB Type-C 2.5G 4-Speed Gigabit LAN AdapterEOL
Get a Quote ✎
2019/06/17
- 2.5GbE RJ45 Port
- Bus Type USB 5Gbps
- Ordering Code: U-1920
- Part No: U3-R23-LN10-11-00012
- Solution: Realtek RTL8156
This USB 3.1 Gen 1 2.5G 4-Speed Multi-Gigabit Ethernet Adapter supports data rate up to 2.5 Gbps. It is aimed at lower the cost to upgrade Gigabit Ethernet to 2.5G Ethernet. It will increase business working efficiency by increasing the network speed. It will also greatly reduce file transfer time between networked devices in a home environment, where video streaming over the network is becoming commonplace
Features
- Compliant with USB 3.1 Gen1，USB 2.0and USB 1.1
- Supports 10/100/1000/2500Mbps Ethernet
- Supports IEEE 802.1Q VLAN tagging
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports IEEE 802.3bz(2.5GBASE-T)
- Supports Full Duplex flow control (IEEE 802.3x)
- Downstream port: RJ45
- Up to 16KB jumbo frames
| Ordering Code | U-1920 |
|---|---|
| Description | USB Type-C 2.5G 4-Speed Gigabit LAN Adapter |
| Solution | Realtek RTL8156 |
| Standard Compliance | USB 3.2 Gen 1 2.5 GBASE-T |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) Linux 3. x or later macOS 10.15 later |
| Connectors | 1x 2.5GbE RJ45 Port |
| Data Rates | 2.5Gb/1Gb/100Mb/10Mb Ethernet |
| Operating Temperature | 0℃ – 40℃ |
| Storage Temperature | 0℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | 75.5L x 27.4W x 16H mm | Cable 150mm |
| Package content | 1x USB Type-C 2.5G 4-Speed Gigabit LAN Adapter 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 35L x 28W x 23H cm G.W: 3.7 Kg ; N.W: 3.2 Kg |
Manual :
U-1920 User Manual
↧ DownloadDriver :
RTL_USB_ FE_GBE_Linux.zip
↧ DownloadRTL_USB_ FE_GBE_Windows.zip
↧ DownloadRTL_USB_ FE_GBE_Mac.zip
↧ Download
