U-1850

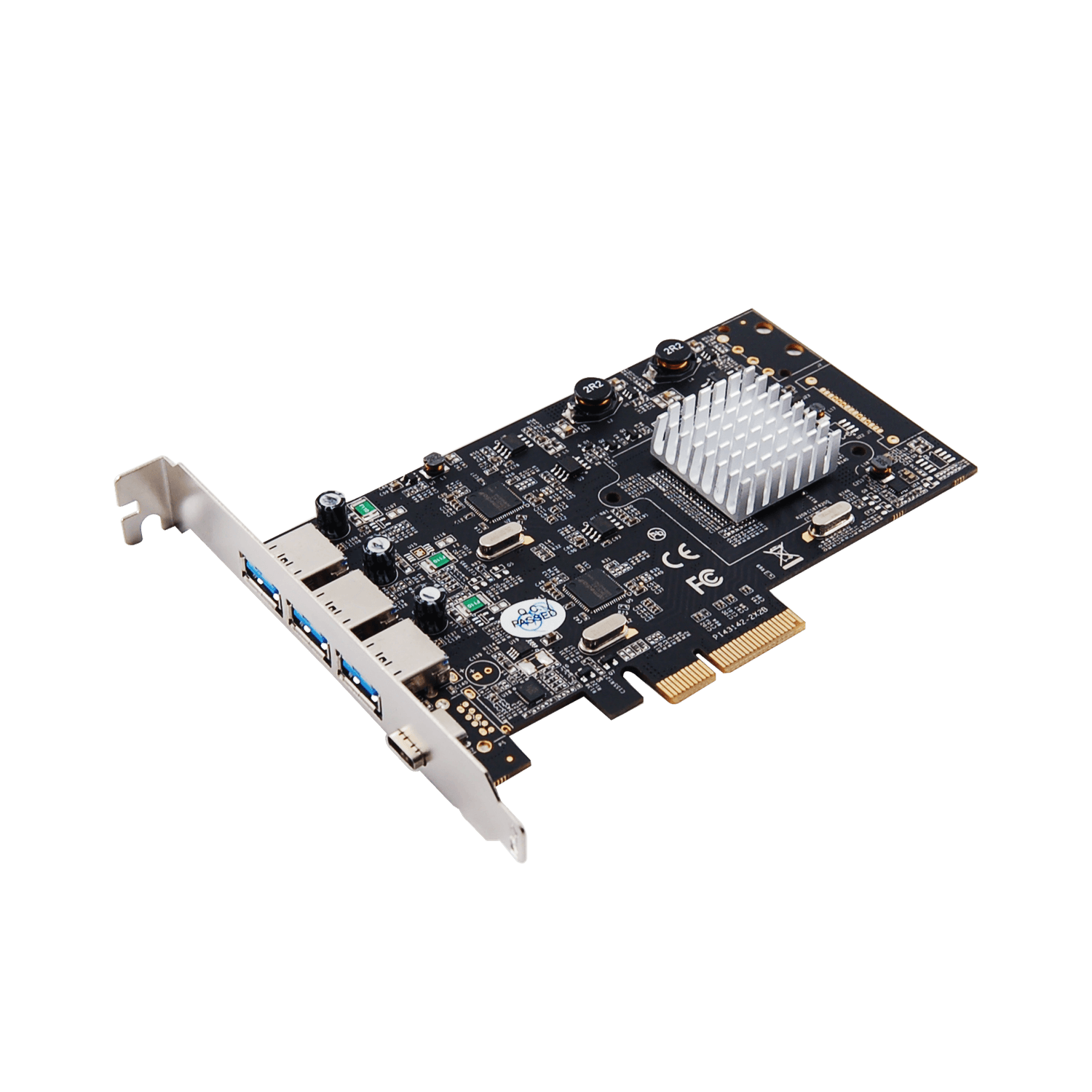

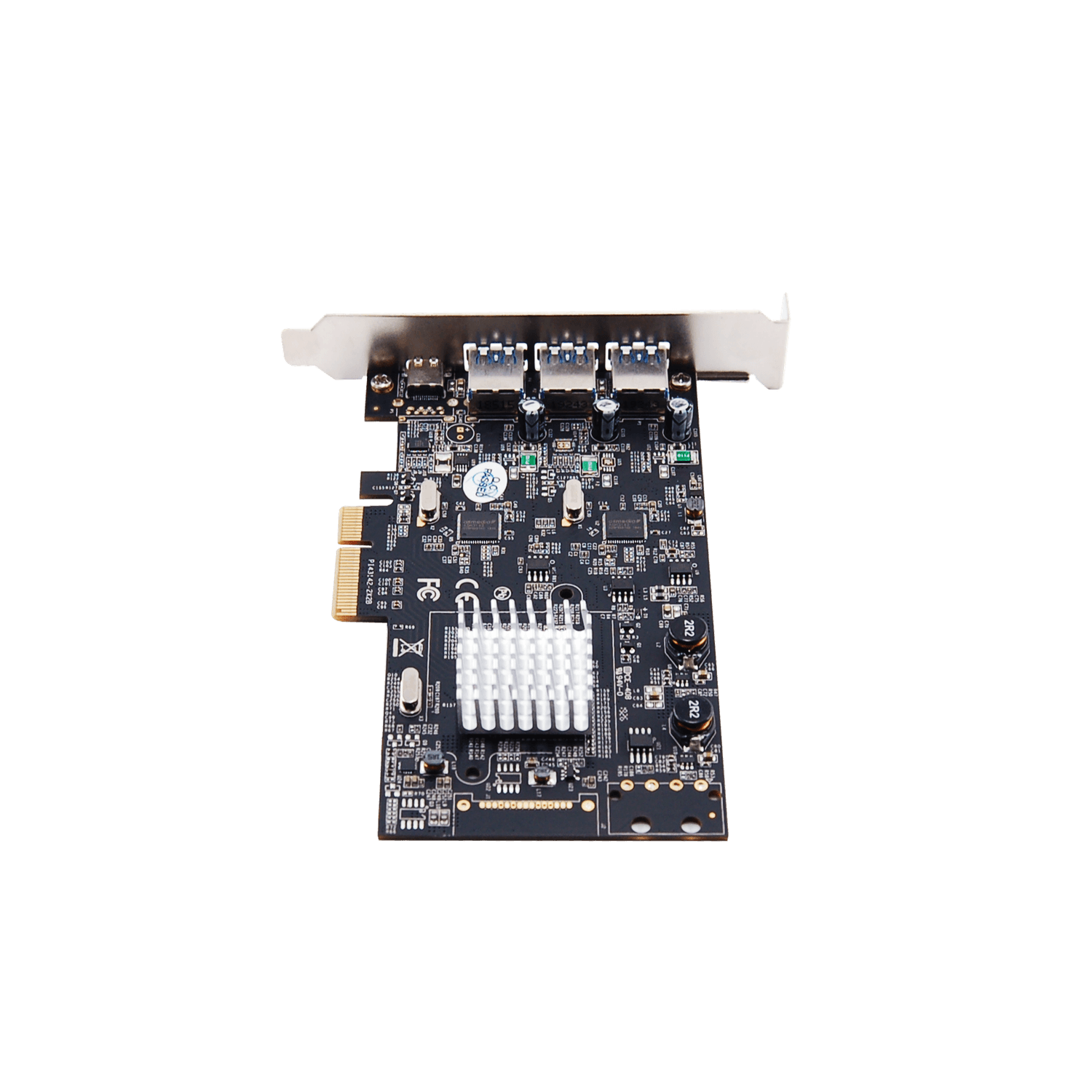

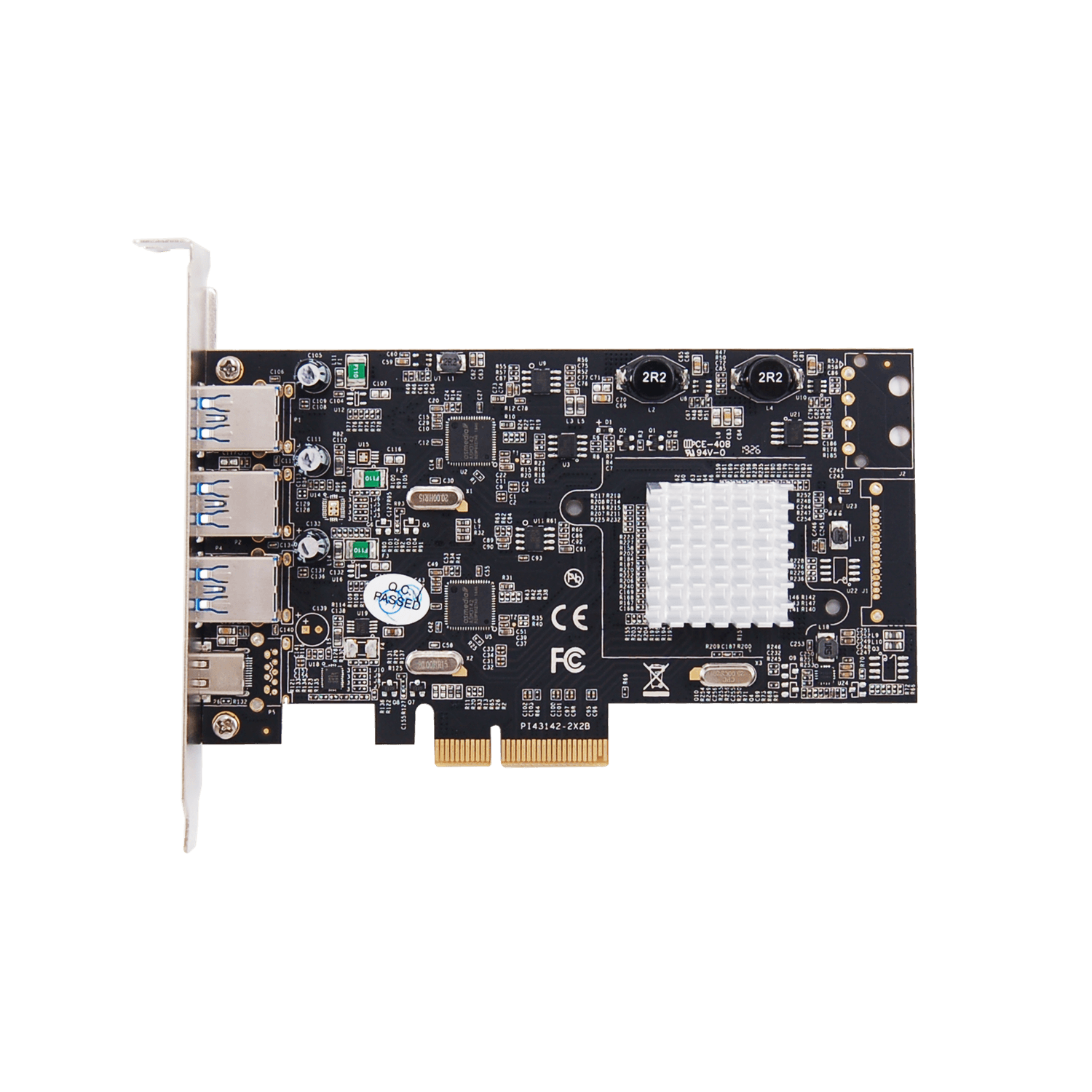

U-1850 PCIe Dual Bus 4-Port USB 10Gbps Host Adapter

Get a Quote ✎
2019/04/30
  • 3x USB 10Gbps Type-A Port
  • 1x USB 10Gbps Type-C Port
  • Total Bandwidth 16Gbps
  • Ordering Code: U-1850
  • Part No: IE-A51-1540-00-00012
  • Solution: ASM3142

This card supporting the proprietary driver for Windows 7 and in box driver for Windows 8.0, Windows 8.1, Windows 10 and various Linux kernels. The application of ASM3142 includes Motherboard, Desktop PC, Notebooks, Workstations, Servers, Add-in cards, PCI Express based embedded platform.

Features

  • PCI-Express 2.0 x4
  • Provides four SuperSpeed+ (10Gb/s) USB 3.1 Type-A or Type-C ports to support total transfer bandwidth up to 20Gb/s
  • Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.1
  • Supports simultaneous operation of multiple USB 3.1, USB 2.0 and USB 1.1 devices
  • Supports the following speed data rates as follows:
  • Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
  • Supports 4 downstream ports for all speeds
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Ordering CodeU-1850
DescriptionPCIe Dual Bus 4-Port USB 10Gbps Host Adapter
SolutionASM3142
Form FactorPCIe 2.0 x4
Bus Widthx4 lane PCI Express
OS Driver SupportWindows 7/8.x/10 (32/64 bit) Mac OS X 10.10 or higher Linux 3.5 or later
Total Bandwidth16Gbps
Connectors3x USB 10Gbps Type-A Ports 1x USB 10Gbps Type-C Port
Data RatesUSB Type-C 10Gbps USB Type-A 10Gbps
Support Low-Profile BracketNo
Operating Temperature0℃ – 60℃
Storage Temperature-10℃ – 70℃
EMC StandardsCE, FCC
Dimensions153L x 120.9W x 21.6H mm
Package Contents1x PCIe Dual Bus 4-Port USB 10Gbps Host Adapter 1x User Manual
Packing InformationRetail Box Packing 40 pcs/Carton Measurment: 53L x 46W x 36H cm

Manual :

U-1850 User Manual 2024/04/26
↧ Download

Driver :

ASM1142_2142.rar 2024/04/26
↧ Download

Questions & Answers :

Q: After installing the PCIe USB expansion card, Windows Device Manager displays Code 10 – "This device cannot start", and connected USB devices cannot be used
Read More ›

Related Products

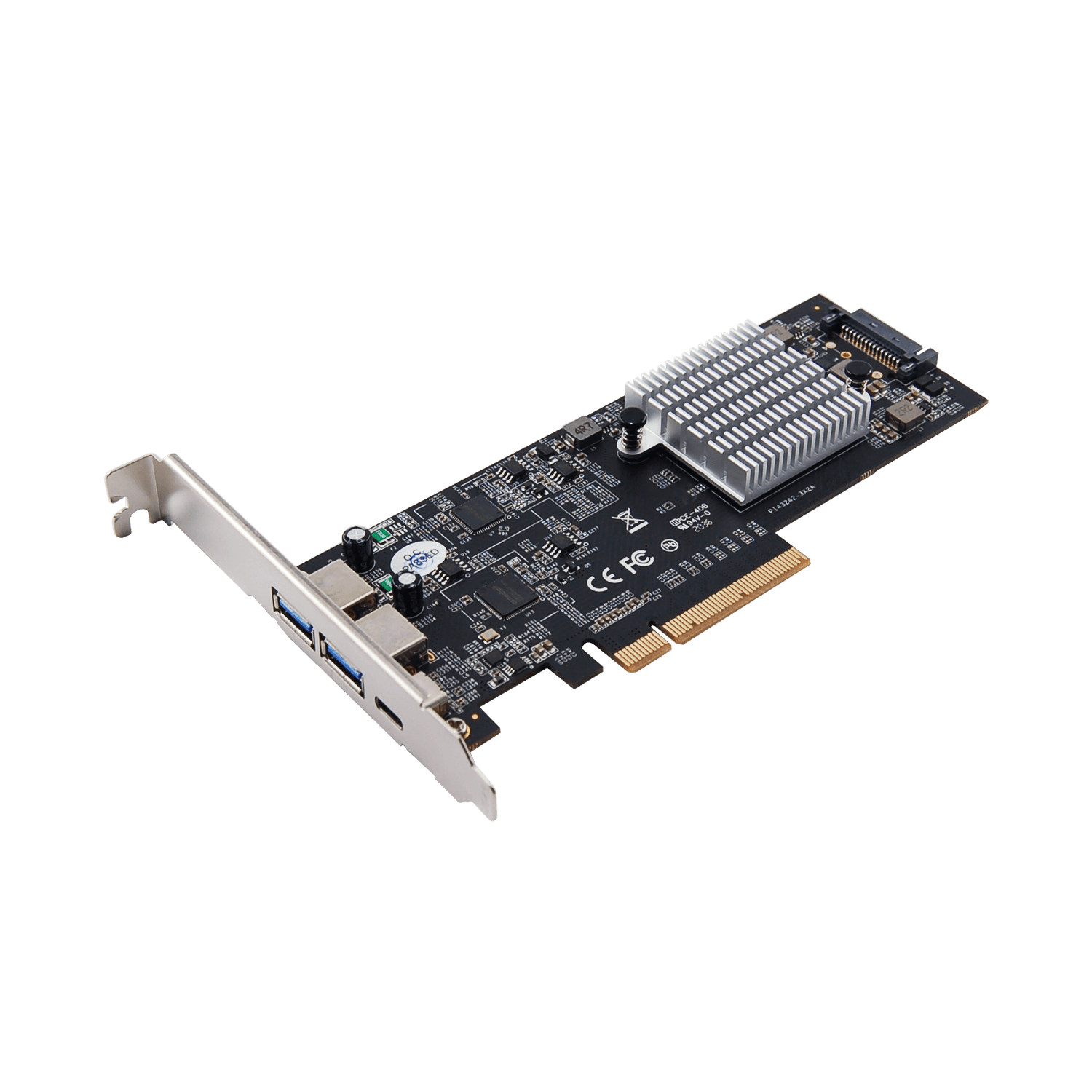

U-2380

U-2380 PCIe Dual Bus 3-Port USB 3.2 Gen2x2 Host Adapter

Ordering Code: U-2380
Part No: IE-C64-1230-00-00012
Solution: ASM3242+ASM3142

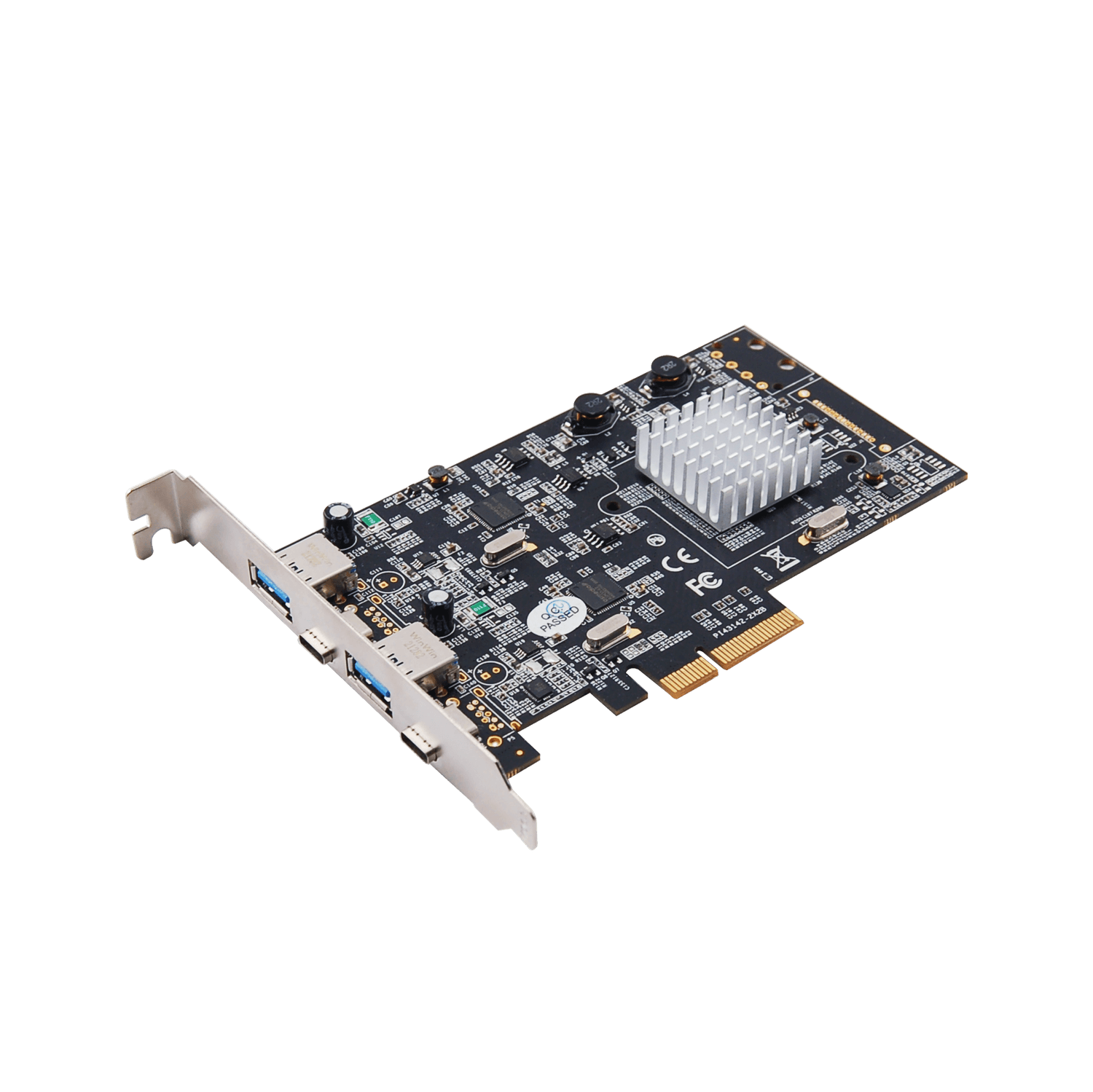

U-1910

U-1910 PCIe Dual Bus 4 Ports USB 10Gbps Host Adapter

Ordering Code: U-1910
Part No: IE-A51-1940-00-00012
Solution: ASM3142

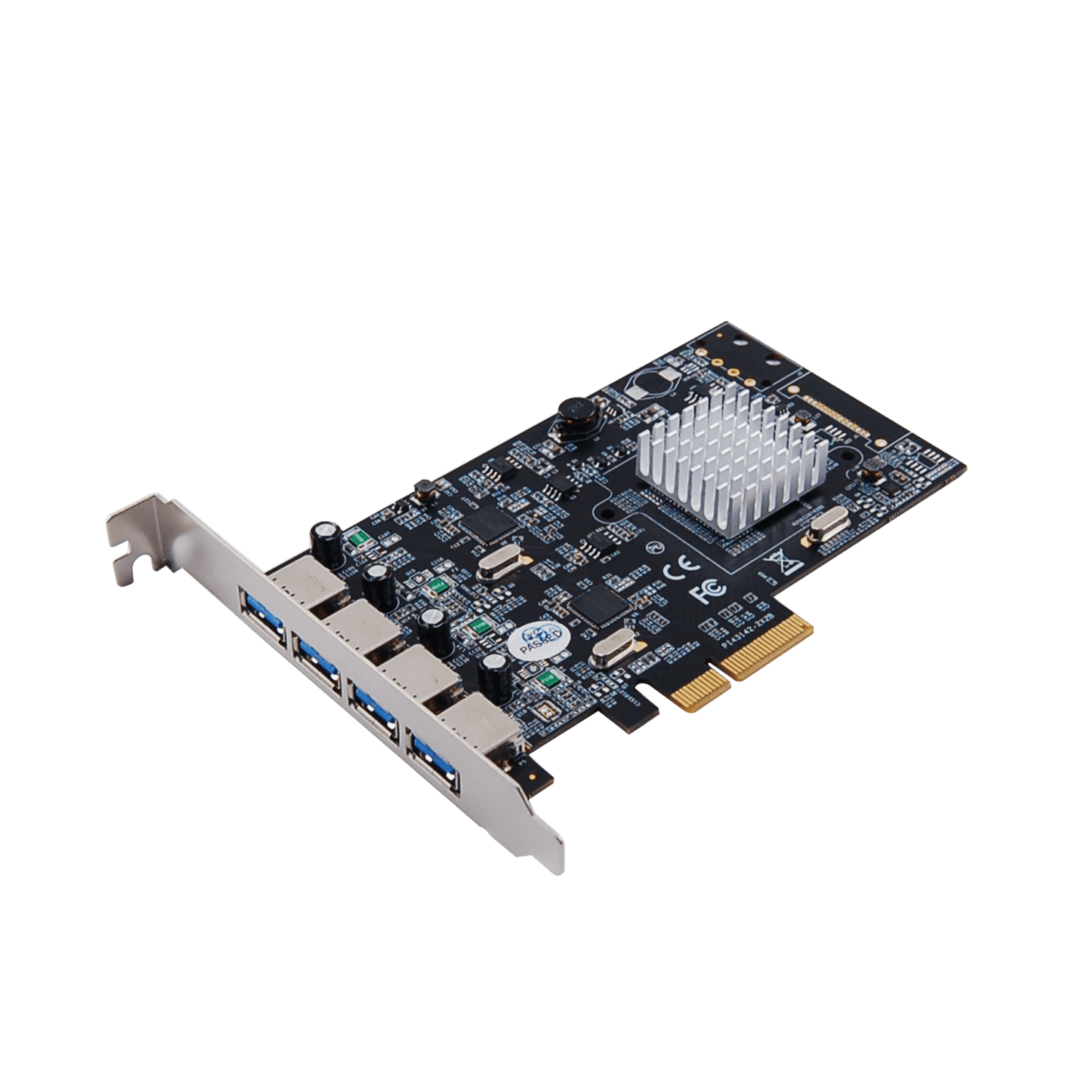

U-1900
