U-1740 PCIe Dual Bus USB 5Gbps 4-Port Host AdapterEOL
Get a Quote ✎
2018/03/20
- 3x USB 5Gbps Type-A Ports
- 1x USB 5Gbps Type-C Port
- PCIe 2.0 x4 Form Factor
- Ordering Code: U-1740
- Part No: IE-A43-1A40-00-00012
- Solution: ASM1142
Provides three SuperSpeed USB 3.1 Type-A ports and one USB3.1 Type-C port to support total transfer bandwidth up to 20Gb/s.
Features
- PCI-Express 2.0 x4 Provides three SuperSpeed USB 3.1 Type-A ports and one USB 3.1 Type-C port to support total transfer bandwidth up to 20Gb/s
- Complaint with Intel eXtensible Host Controller Interface(xHCI) Specification Revision 1.1
- Supports simultaneous operation of multiple USB 3.1, USB 2.0 and USB 1.1 devices
- Supports the following speed data rates as follows:Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
- Supports 4 downstream ports for all speeds
- Built-in 4-pin power connector and 7-pin SATA power connector for receiving extra power supply from system
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
| Ordering Code | U-1740 |
|---|---|
| Description | PCIe Dual Bus USB 5Gbps 4-Port Host Adapter |
| Solution | ASM1142 |
| Form Factor | PCIe 2.0 x4 |
| Bus Width | x4 lane PCI Express |
| OS Driver Support | Windows 7/8.x/10 (32/64 bit) Linux 3.5 or later Mac OS X 10.10 or higher |
| Total Bandwidth | 20 Gbps |
| Connectors | 3x USB 5Gbps Type-A Ports 1x USB 5Gbps Type-C Port |
| Data Rates | USB 5Gbps |
| Operating Temperature | 0℃ – 60℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | N/A |

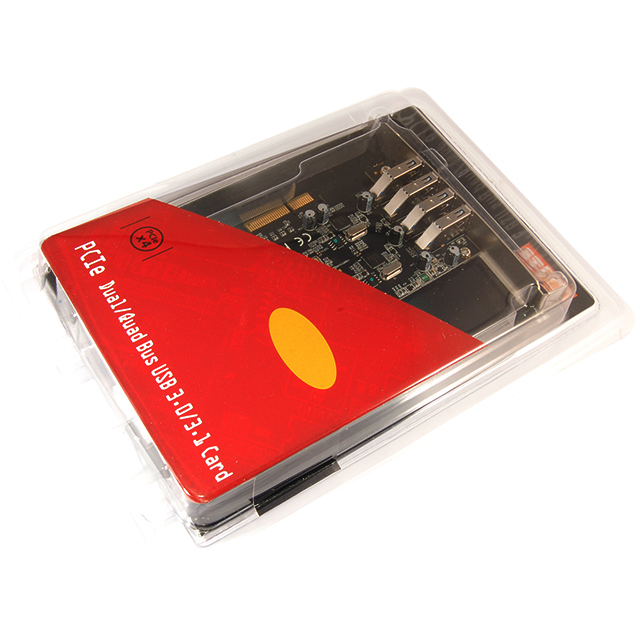

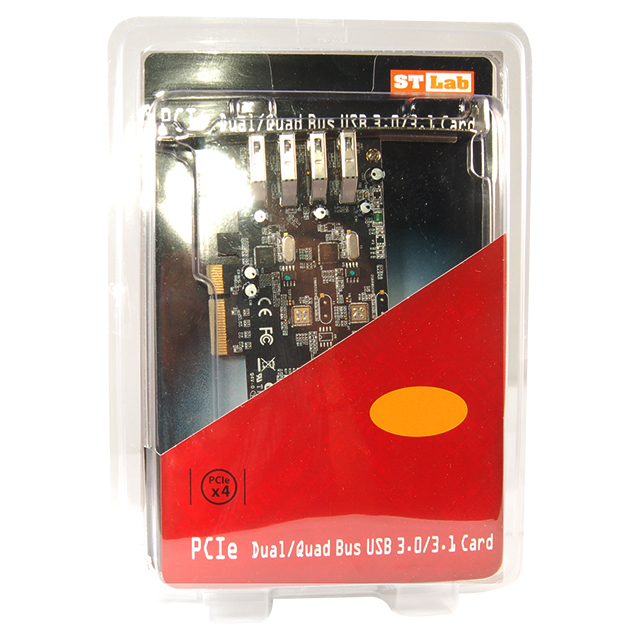

| Package Contents | 1x PCIe Dual Bus USB 5Gbps 4-Port Host Adapter 1x User Manual |
| Packing Information | N/A |
