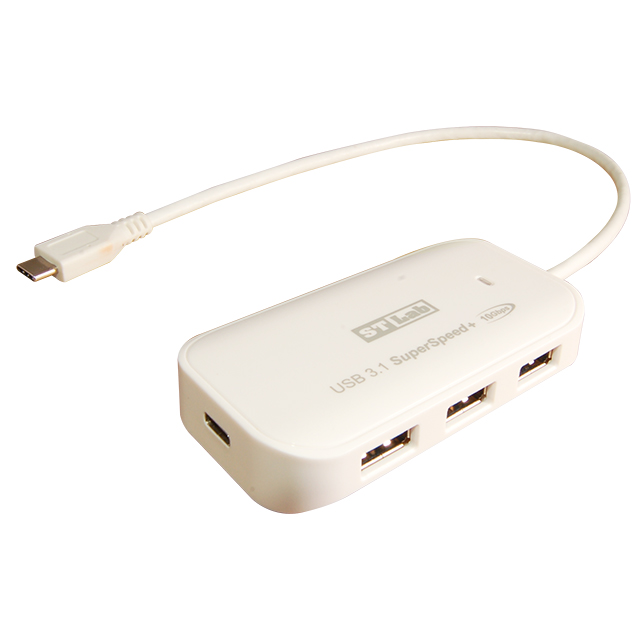

U-1700 USB 10Gbps Type-C 4-Port HubEOL
Get a Quote ✎
2018/04/25
- 3x USB 10Gbps Type-A Ports
- 1x USB 10Gbps Type-C Port
- Ordering Code: U-1700
- Part No: U3-R21-UH20-11-00012
- Solution: RTS5420
The USB 3.1 Gen2 A+C 4-Port Hub features four USB 3.1 ports for use with a MacBook or Pixel, extending functionality for connecting other devices.
Features
- Expand the connectivity of your computer using the latest USB 3.1 Gen 2 technology
- Plug the USB 3.1 Type-C Pocket Hub into an available USB Type-C port on your computer
- Provides three Type-A and one Type-C downstream ports
- Supports BC1.2 and Apple charging
- Compliant with USB 3.1 Gen2 and data rate up to 10Gbps
- Backward compatible with USB3.1 Gen1 (USB3.0),USB2.0 and USB1.1 devices
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
- LED to indicate Hub power
| Ordering Code | U-1700 |
|---|---|
| Description | USB 10Gbps Type-C 4-Port Hub |
| Solution | RTS5420 |
| Bus Type | USB 3.2 Gen2 10Gbps |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) Mac OS X v10.8 or later Linux 2.6.24 and 4.11.x or later |
| Connectors | 3x USB 10Gbps Type-A Ports 1x USB 10Gbps Type-C Port |
| Data Rates | USB 10Gbps |
| Operating Temperature | 0℃ - 40℃ |
| Storage Temperature | 0℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | N/A |
| Package content | 1x USB 10Gbps Type-C 4-Port Hub 1x User Manual |
| Packing Information | N/A |
