U-1530 USB 5Gbps Type-C Hub + PDEOL
Get a Quote ✎
2016/12/26
- 2x USB 5Gbps Type-A Ports
- 1x USB 5Gbps Type-C Port
- 1x USB Type-C PD pass-through Port
- Ordering Code: U-1530
- Part No: U3-V28-UH60-11-00012
- Solution: VL813

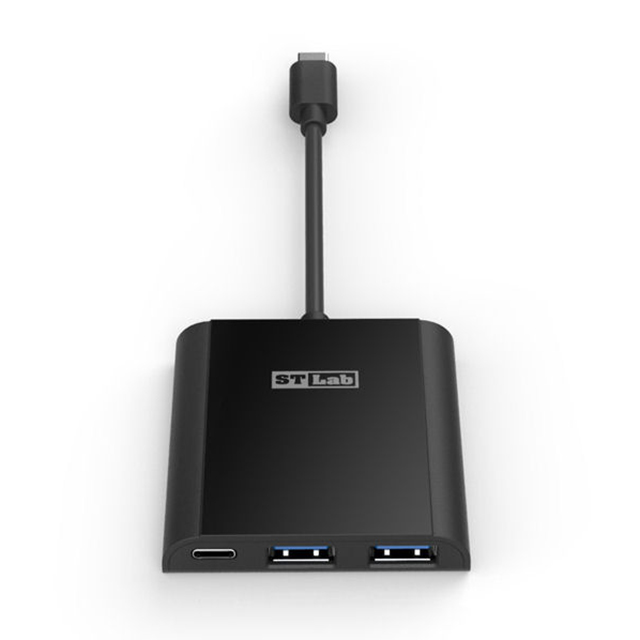

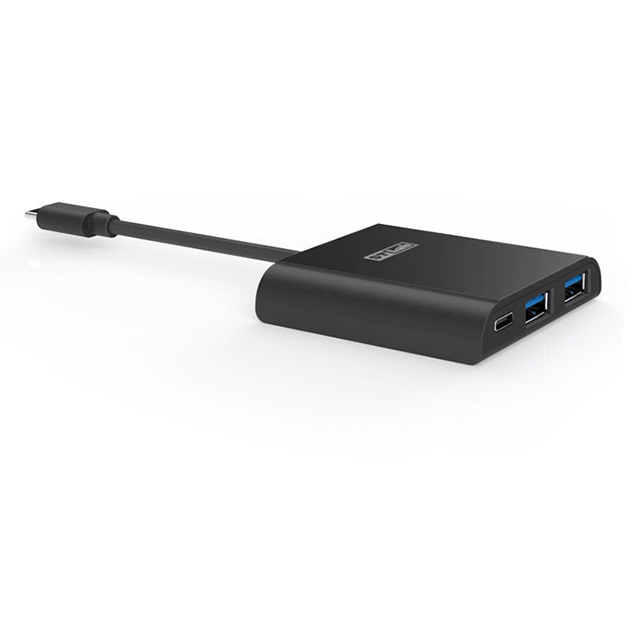

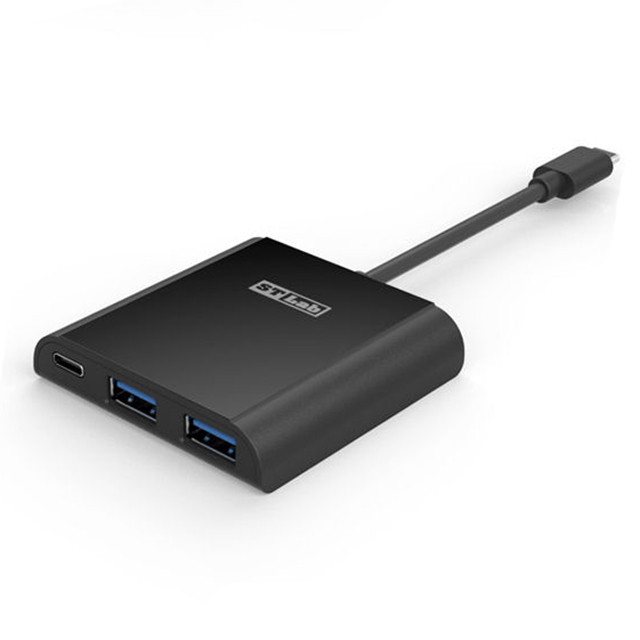

The USB 3.0 Type-C Hub with PD features one Type-C and two Type-A USB 3.0 ports for use with a MacBook or Pixel, extending functionality for connecting other devices.
Features
- Expand the connectivity of your USB port enabled computer using the latest USB 3.0 technology
- Compliant with USB 3.0 Specification Revision 1.0 and data rate up to 5Gbps
- Backward compatible with USB 2.0 and 1.1 devices
- Supports USB Battery Charging Specification v1.2
- Add one Type-C and two Type-A downstream ports to your MacBook, Chromebook, or computer that features a USB-C port
- Type-C Female connector is the charger for MacBook and ChromeBook Hot-swapping feature allows you to connect/disconnect devices without powering down the system
- No devices drivers required for Hub installation
| Ordering Code | U-1530 |
|---|---|
| Description | USB 5Gbps Type-C Hub + PD |
| Solution | VL813 |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows 7/8.x/10 (32/64 bit) Mac OS X v10.8 or later Linux 2.6 or later |
| Connectors | 2x USB 5Gbps Type-A Ports 1x USB 5Gbps Type-C Port 1x USB Type-C PD Port |
| Data Rates | USB 5Gbps |
| Power Delivery | PD pass-through |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | 60.9L x 58W x 15H mm | Cable 76mm |
| Package content | 1x USB 5Gbps Type-C Hub + PD 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 40L x 36W x 31H cm |
