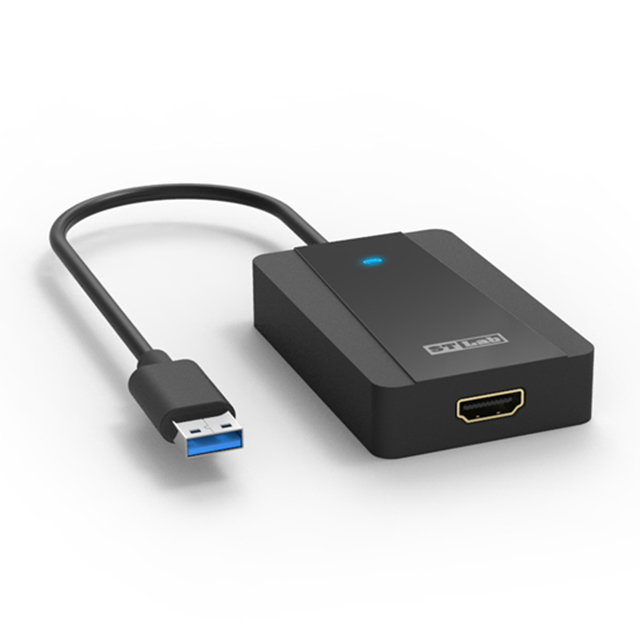

U-1510 USB 3.0 to HDMI™ AdapterEOL

Get a Quote ✎
2016/03/28
  • HDMI™ Port
  • Resolutions 2560x1440 @50Hz
  • Bus Type USB 3.0
  • Ordering Code: U-1510
  • Part No: U3-D11-V430-11-00012
  • Solution: DL3500

This USB 3.0 to HDMI™ Adapter turns an available USB 3.0 port into an HDMI™ output, with high resolution video support a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0). Leveraging the high-bandwidth (5Gbps) Super-Speed USB 3.0 interface, the adapter functions as an external graphics card to deliver smooth, high-definition content to your HDMI™ display. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.

Features:

  • Add-on monitor, LCD or projector through USB 3.0 or USB 2.0 connectivity
  • Supports widescreen aspect ratio of 16:9 Full HD 1080 video streaming
  • Supports resolutions up to 2560x1440@50Hz
  • Low power consumption via USB Bus Power Supply
  • Supports desktop display mirror, extended, and screen rotation modes
  • Up to six USB 3.0 graphic adapters working simultaneously
  • Audio output through HDMI™
  • Compatible with Windows power management hibernate and suspend modes
Ordering CodeU-1510
DescriptionUSB 3.0 to HDMI™ Adapter
SolutionDL3500
Bus TypeUSB 3.0 5Gbps
OS Driver SupportWindows 7/8/10 (32/64 bit) macOS X 10.8 or above
Connectors1x HDMI™ Port 1x USB 5Gbps Type-A Male Upstream Port
Resolution2560x1440 @50Hz
Operating Temperature0℃ – 45℃
Storage Temperature-10℃ – 70℃
EMC StandardsCE, FCC
Dimensions79L x 50W x 19H mm | Cable 200 mm
Package content1x USB 3.0 to HDMI™ Adapter 1x User Manual
Packing InformationRetail Box Packing 40 pcs/Carton Measurment: 40L x 36W x 30.5H cm G.W: 5.7 Kg ; N.W: 5.2 Kg

Manual :

U-1510 User Manual 2016/03/28
↧ Download

Driver :

DisplayLink.zip 2025/09/29
↧ Download
