U-1380 USB DisplayPort 4K AdapterEOL
Get a Quote ✎
2015/09/23
- DisplayPort
- Resolution 3840x2160@30Hz
- Ordering Code: U-1380
- Part No: U3-D18-V510-11-00012
- Solution: DL5500

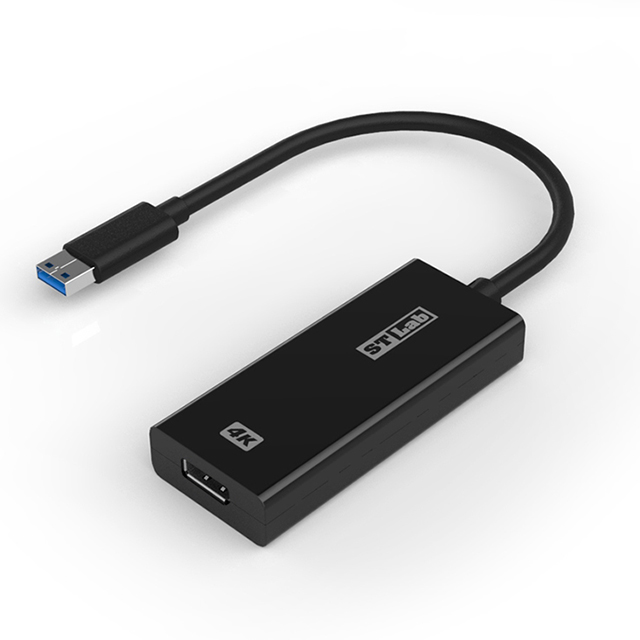

U-1380 USB 3.0 to DisplayPort 4K Adapter connects a 4K TV, monitor, or projector to your computer system. The adapter adds Ultra 4K video support to your computer system through an available USB 3.0 port. It supports a resolution up to 3840 x 2160. It is Windows and Mac compatible.
Features
- Highest performance USB graphics solution available. Combines both video and audio over a single USB cable and DisplayPort cable
- Connect multiple monitors with resolution as high as 3840x2160 (4K) to Windows-based laptops and desktops
- Connects to Windows PCs via SuperSpeed USB 3.0. USB bus power (no power adapter required).
- Adapter is backwards compatible with USB 2.0, but in most cases performance above 1080P over USB 2.0 will be unsatisfactory
- Supports DisplayPort displays up to 3840x2160@30Hz. 3440x1440 displays will refresh at 50Hz. 2560X1600, 2560x1440, 1920x1080 (1080P) and all lower modes will refresh at 60Hz
- Supports Windows 10/8.1/8/7. Mac OS X
- Linux/Unix are not supported
| Ordering Code | U-1380 |
|---|---|
| Description | USB DisplayPort 4K Adapter |
| Solution | DL5500 |
| Bus Type | USB 3.0 5Gbps |
| OS Driver Support | Windows 7/8/8.1/10/11 Mac OS X 10.8 or above |
| Connectors | 1x DisplayPort port 1x USB 5Gbps Type-A Male Upstream Port |
| Resolution | 3840x2160 @30Hz |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 93L x 40W x 15H mm | Cable 150mm |
| Package content | 1x USB DisplayPort 4K Adapter 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 40L x 36W x 31H cm G.W: 6.5 Kg ; N.W: 5.9 Kg |
Manual :
U-1380 User Manual
↧ DownloadDriver :
DL-3xxxDL-5xxxDL-6xxx_Windwos.zip
↧ DownloadDL-3xxxDL-5xxxDL-6xxx_macOS.zip
↧ Download
