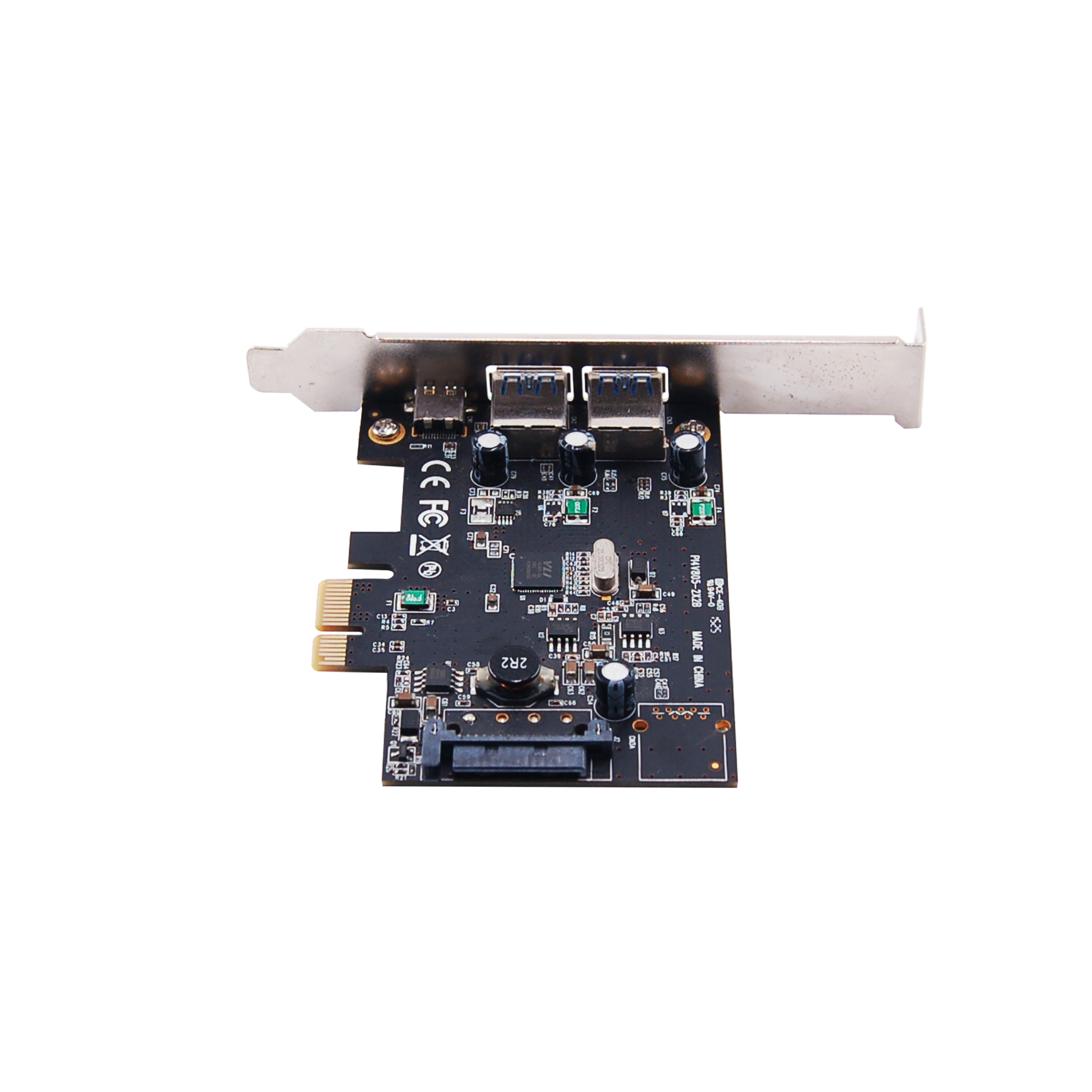

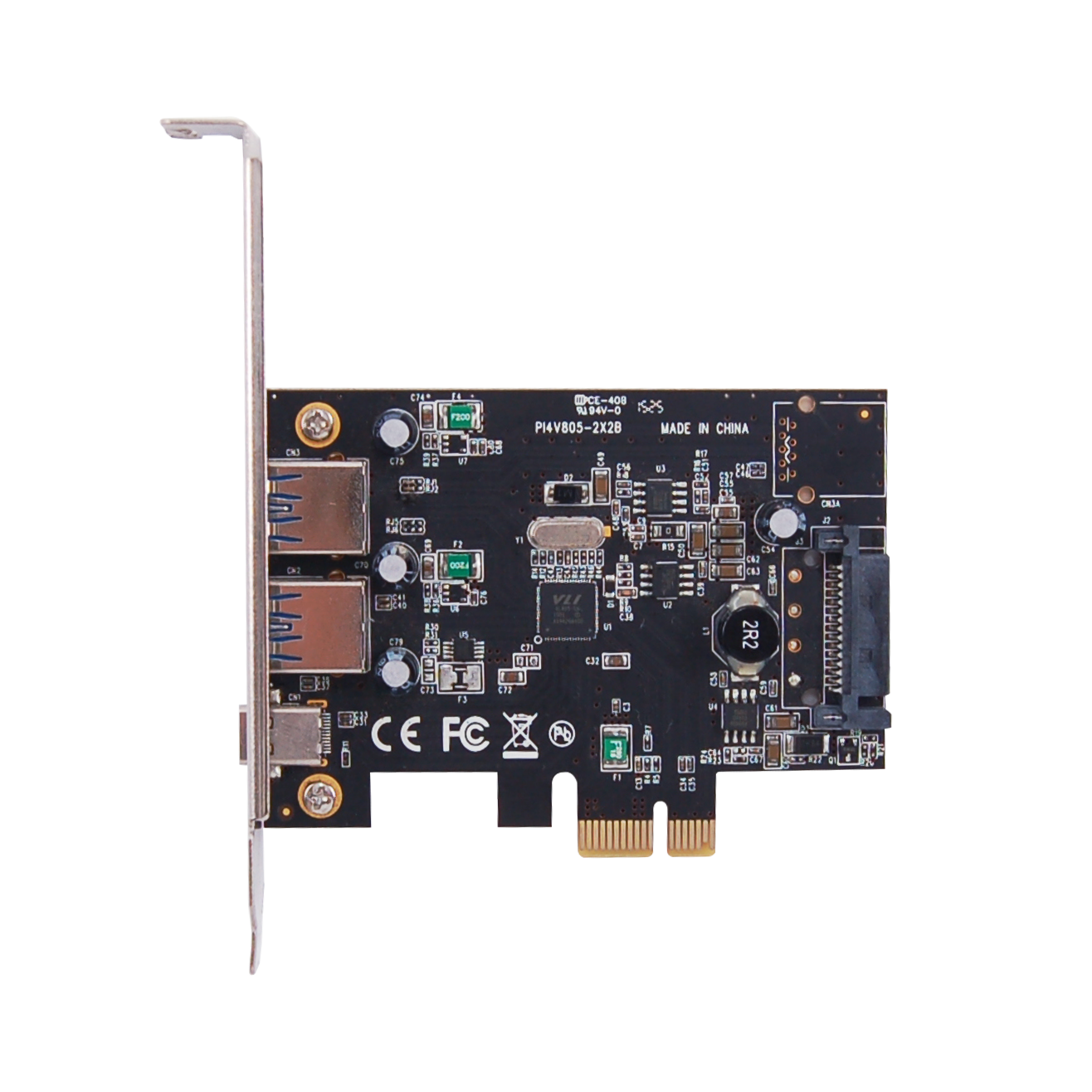

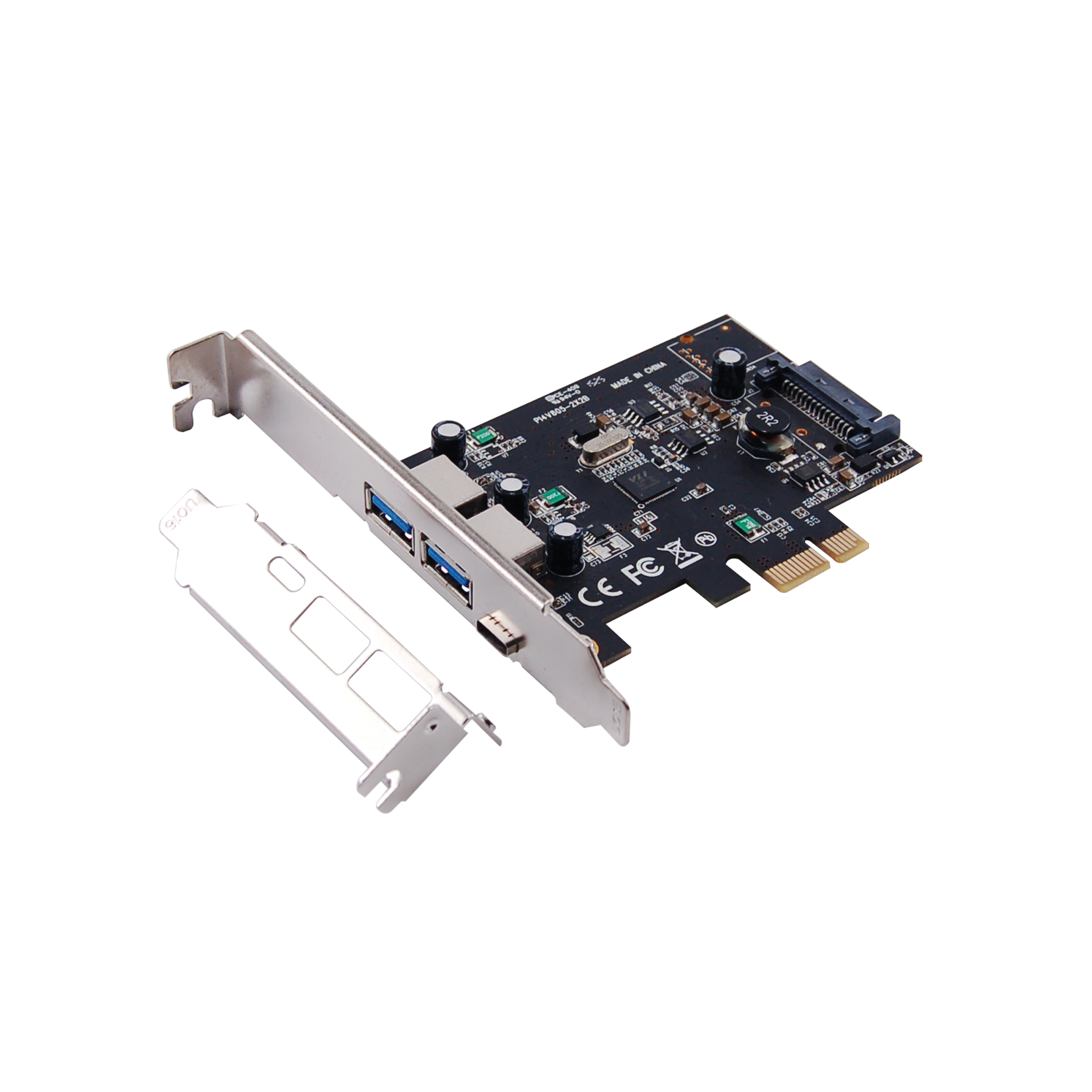

U-1340 PCIe USB3.1 Gen 1 3-Ports Card(2A+1C)

2015/09/06

2 x USB 5Gbps Type-A port
1 x USB 5Gbps Type-C port

  • Ordering Code: U-1340
  • Part No: IE-V25-1230-00-00012
  • Solution: VL805

U-1340 is a USB 3.1 Gen1 HBA. It comes with two external USB-A and a new generation USB-C connectors.

USB-C is reversible and so no need to worry which direction to plug in.

USB-C is also better than USB-A that it increases the current from 900mA to 3A.

More devices will be supported in bus-powered mode and charging will be much faster.

For new MacBook and the new Chromebook Pixel user, your USB-C accessories will also work in your PC.


Features

Fully compliant with PCI Express Base Specification Revision 2.0

Single-lane (x1) PCI Express throughput rates up to 5 Gbps

Compliant with Universal Serial Bus 3.0 specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 0.96

Supports two port USB 3.1 Type-A and one port USB 3.1 Type-C

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements

Windows 7/8/8.1/10 (32/64 bit)

One available PCI Express slot (Recommend PCI Express 2.0)



Package Contents

1 x USB 3.1 Gen1 Host Adapter

1 x Driver CD

1 x User Manual

Note: Contents may vary depending on country/market.



Packing Information:

* Retail Blister

* 40 pcs. Per carton

* Measurment: 56.5 x 36.1 x 43 cm

* G.Weight: 7.6 Kg ; N.Weight: 6.1 Kg
