U-1190 USB 5Gbps Type-C Mini Docking StationEOL

Get a Quote ✎

2015/06/11

2x USB 5Gbps Type-A Ports
1x HDMI Port
1x DVI Port
Resolution 2048 x 1152

Ordering Code: U-1190
Part No: U3-C37-DS20-11-00012
Solution: VL812+DL3900

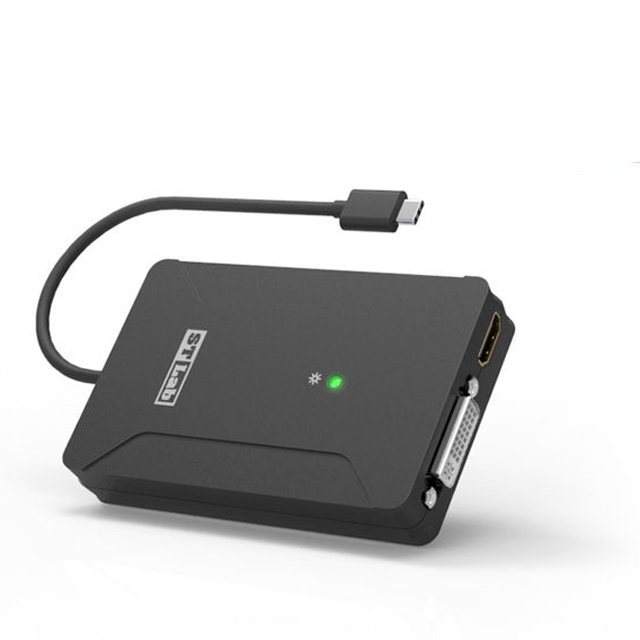

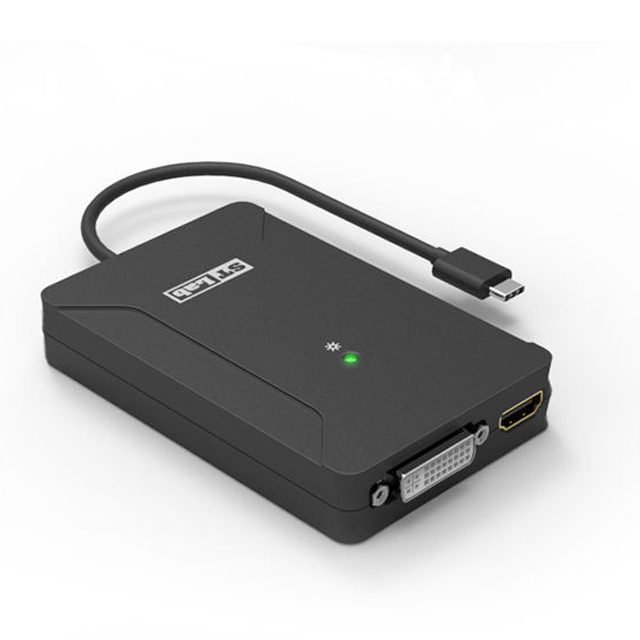

This USB 3.1 Type-C to Dual Video Docking Station is designed to expand connectivity to your Ultrabook or Hybrid tablet/laptop via single USB Type-C port. It features dual display ports (1 HDMI and 1 DVI) to enable your system's display capability, supporting HD resolution and multiple display modes including primary, extended and mirrored. This USB 3.1 Type-C to Dual Video Docking Station offers 2 USB 3.0 ports to satisfy multiple device connectivity needs.

Features

Easy Installation
An ideal solution for expanding the connectivity of Laptop, Ultrabook and Macbook
Adds dual displays and 2 USB 3.0 ports to your USB 3.0 enabled system
Compatible with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification
Extended Desktop (Default), Mirror Desktop, Primary Display
High resolutions for display up to 2048 x 1152

Ordering Code	U-1190
Description	USB 5Gbps Type-C Mini Docking Station
Solution	VL812+DL3900
Bus Type	USB 5Gbps
OS Driver Support	Windows 7/8/8.1/10 (32/64 bit) macOS X 10.8 or above
Connectors	2x USB 5Gbps Type-A Ports 1x HDMI Port 1x DVI Port
Data Rates	USB 5Gbps
Resolution	2048 x 1152
Operating Temperature	0℃ – 45℃
Storage Temperature	-10℃ – 50℃
EMC Standards	CE, FCC
Dimensions	N/A
Package content	1x USB 5Gbps Type-C Mini Docking Station 1x User Manual
Packing Information	Retail Box Packing 50 pcs/Carton Measurment: 74L x 36W x 24H cm G.W: 7 Kg ; N.W: 6 Kg
