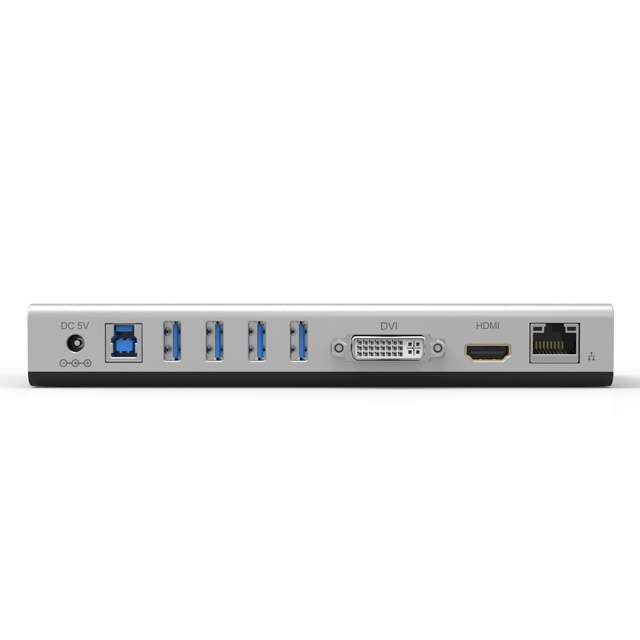

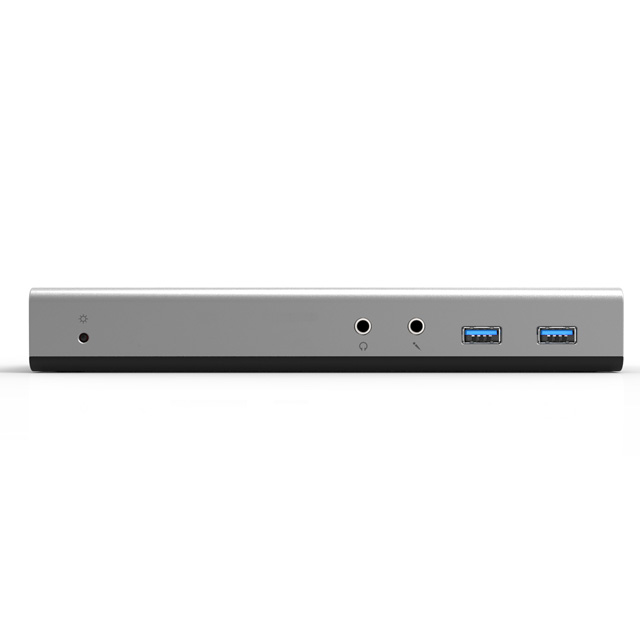

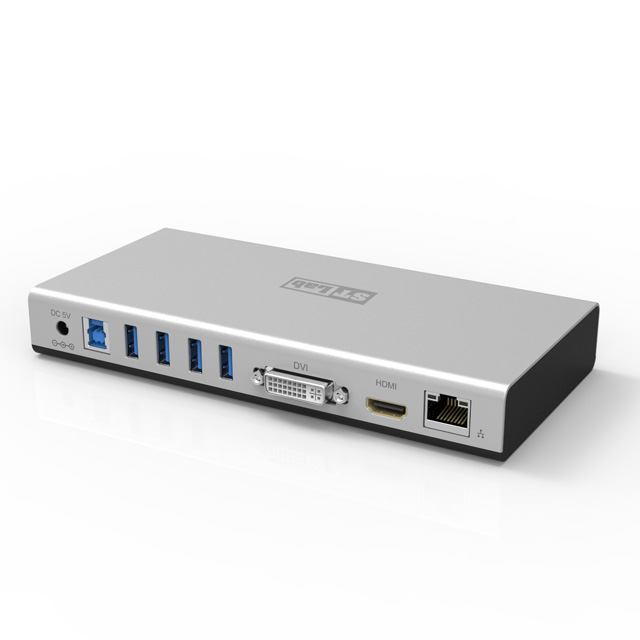

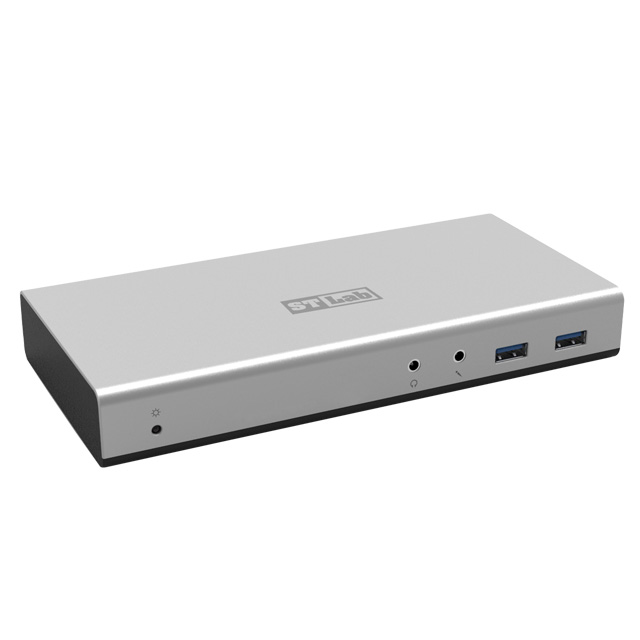

U-1170 USB 3.1 Gen1-C Dock


1 x RJ45 Ethernet port
6 x USB 5Gbps Type-A port
1 x HDMI port
1 x DVI port
1 x MIc. in
1 x Audio Out

  • Ordering Code: U-1170
  • Part No: U3-C31-DS11-21-00013
  • Solution: VL811P+DL3900

This USB 3.1 Type-C to Dual Video Docking Station enables multiple USB devices to be connected to the computer using a single USB 3.1 Type-C cable. Now with one simple cable connection to your computer you can have access to large screen display, stereo speakers, SD & MicroSD card reader (model dependent), external hard drive, optical disk drive, printer, USB keyboard and more.

Just plug in the USB 3.1 Type-C to Dual Video Docking Station to available USB Type-C port on your laptop and your displays and accessories will be active in seconds. To undock, simply unplug the one cable and go.


Easy Installation

An ideal solution for expanding the connectivity of Laptop, Ultrabook and Macbook

Add up to 6 x USB 3.0 ports (model dependent) / Dual Display / Gigabit Ethernet Connection / Audio In & Out / SD & MicroSD card reader (model dependent) to your Desktop PC / Ultrabook / Macbook system with one click on driver installation

Dual Display Support allow adding up two monitors for Extend / Mirror or Primary Display

Compatible with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification

HDMI and DVI ports for two external monitors supports display resolutions up to 2048x1152 / 1920x1200

Network port offers wired Gigabit Ethernet connectivity (also 10/100 capable)

Dedicated slot for SD and MicroSD card reader (Support SD and MicroSD at a time)

Audio out to support 2.1 & virtual 5.1 channel sound & a MIC jack


System Requirements

Windows 7/8/8.1/10 (32/64 bit); Mac OS X 10.8 or above

Available USB Type-C port


Package Contents

1 x USB 3.1 Type-C to Dual Video Docking Station

1 x USB 3.1 Type C Male to USB 3.0 B Type Cable

1 x User Manual

1 x Driver CD

1 x Power Adapter
