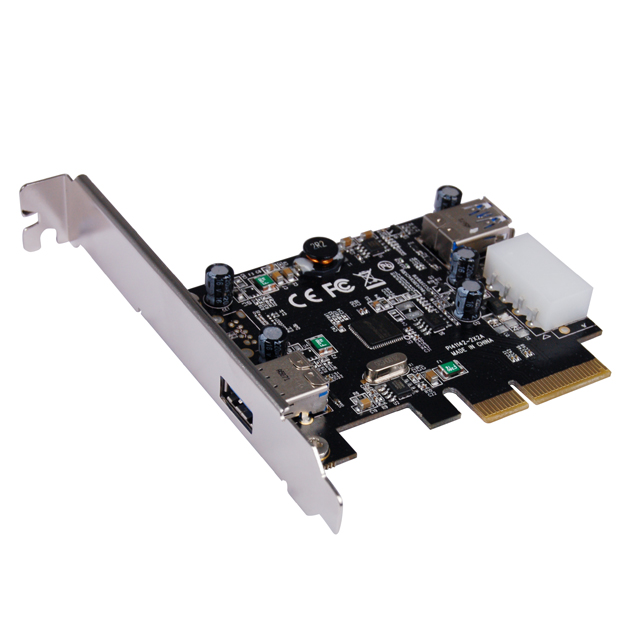

U-1140 PCIe 2-Port USB 10Gbps Host AdapterEOL
Get a Quote ✎
2015/03/31
- 1x USB 10Gbps Type-A Port
- 1x Internal USB 10Gbps Type-A Port
- Ordering Code: U-1140
- Part No: IE-A43-1211-00-00012
- Solution: ASM1142
U-1140 is the latest USB 3.1 Gen2 HBA. It doubles the bandwidth of USB 3.0 to a stunning 10Gbps. It comes with one external and one internal USB-A connector. Working with the latest PCIe Gen2 or Gen3 connector, the read speed can be over 500MB/s. Explore the new SuperSpeed+ experience now.
Features
- Compliant with PCI Express Base 3.0 Specification
- Support PCI Express Gen2 x2 or Gen3 x1
- Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
- Compliant with Universal Serial Bus Specification Revision 2.0
- Backward to compatible with USB 3.0/2.0/1.1 interface
- Up to 10 Gbps bandwidth performance with low latency
- Support two port of USB 3.1
- Compliant with eXtensible Host Controller Interface (xHCI) Specification Revision 1.1
- Support over current detection
| Ordering Code | U-1140 |
|---|---|
| Description | PCIe 2-Port USB 10Gbps Host Adapter |
| Solution | ASM1142 |
| Form Factor | PCIe x4 |
| Bus Width | PCIe 3.0 x1 or PCIe 2.0 x2 |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) |
| Total Bandwidth | 10Gbps |
| Connectors | 1x USB 10Gbps Type-A Port 1x Internal USB 10Gbps Type-A Port |
| Data Rates | USB Type-A 10Gbps |
| Operating Temperature | 0℃ – 60℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 100.3L x 120.9W x 21.6H mm |

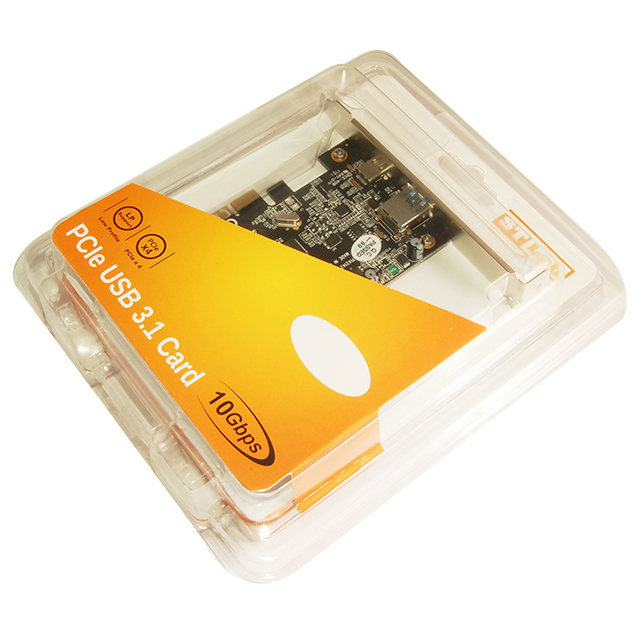

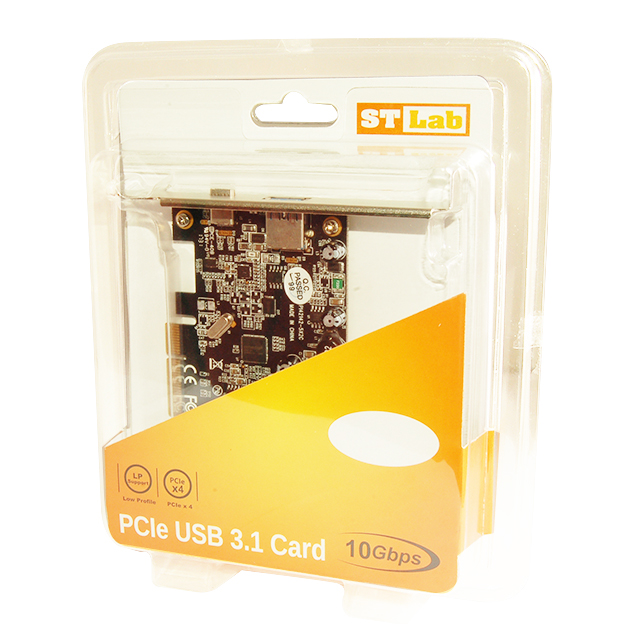

| Package Contents | 1x PCIe 2-Port USB 10Gbps Host Adapter 1x Low Profile Bracket 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 56L x 36W x 42H cm G.W: 7 Kg ; N.W: 6 Kg |
