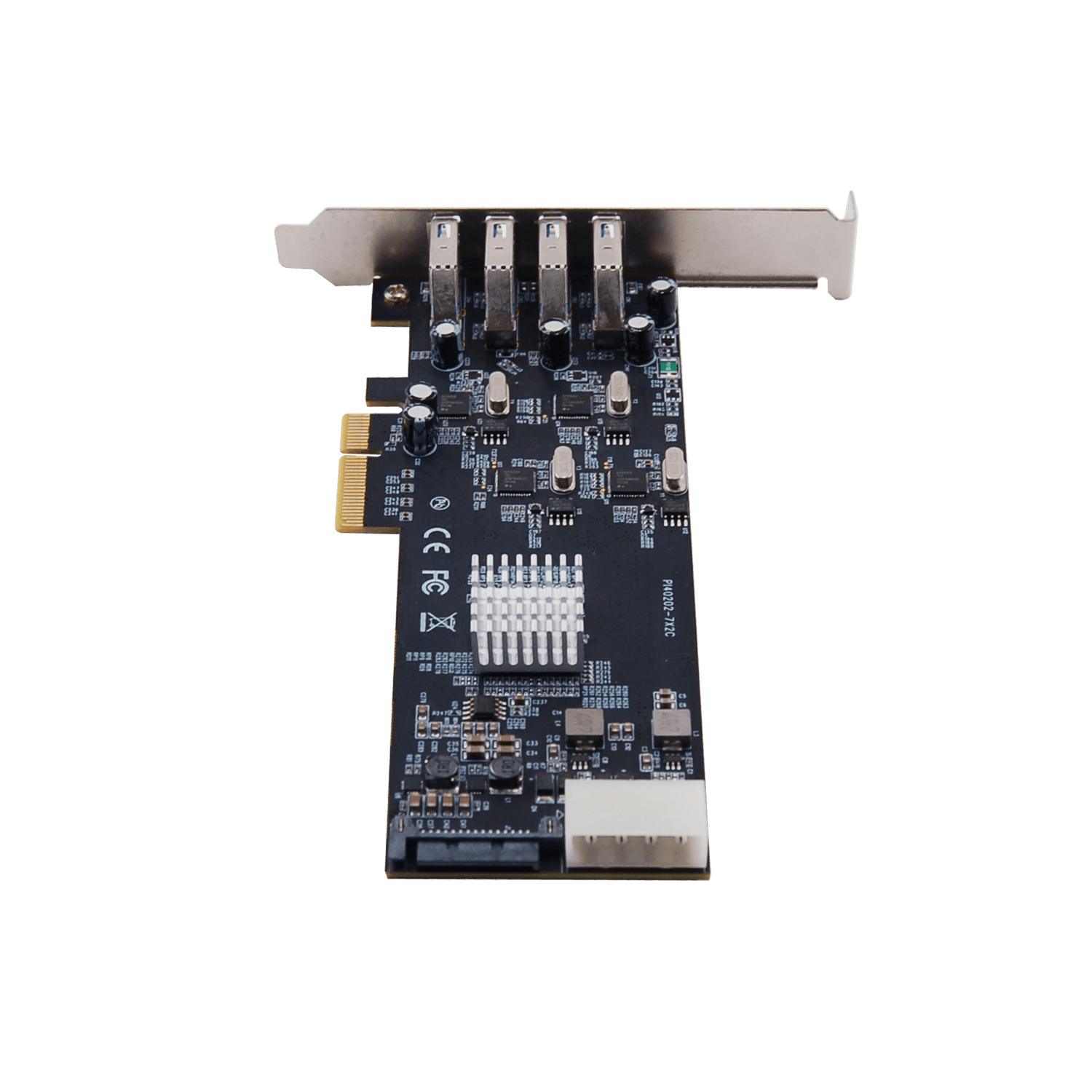

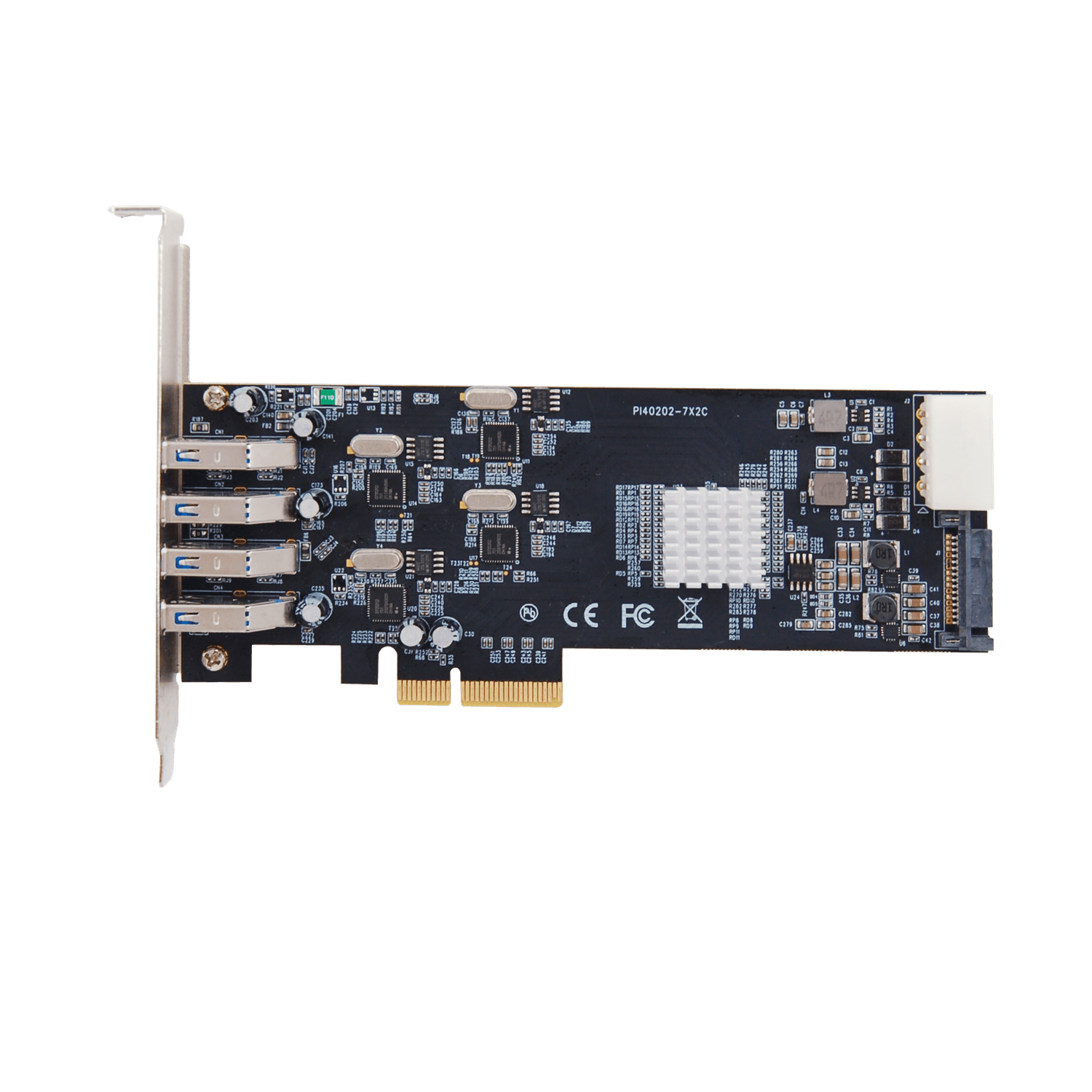

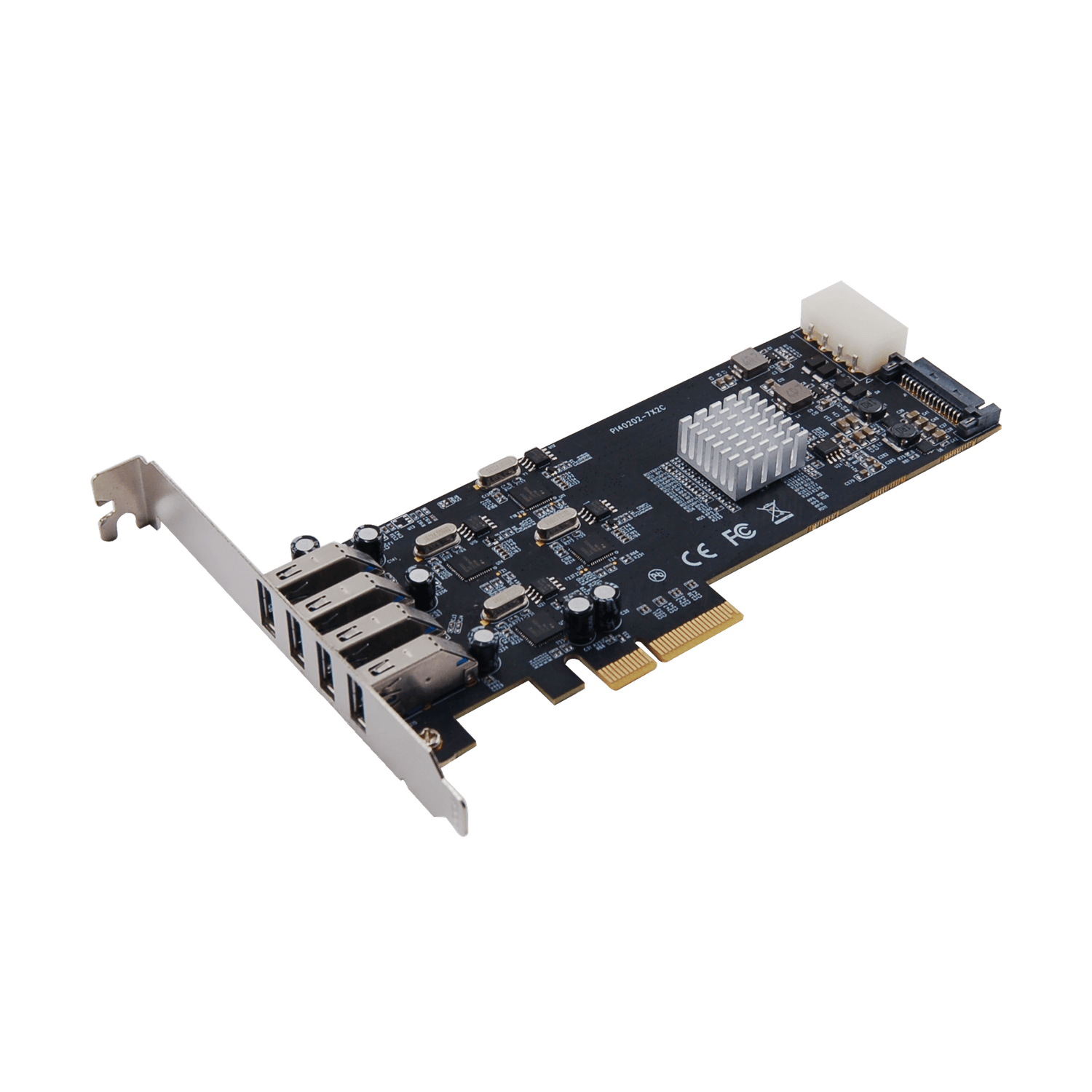

U-1010 PCIe Quad Bus USB 3.0 4-Port Card
Get a Quote ✎
2015/03/31
- 4x USB 5Gbps Type-A Ports
- Total Bandwidth 20Gbps
- PCIe 2.0 x4 Form Factor
- Ordering Code: U-1010
- Part No: IE-N54-1840-00-00012
- Solution: PI7C9X2G608+uPD720202 x4
U-1010 is an ultimate performance quad lane USB 3.0 HBA with bandwidth up to 20Gbps that can easily handle massive data transfer to/from high speed USB storage. Each of the four ports has 5Gbps bandwidth and supports USB Battery Charging 1.2. Copying is done in a split second.
Features
- PCI-Express 2.0x4
- Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s
- Complaint with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
- Supports the following speed data rates as follows:
- Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
- Supports 4 downstream ports for all speeds
- Built-in 4-pin power connector for receiving extra power supply from system
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
| Ordering Code | U-1010 |
|---|---|
| Description | PCIe Quad Bus USB 3.0 4-Port Card |
| Solution | PI7C9X2G608+uPD720202 x4 |
| Form Factor | PCIe 2.0 x4 |
| Bus Width | x4 lane PCI Express |
| OS Driver Support | Windows XP/Vista/7/8/8.1/10(32/64 bit) Windows Server 2008 R2 Linux 2.6.31 or later |
| Total Bandwidth | 20Gbps |
| Connectors | 4x USB 5Gbps Type-A Ports |
| Data Rates | USB Type-A 5Gbps |
| Support Low-Profile Bracket | Yes |
| Operating Temperature | 0℃ – 60℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 180.3L x 120.9W x 21.6H mm |

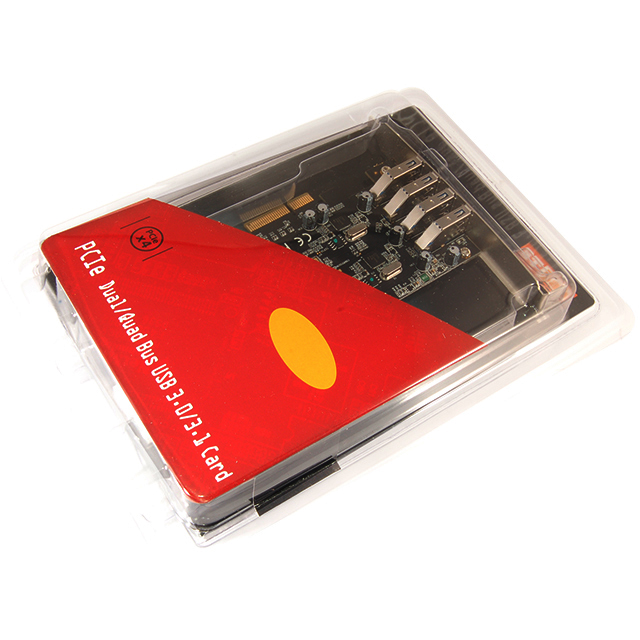

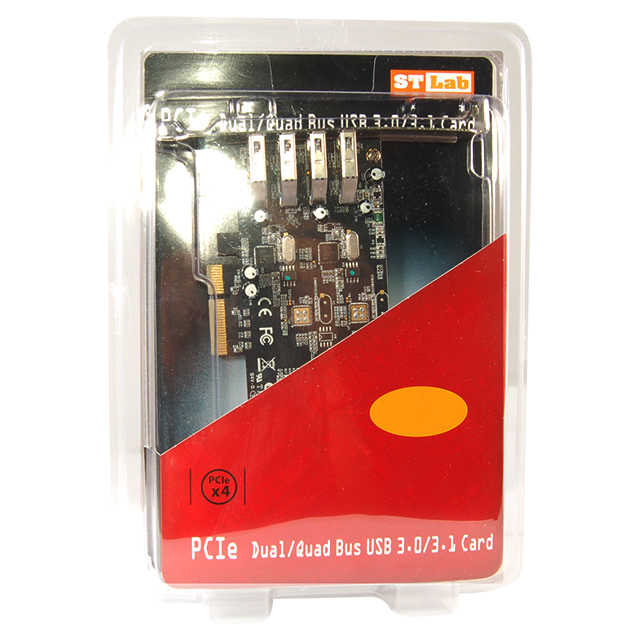

| Package Contents | 1x PCIe Quad Bus USB 3.0 4-Port Card 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 53L x 46W x 36H cm G.W: 8.8 Kg ; N.W: 7.8 Kg |
Manual :
U-1010 User Manual
↧ DownloadDriver :
upd720201_202_driver_firmware.zip
↧ DownloadQuestions & Answers :
Q: After installing the PCIe USB expansion card, Windows Device Manager displays Code 10 – "This device cannot start", and connected USB devices cannot be used
