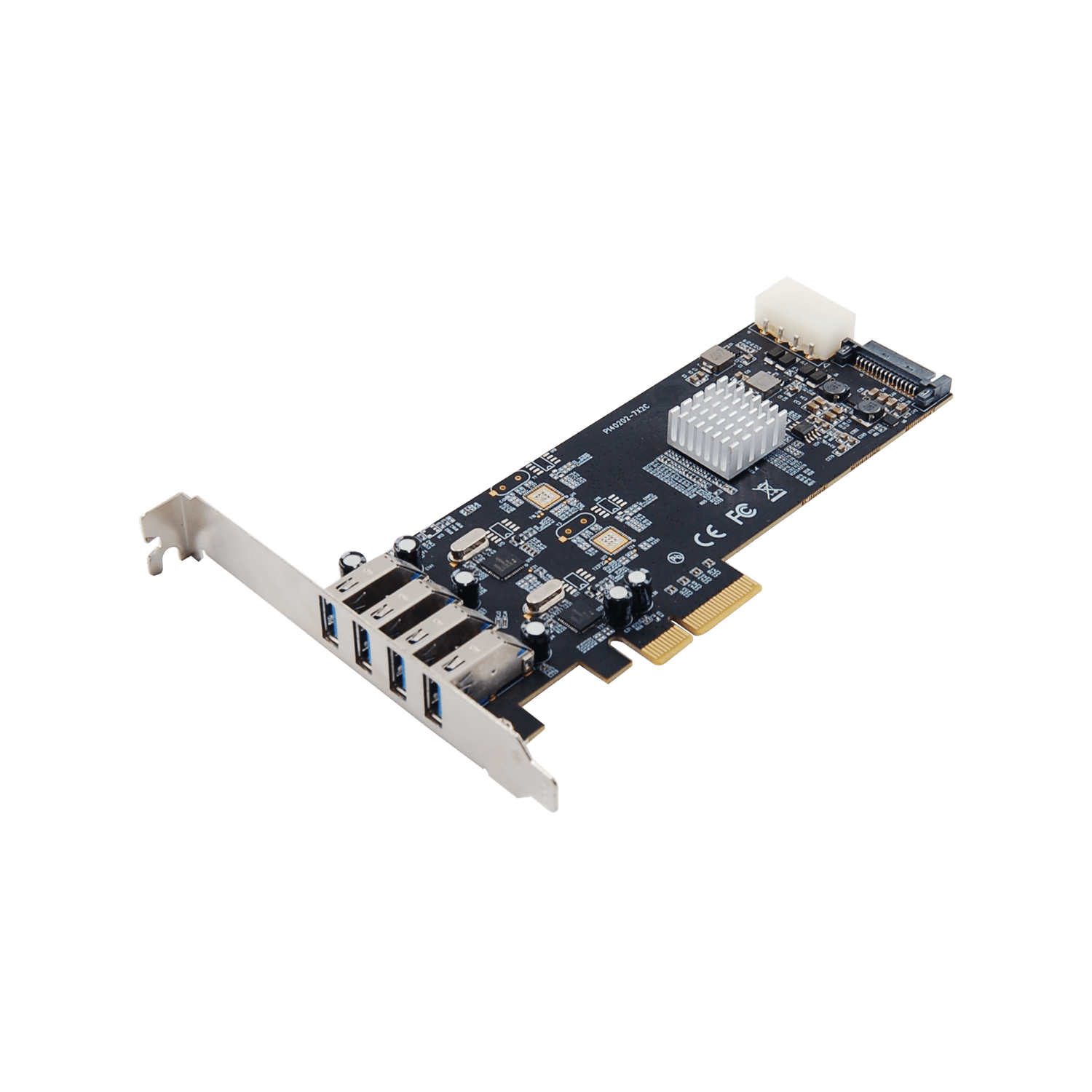

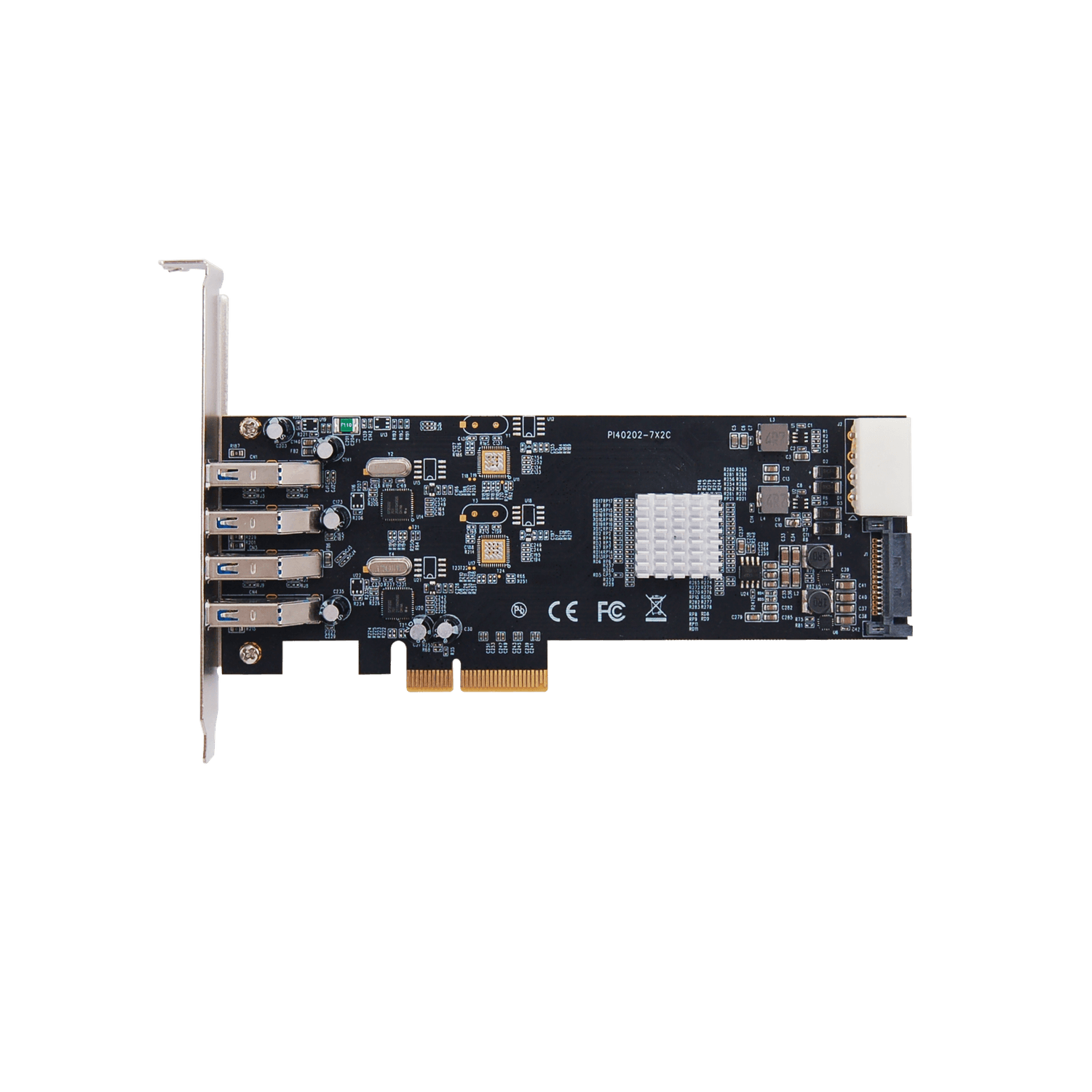

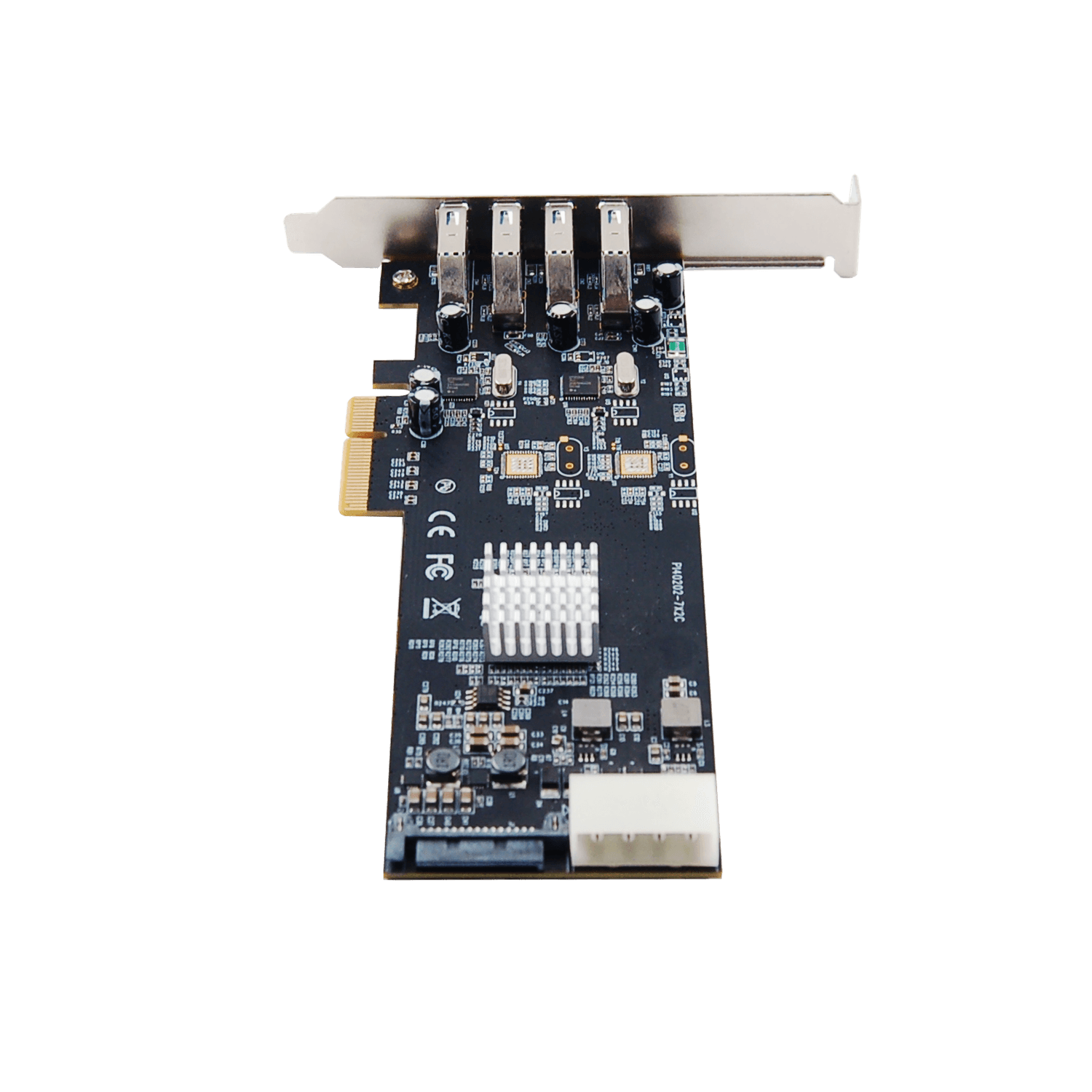

U-1000 PCIe Dual Core USB 3.0 4-Port Card

2015/31/03

4 x USB 5Gbps Type-A port
Bandwidth up to 10Gbps

  • Ordering Code: U-1000
  • Part No: IE-N54-1740-00-00012
  • Solution: PI7C9X2G608+uPD720202 x2

 U-1000 is a high performance dual lane USB 3.0 HBA with bandwidth up to 10Gbps which is ideal for massive data transfer to/from high speed USB storage.

Each set of two ports shares 5Gbps and all four ports support USB Battery Charging 1.2. Copying is done in a split second.



Features

PCI-Express 2.0x4

Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 10Gb/s

Complaint with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows:

Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 4 downstream ports for all speeds

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system



System Requirements

Windows XP/Vista/7/2008 R2/8/8.1/10 (32/64 bit), Linux 2.6.31 or later

PCI Express x4, x8 or x16 slots



Package Contents

1 x Dual Channel 4-Port USB 3.0 PCI Express Card

1 x Driver CD

1 x User Manual

Note: Contents may vary depending on country/market.



Packing Information:

* Retail Blister

* 40 pcs. Per carton

* Measurment: 52.7 x 45.5 x 35.5 cm

* G.Weight: 9.7 Kg ; N.Weight: 8.7 Kg
