N-700

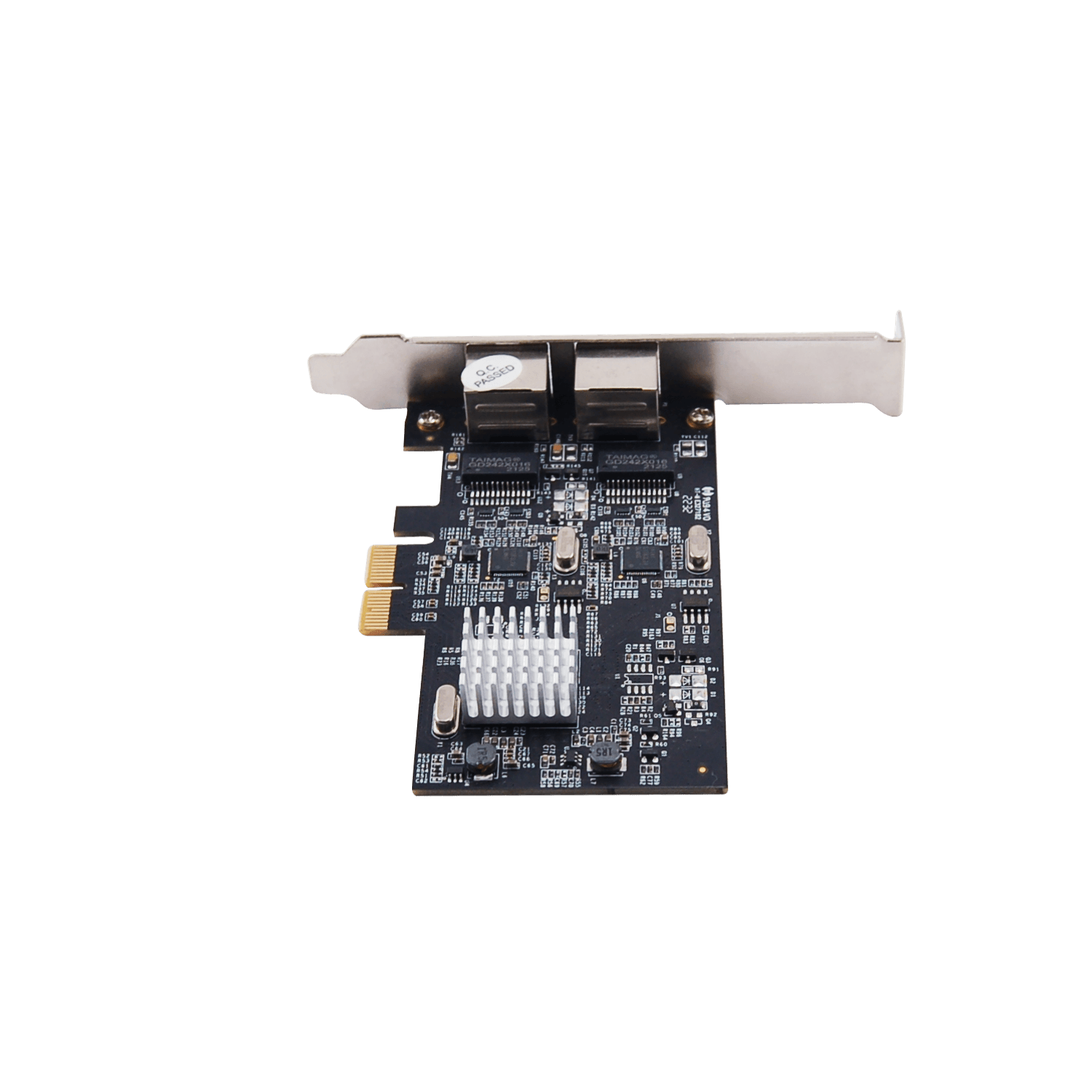

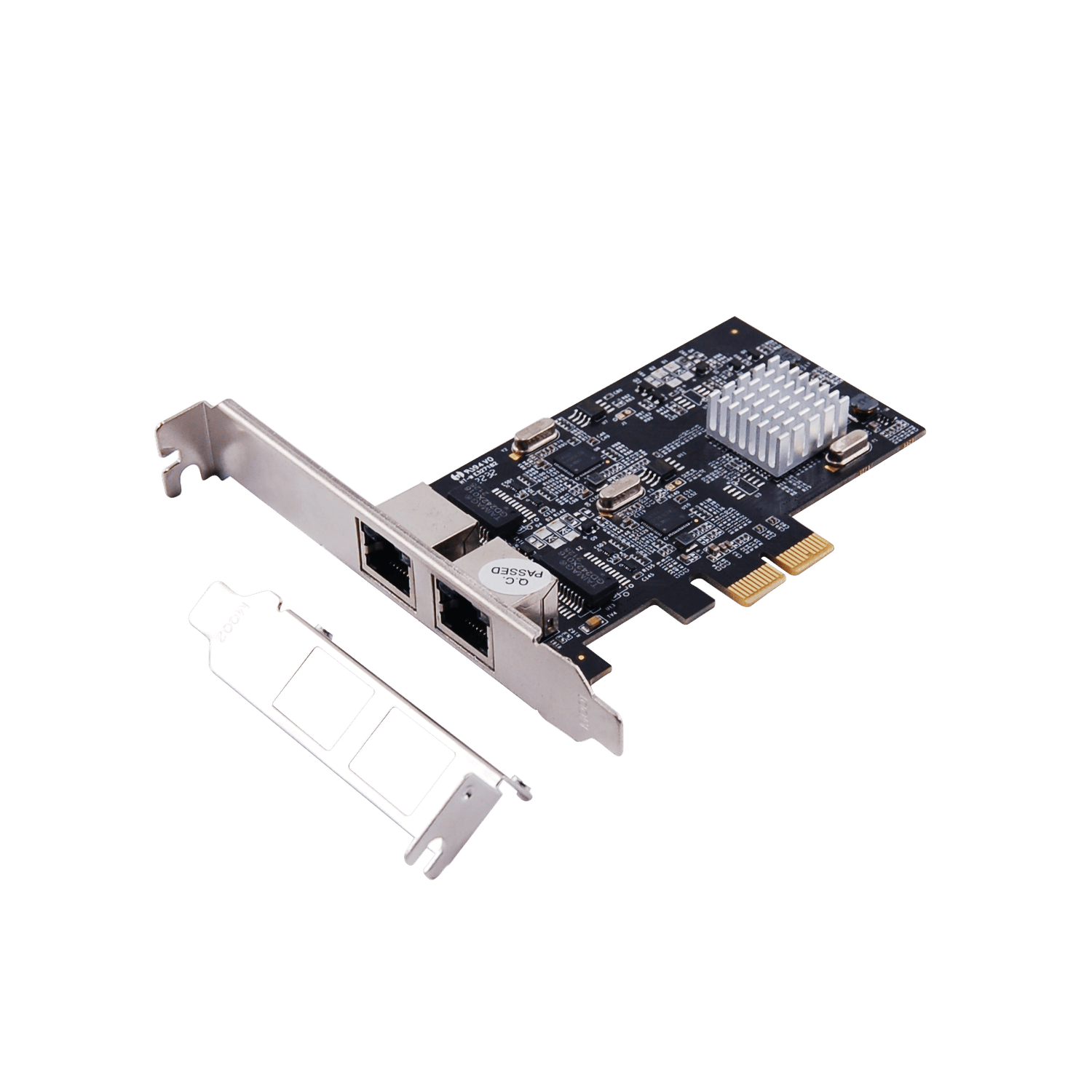

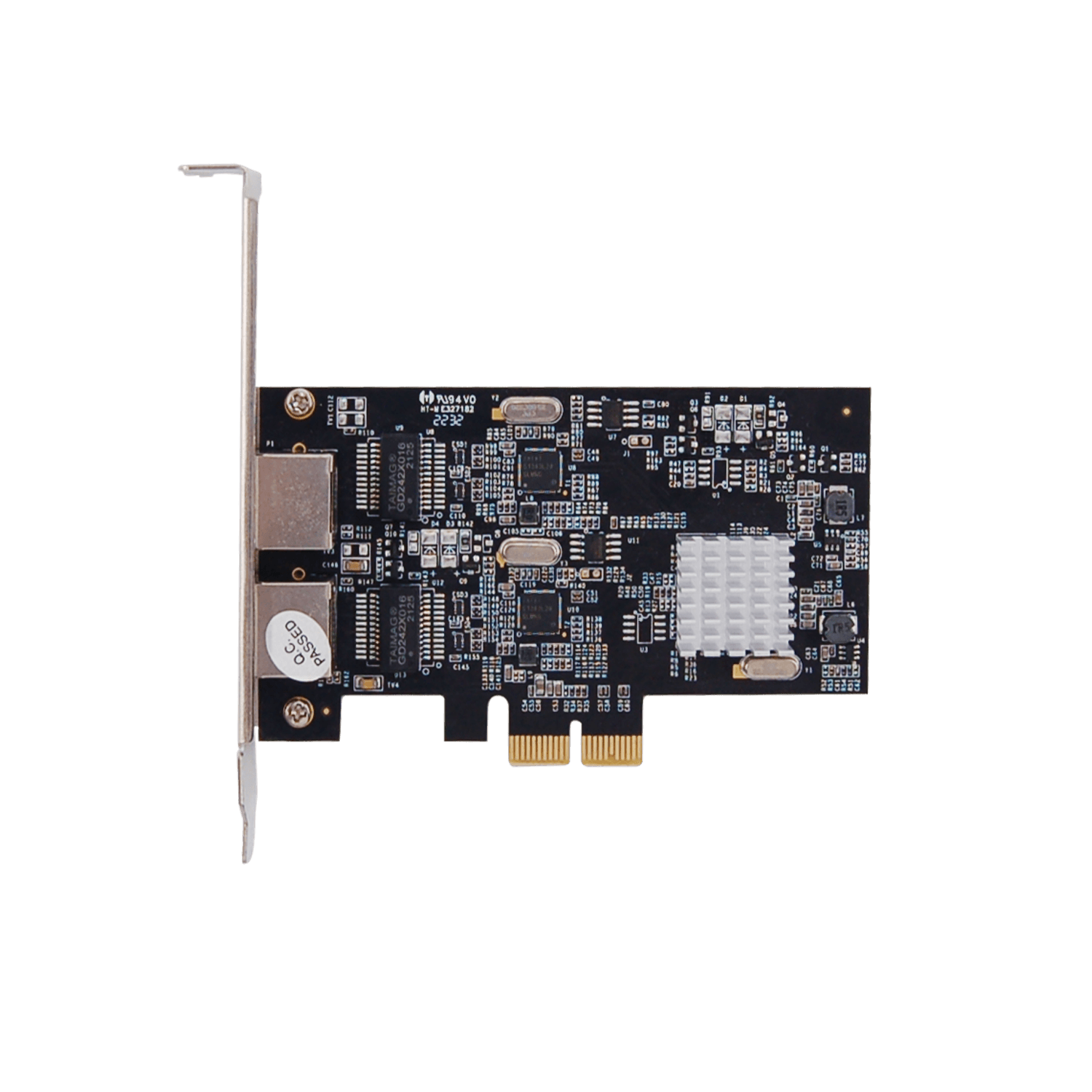

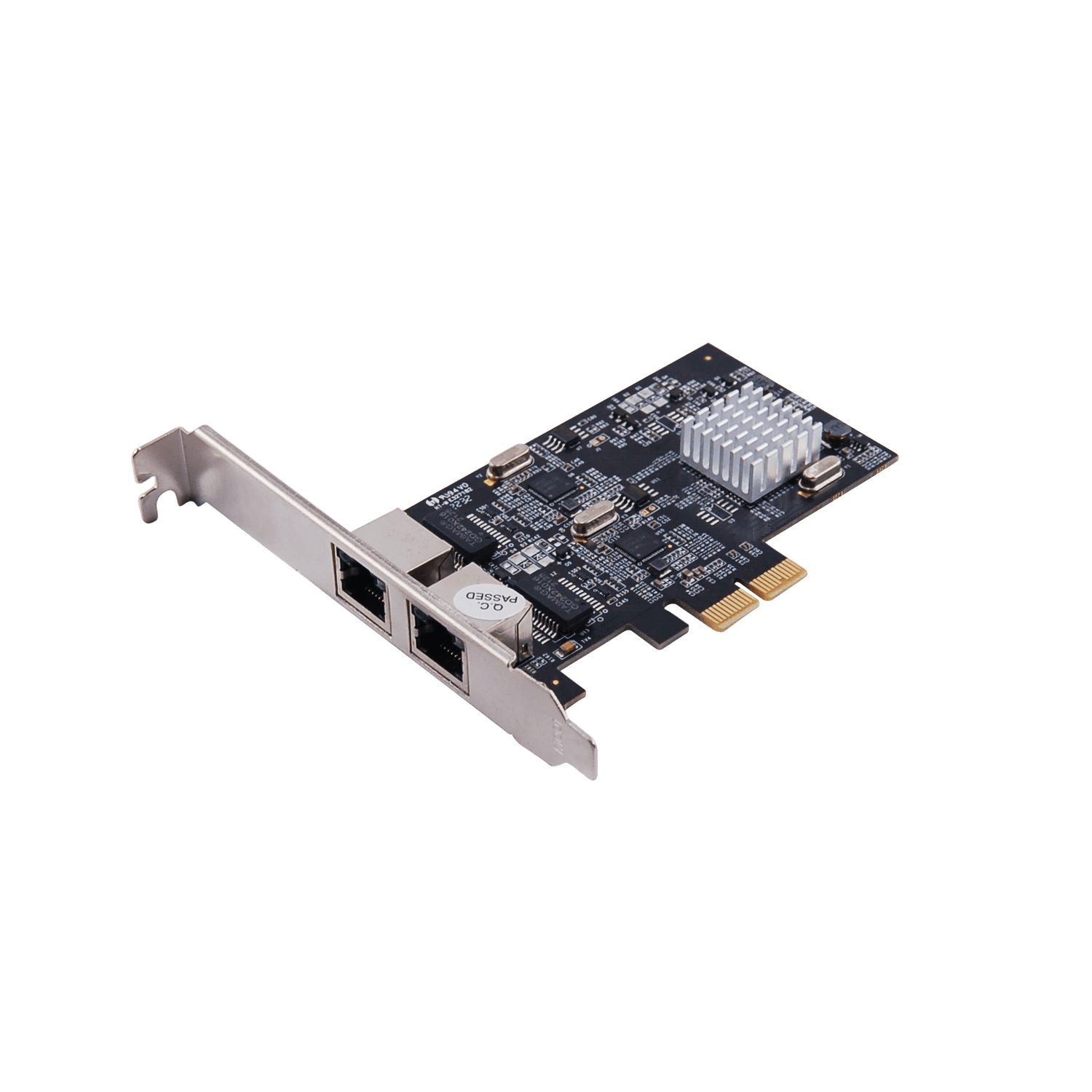

N-700 Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit Network Adapter

Get a Quote ✎
2020/10/27
  • 2x 2.5GbE RJ45 Ports
  • Wake-On-LAN
  • PCIe 2.0 x2 Form Factor
  • Ordering Code: N-700
  • Part No: NE-D30-2210-00-00012
  • Solution: Intel I225-V

Engineered for high-density networking and specialized edge deployments, the N-700 Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit Network Adapter delivers high-throughput connectivity for modern infrastructure. Powered by dual Intel I225-V controllers, this network adapter features two 2.5GbE RJ45 ports over a PCIe 2.0 x2 host interface, providing an ideal hardware foundation for link aggregation, soft routers, firewalls, and dedicated direct-attached NAS setups. Built for maximal transmission efficiency, it supports 9K Jumbo Frames to streamline data transfers while significantly lowering host CPU utilization. Hardware-level UDP, TCP, and IP Checksum Offload functions optimize overall protocol processing performance, while integrated Energy Efficient Ethernet (EEE) standards minimize operational power consumption without compromising signal integrity or network stability.

Features

  • PCIe x2 form factor compatible with x4, x8 and x16 PCI Express slots
  • Supports 10/100/1000/2500 Mbps Ethernet
  • Supports Preboot eXecution Environment (PXE)
  • LED indicators indicate status of link/ activity and speed
  • Supports Jumbo Frames up to 9K
  • Supports WOL
Ordering CodeN-700
DescriptionIntel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit Network Adapter
SolutionIntel I225-V
Form FactorPCIe 2.0 x2
Bus Widthx2 lane PCI Express
OS Driver SupportWindows 10 RS5 or later (64-bit) Windows 11 Linux kernel 5.8 later
Connectors2x 2.5GbE RJ45 Ports
Data Rates2.5Gb/1Gb/100Mb/10Mb Ethernet
Support Low-Profile BracketYes
Operating Temperature0°C – 60°C
Storage Temperature-20°C – 70°C
EMC StandardsCE, FCC
Dimensions123.3L x 120.9W x 21.6H mm
Package Contents1x Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit Network Adapter 1x Low-Profile Bracket 1x User Manual
Packing InformationRetail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 3.7 Kg ; N.W: 3.2 Kg

Datasheet :

N-700-datasheet.pdf 2026/09/08
↧ Download

Manual :

N-700 User Manual 2020/10/27
↧ Download

Driver :

Intel_2.5GbE_Windows.zip 2026/08/20
↧ Download

Related Products

N-930

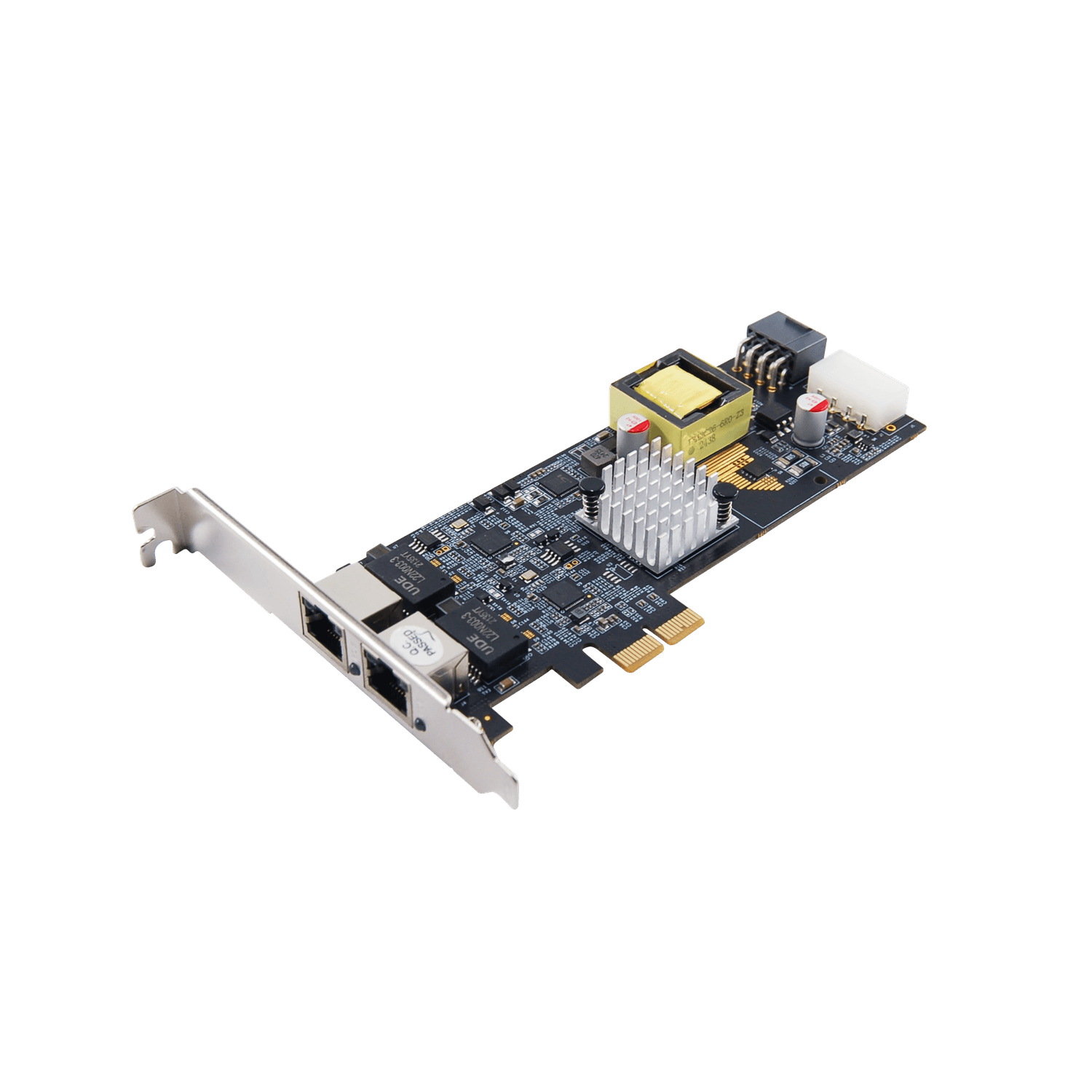

N-930 Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit PoE Network Adapter

Ordering Code: N-930
Part No: NE-D30-2220-00-00012
Solution: Intel I225-V

N-1320

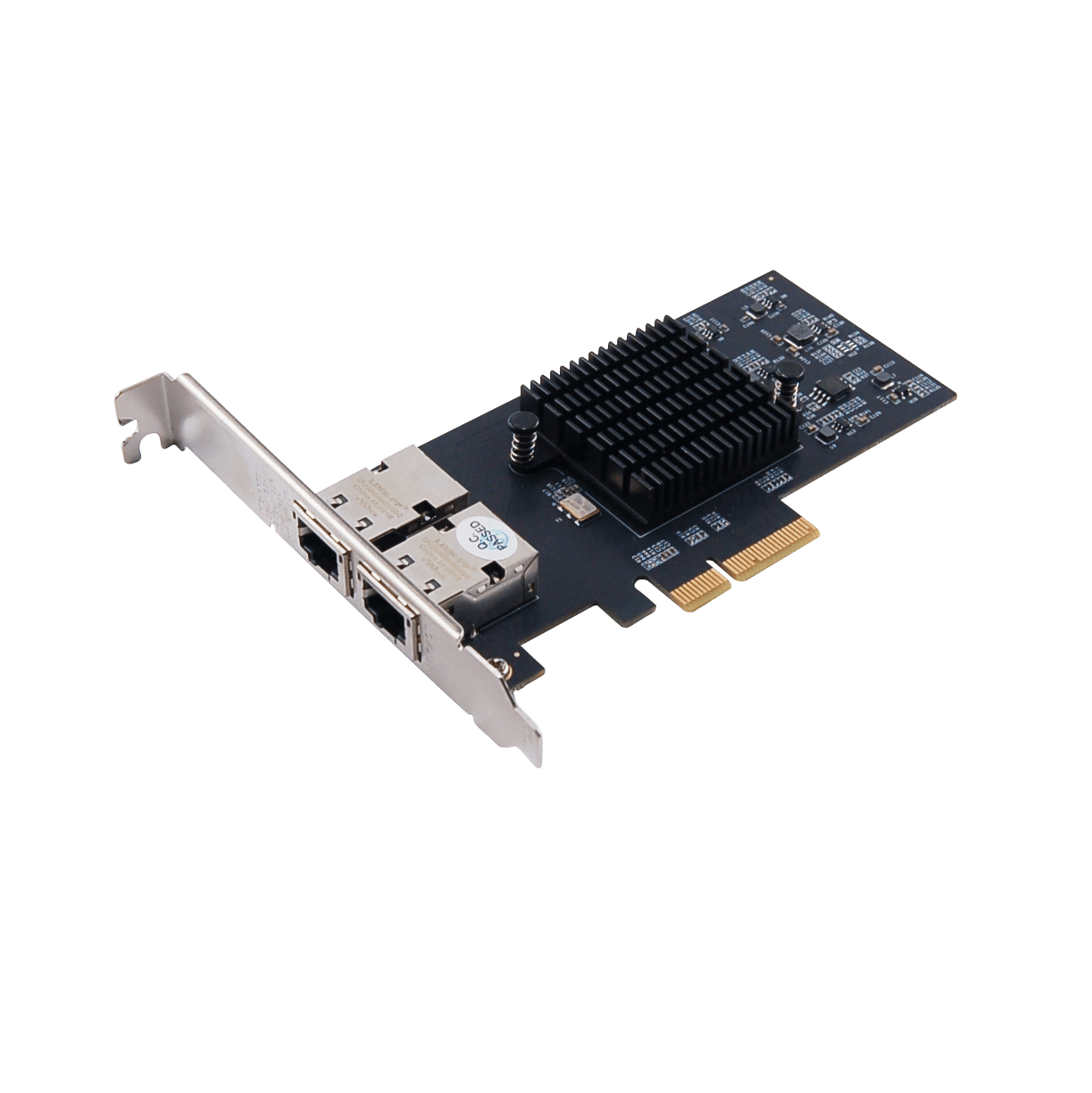

N-1320 Intel PCIe 2-Port 10G 5-Speed Multi-Gigabit Network Adapter
