N-690

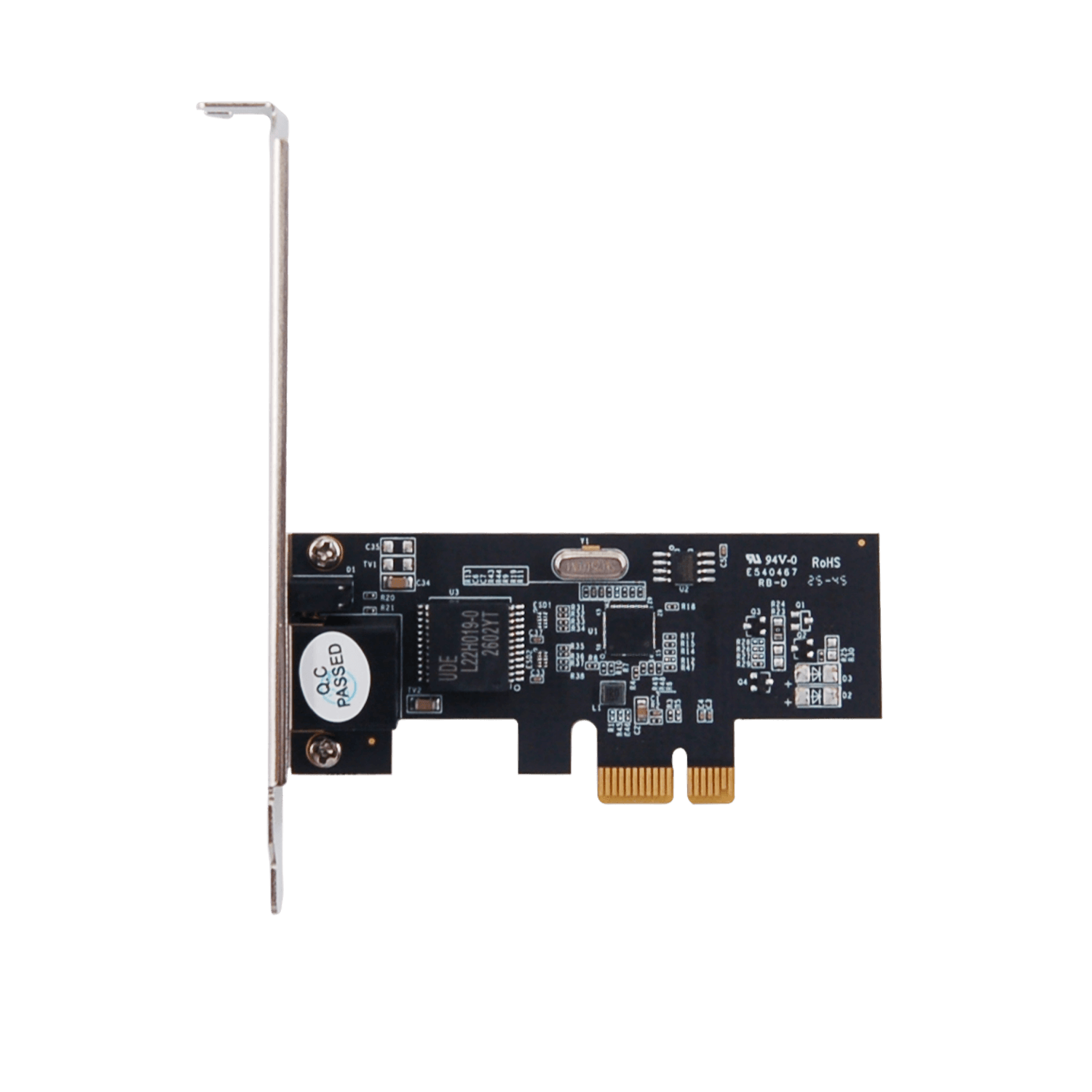

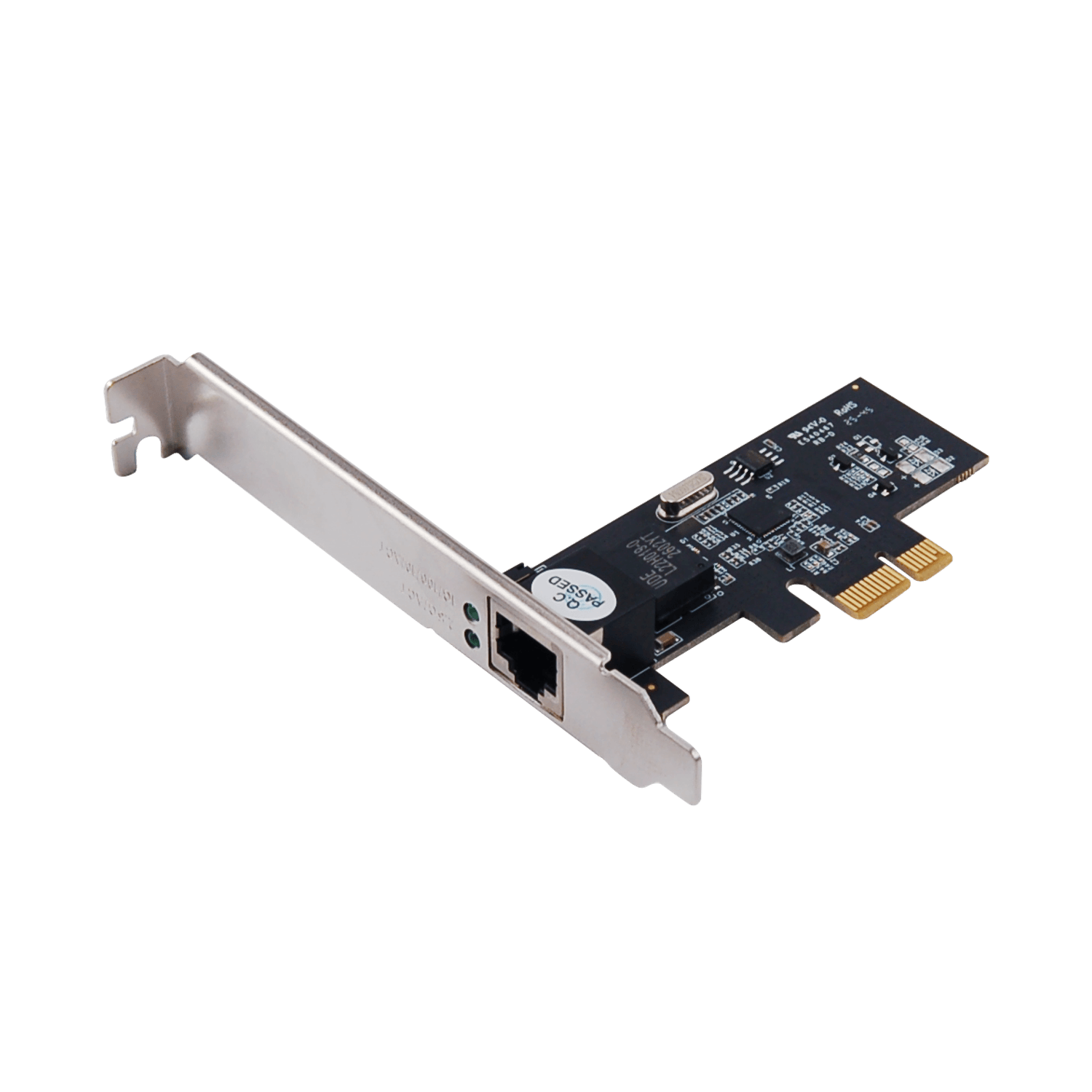

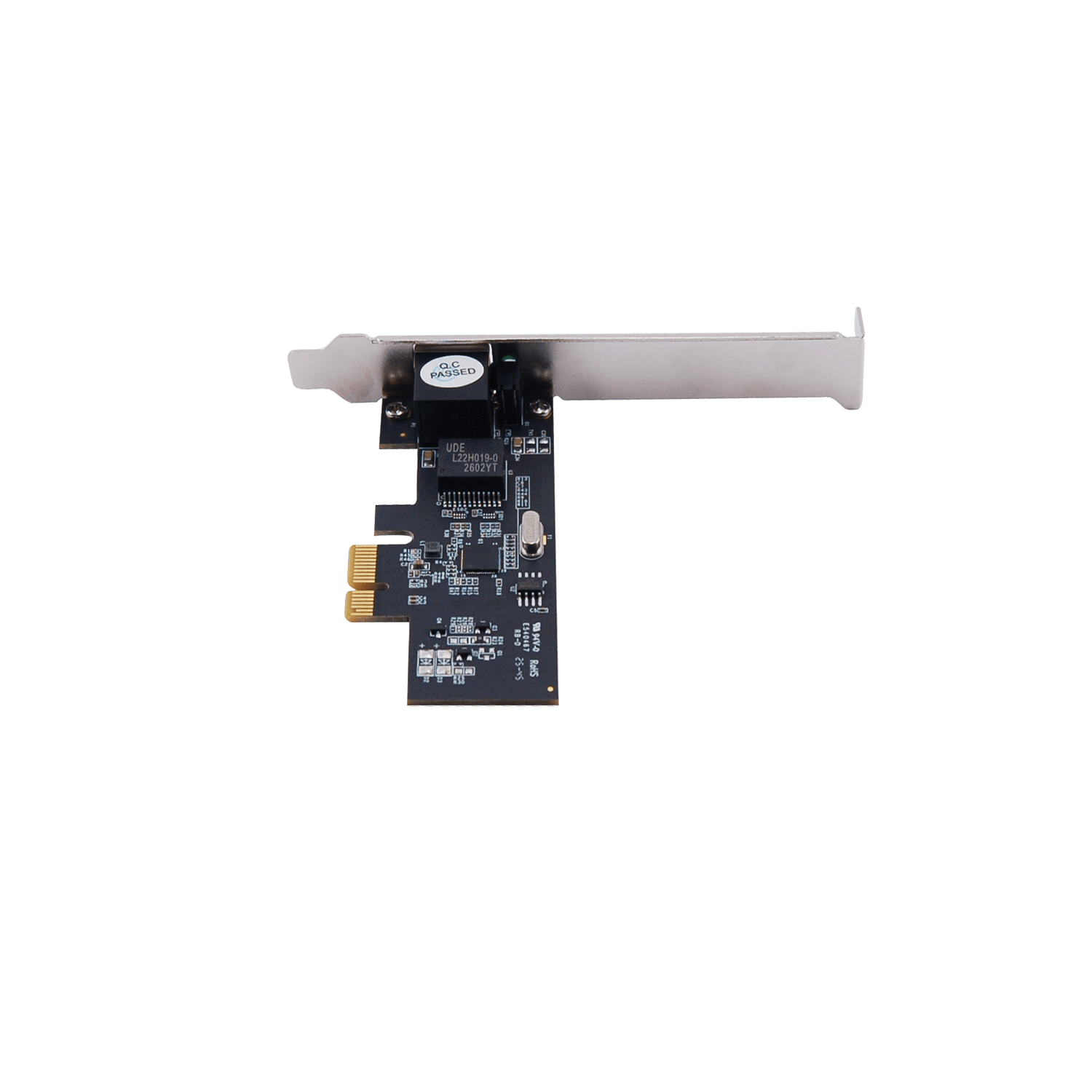

N-690 Intel PCIe 2.5G 4-Speed Multi-Gigabit Network Adapter

Get a Quote ✎
2020/10/27
  • 2.5GbE RJ45 Port
  • Wake-On-LAN
  • PCIe 2.0 x1 Form Factor
  • Ordering Code: N-690
  • Part No: NE-D30-2120-00-00012
  • Solution: Intel I225-V

Engineered for seamless network upgrades, the N-690 Intel PCIe 2.5G 4-Speed Multi-Gigabit Network Adapter provides reliable high-speed connectivity for next-generation computing infrastructure. Powered by the Intel I225-V chipset, this network adapter features a single 2.5GbE RJ45 port operating over a PCIe 2.0 x1 interface, making it an ideal drop-in solution to transition existing systems from legacy 1GbE to 2.5GbE performance. Built for optimized throughput and enterprise-grade reliability, it supports 9K Jumbo Frames to maximize data transfer efficiency and lower processing overhead. Integrated UDP, TCP, and IP Checksum Offload functions offload critical network tasks from the host CPU, while Energy Efficient Ethernet (EEE) standards minimize power consumption during lower operational loads

Features

  • Supports 10BASE-T, 100BASE-T, 1000BASE-T and 2.5GBASE-T
  • Supports 10/100/1000/2500 Mbps Ethernet
  • Compliant to PCIe 2.0
  • Supports Preboot eXecution Environment (PXE)
  • LED indicators indicate status of link/ activity and speed
  • Supports Jumbo Frames up to 9K
  • Supports WOL
  • No need to install drivers on Linux
Ordering CodeN-690
DescriptionIntel PCIe 2.5G 4-Speed Multi-Gigabit Network Adapter
SolutionIntel I225-V
Form FactorPCIe 2.0 x1
Bus Widthx1 lane PCI Express
OS Driver SupportWindows 10 RS5 or later (64 bits Only) Windows 11 Linux kernel 5.8 or later
Connectors1x 2.5GbE RJ45 Port
Data Rates2.5Gb/1Gb/100Mb/10Mb Ethernet

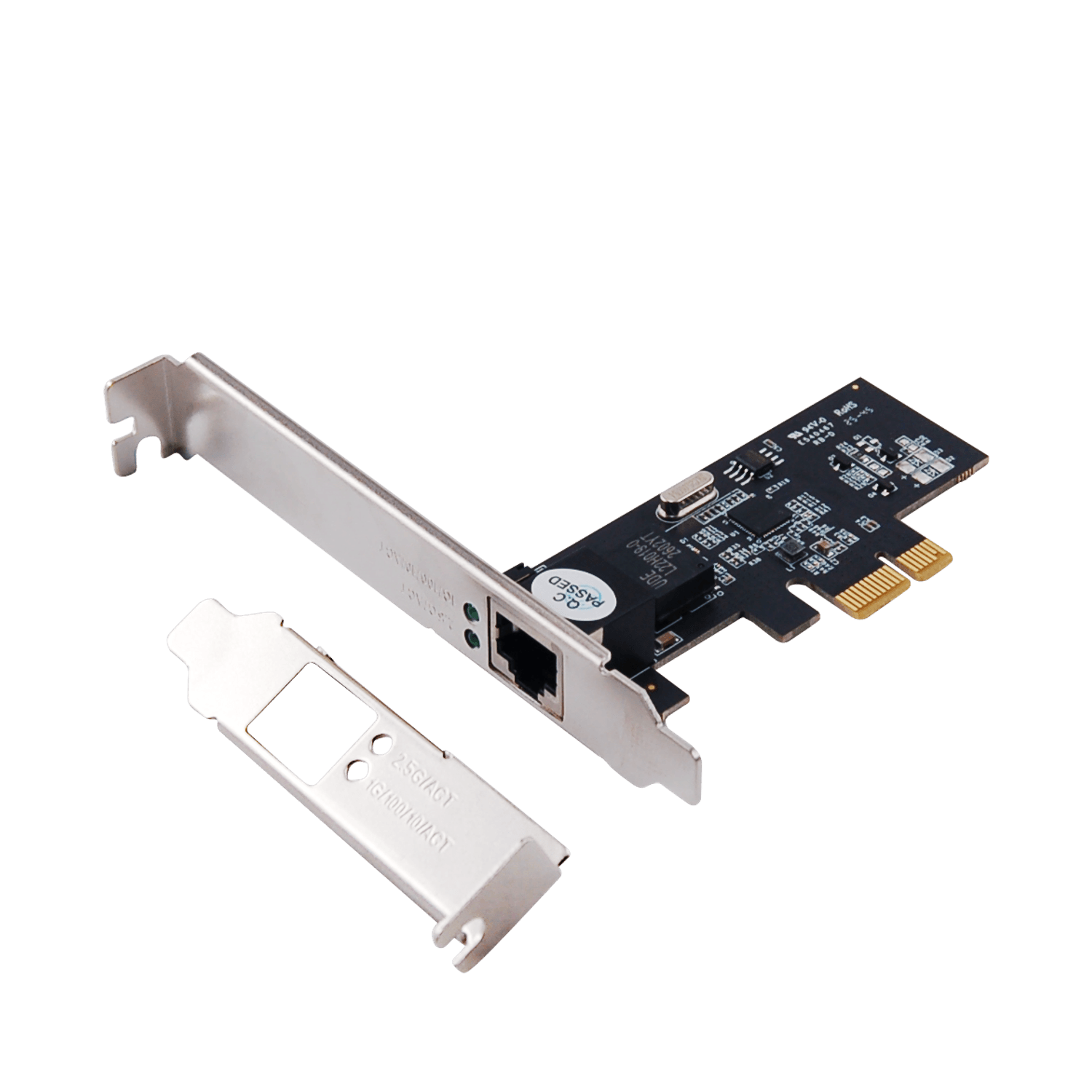

Support Low-Profile BracketYes
Operating Temperature0°C – 60°C
Storage Temperature-20°C – 70°C
EMC StandardsCE, FCC
Dimensions100.8L x 120.9W x 21.6H mm
Package Contents1x Intel PCIe 2.5G 4-Speed Multi-Gigabit Network Adapter 1x Low-Profile Bracket 1x User Manual
Packing InformationRetail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 3.2 Kg ; N.W: 2.7 Kg

Manual :

N-690 User Manual 2020/10/27
↧ Download

Driver :

Intel_2.5GbE_Windows.zip 2026/08/20
↧ Download

Related Products

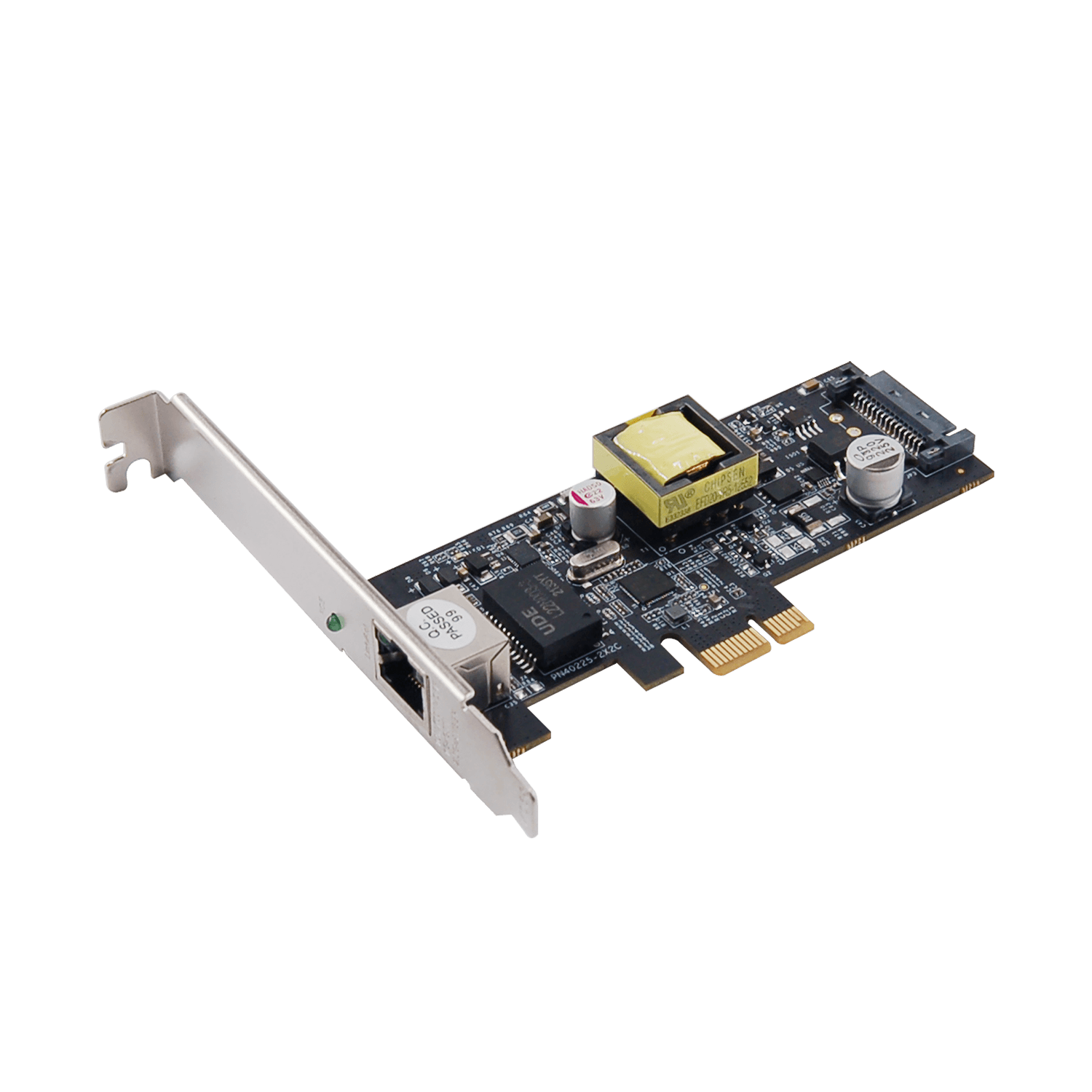

N-680

N-680 Intel PCIe 2.5G 4-Speed Multi-Gigabit PoE Network Adapter

Ordering Code: N-680
Part No: NE-D30-2110-00-00012
Solution: Intel I225-V

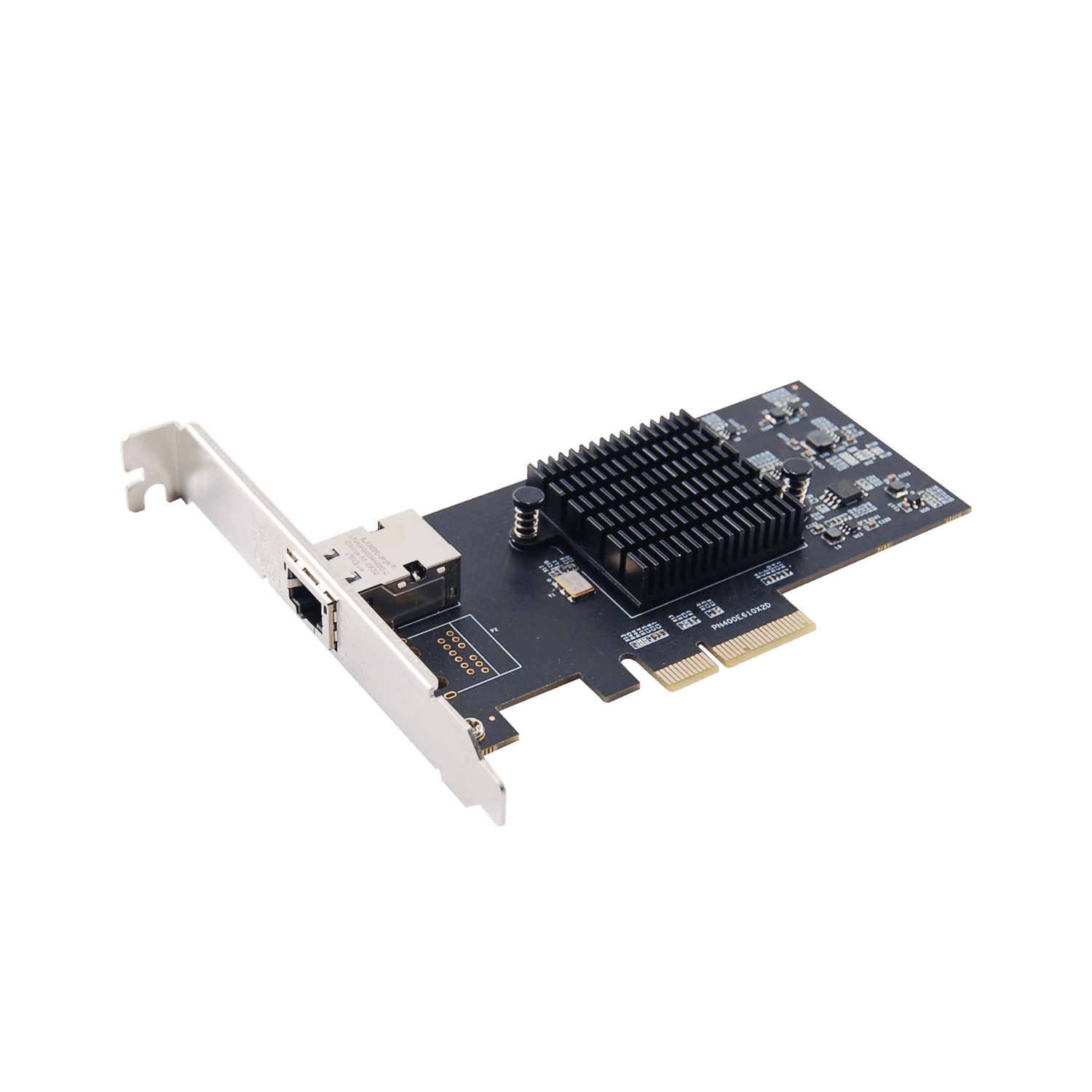

N-1310

N-1310 Intel PCIe 1-Port 10G 5-Speed Multi-Gigabit Network Adapter

Ordering Code: N-1310
Part No: NE-D38-1110-00-000102
Solution: Intel E610-XAT

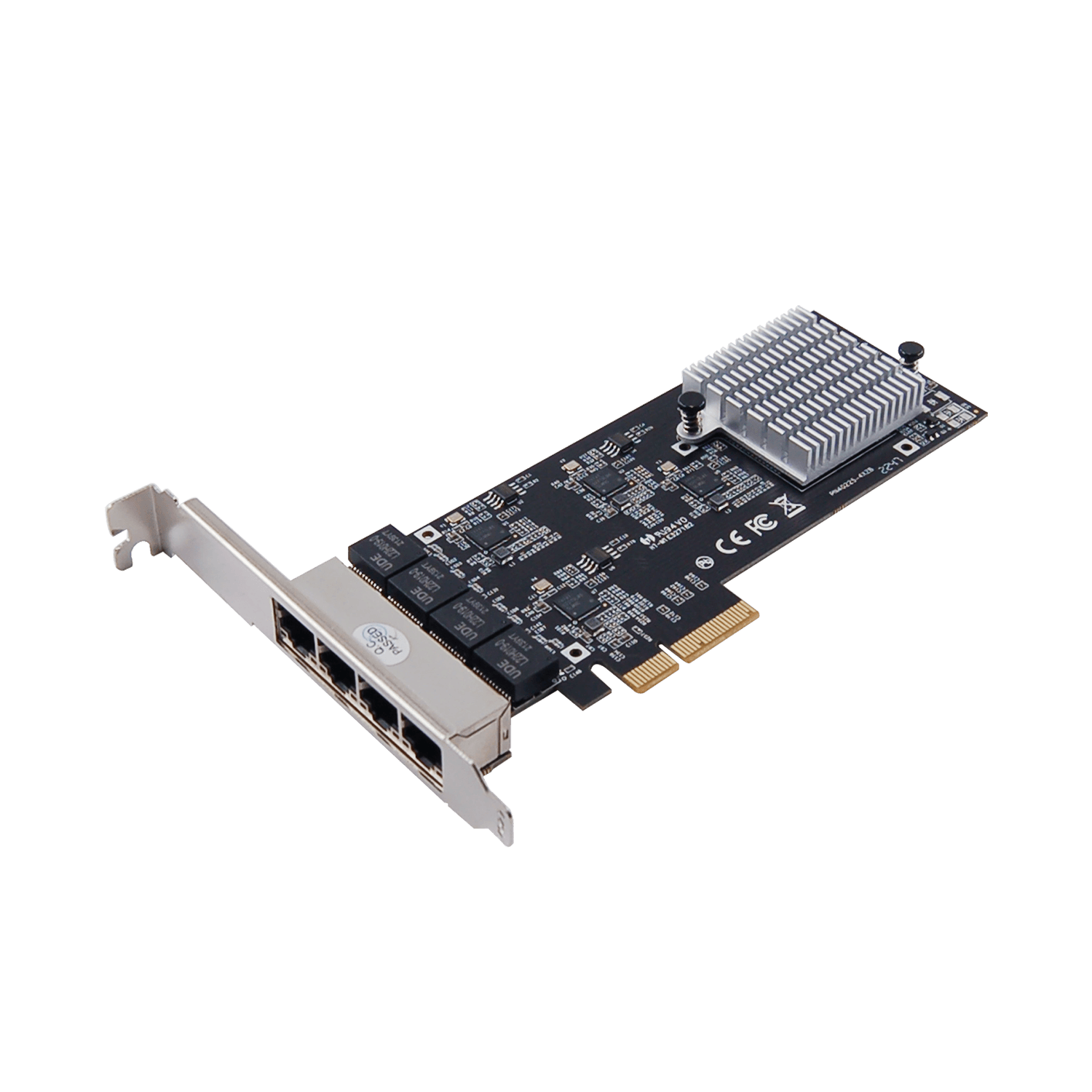

N-810
