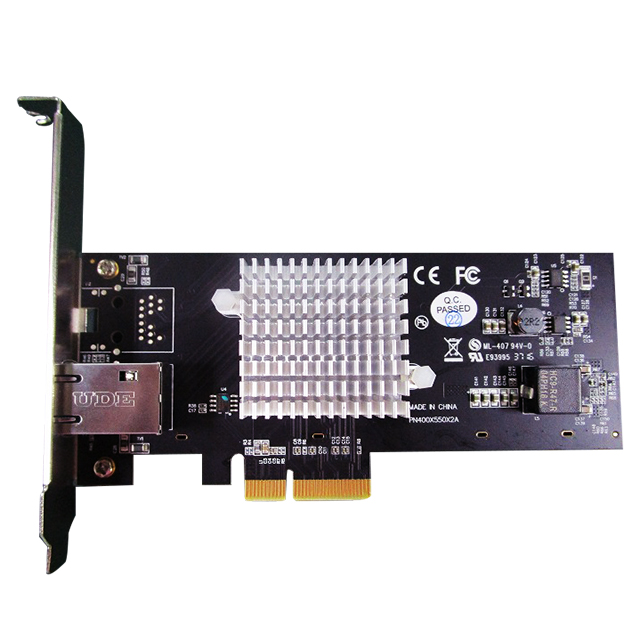

N-430 Intel PCIe 10G 5-Speed Multi-Gigabit Network AdapterEOL
Get a Quote ✎
2016/10/24
- 10GbE RJ45 Port
- PCIe 3.0 x4 Form Factor
- Ordering Code: N-430
- Part No: NE-D20-1110-00-00012
- Solution: Intel X550-AT
This 10Gbase-T network card (NIC) lets you add one RJ45 port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G, 1G and 100Mbps. Compliant with IEEE 802.3u/ab/an and IEEE P802.3bz standards, the network card delivers a dependable way to upgrade or replace your existing network ports with one 100Mbps/1G/2.5G/5G/10G compatible RJ45 port, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x4 or higher) PCI Express slot.
Features
- Add one 100Mbps/1G/2.5G/5G/10G (NBASE-T in Linux only) compatible RJ-45 Ethernet port
- Compliant with 10GBase-T and NBASE-T specifications
- Fully compliant with IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u
- Up to 20Gbps (full duplex) bandwidth
- Up to 9K jumbo frame support
- Designed to meet PCI Express Specification Revision 3.0
- Four lane (x4) PCI Express compatible with x4, x8 and x16 PCI Express slots
| Ordering Code | N-430 |
|---|---|
| Description | Intel PCIe 10G 5-Speed Multi-Gigabit Network Adapter |
| Solution | Intel X550-AT |
| Form Factor | PCIe 3.0 x4 |
| Bus Width | x4 lane PCI Express |
| OS Driver Support | Windows 7/8.x/10/11 Windows Server 2008 R2/2012/2012 R2 Linux 2.6.24 or later VMware ESXi 5.x/6.0 FreeBSD |
| Connectors | 1x 10GbE RJ45 Port |
| Data Rates | 10Gb/5Gb/2.5Gb/1Gb/100Mb Ethernet |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -40°C – 70°C |
| EMC Standards | CE, FCC |
| Dimensions | 163.3L x 120.92W x 21.59H mm |
| Package Contents | 1x Intel PCIe 10G 5-Speed Multi-Gigabit Network Adapter 1x User Manual |
| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 4.7 Kg ; N.W: 4.2 Kg |
Manual :
N-430 User Manual
↧ DownloadDriver :
Intel_10GbE_ESXi.zip
↧ DownloadIntel_10GbE_FreeBSD.zip
↧ DownloadIntel_10GbE_Linux.zip
↧ DownloadIntel_10GbE_Windows.zip
↧ Download
