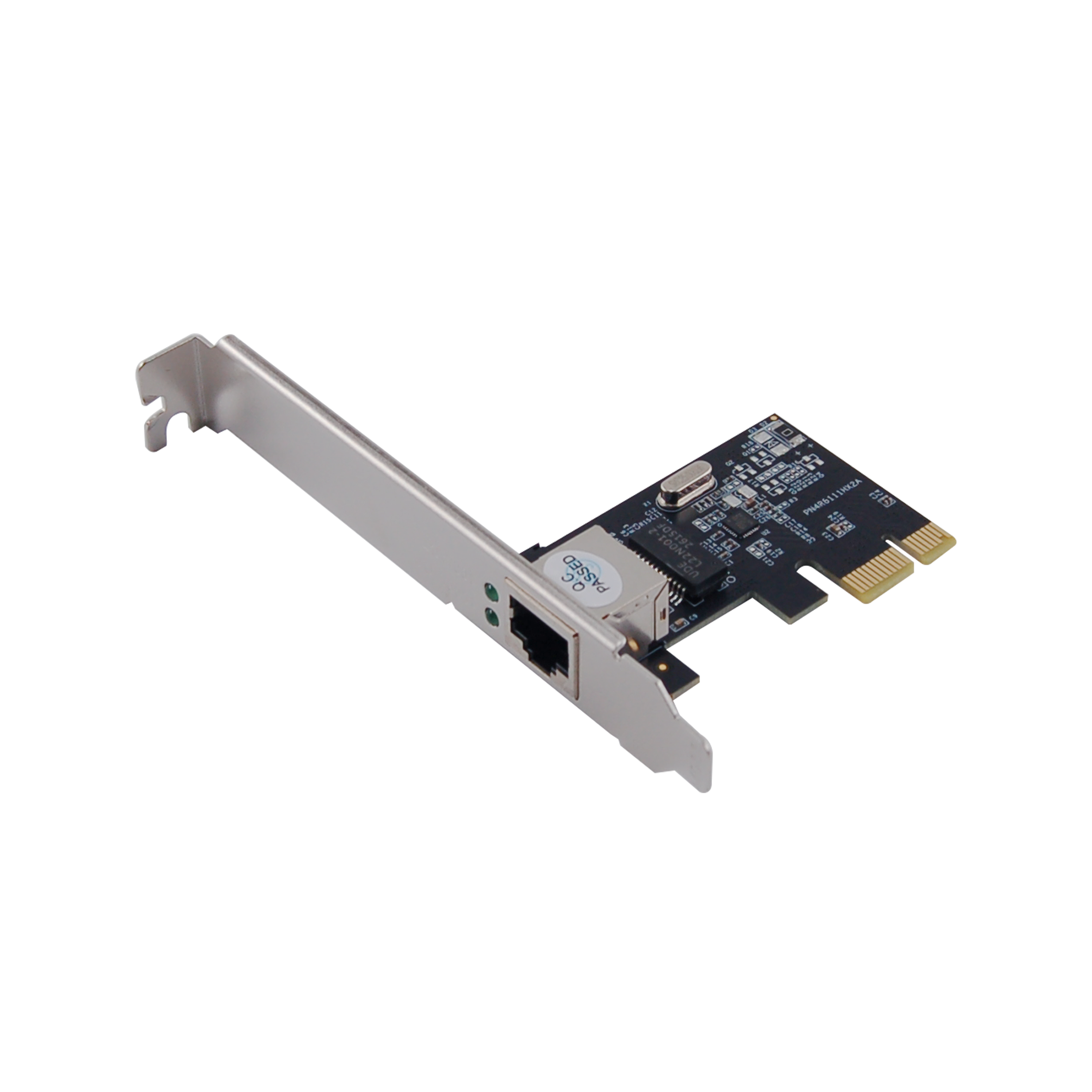

N-314 PCIe 1-Port Gigabit Ethernet Adapter
Get a Quote ✎
2014/07/26
- 1x 1GbE RJ45 Port
- Wake on Lan
- PCIe 1.1 x1 Form Factor
- Ordering Code: N-314
- Part No: NE-R24-2110-00-00012
- Solution: Realtek RTL8111H
N-314 is a 10/100/1000M Gigabit Ethernet PCI Express Card. It provides throughput and connectivity at gigabit speeds up to 1000 Mbps (1Gbps) raw bandwidth. This NIC Card equips high quality Realtek8111H chipset which is optimized for maximum throughput and low CPU utilization solution. It can support Microsoft Windows OS, Windows Server OS and Linux OS.
Features
- Single-lane (or x1) PCI Express throughput supports rate of 2.5Gbps
- Designed to meet PCI Express Specification Revision 1.1a
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- 10/100/1000M data auto-negotiation
- LEDs indicate the status of data transmission
- Support Wake on Lan (WOL) power management (optional)
- Feature full duplex mode that doubles the network connections speed
| Ordering Code | N-314 |
|---|---|
| Description | PCIe 1-Port Gigabit Ethernet Adapter |
| Solution | Realtek RTL8111H |
| Form Factor | PCIe 1.1 x1 |
| Bus Width | x1 lane PCI Express |
| OS Driver Support | Windows 2000/XP/Vista/7/8/8.1/10 (32/64 bit) Windows Server 2003/2008/2008 R2/2012/2012 R2 |
| Connectors | 1x 1GbE RJ45 Port |
| Data Rates | 1Gb/100Mb/10Mb Ethernet |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -40°C – 70°C |
| EMC Standards | CE, FCC |
| Dimensions | 78.6L x 120.9W x 21.6H mm |
| Package Contents | 1x PCIe 1-Port Gigabit Ethernet Adapter 1x User Manual |
| Packing Information | Retail Box Packing 60 pcs/Carton Measurment: 54L x 52W x 40H cm G.W: 9.8 Kg ; N.W: 9 Kg |
