M-391 HDMI™ 1x4 Splitter with 3D and 4Kx2KEOL
Get a Quote ✎
2015/06/26
- 1x HDMI™ Input Port
- 4x HDMI™ Output Ports
- Resolution 4K x 2K
- Ordering Code: M-391
- Part No: HN-F10-5211-11-00012
- Solution: LT86104SX

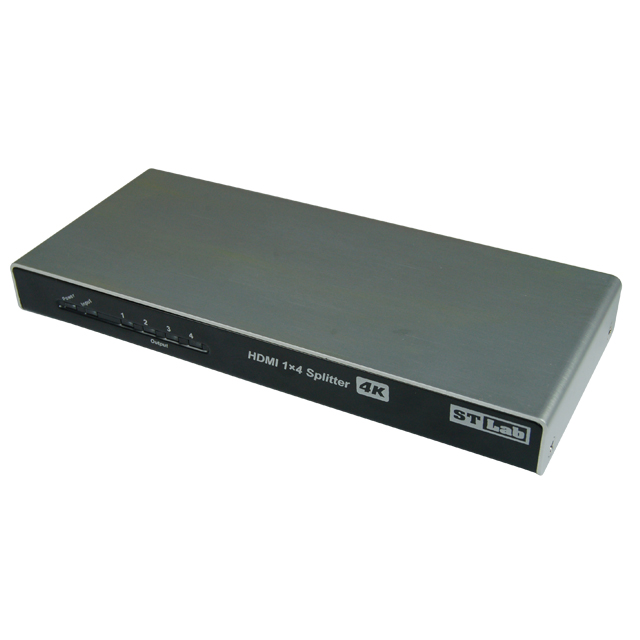

M-391 is a 1x4 HDMI™ Splitter that lets you watch the same HDMI™ source to up to 4 displays. It supports Deep Color, 3D and 4Kx2K resolution. Its sleek aluminium case always looks as good as your high-end home theatre system.
Features
- One HDMI™ input, four HDMI™ outputs
- HDMI™ 1.4 compliant
- HDCP 1.4 compliant
- Supports signal rate up to 3.4Gbps
- Supports 1080p and up to 4Kx2K PC resolution
- Supports HDMI™ Deep Color & full 3D
- Supports Auto EDID

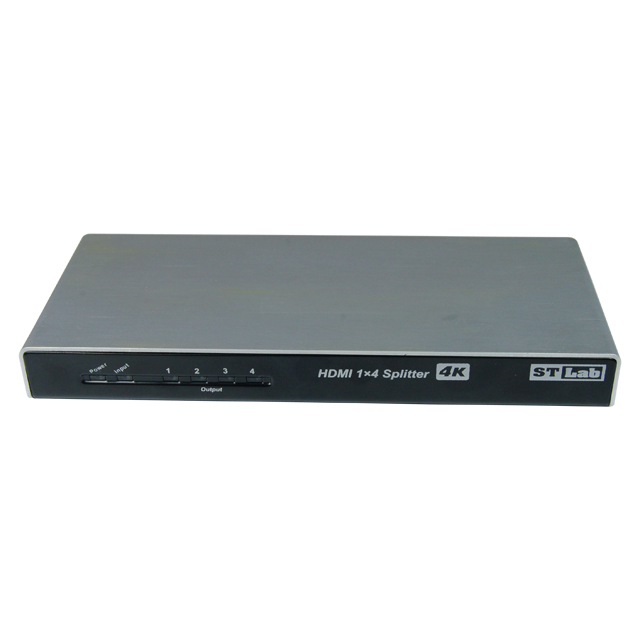

- Front panel LED indicators
- Easy installation
- Meta case
| Ordering Code | M-391 |
|---|---|
| Description | HDMI™ 1x4 Splitter with 3D and 4Kx2K |
| Solution | LT86104SX |
| Standard Compliance | HDMI™ 1.4 |
| OS Driver Support | OS independent with no drivers required |

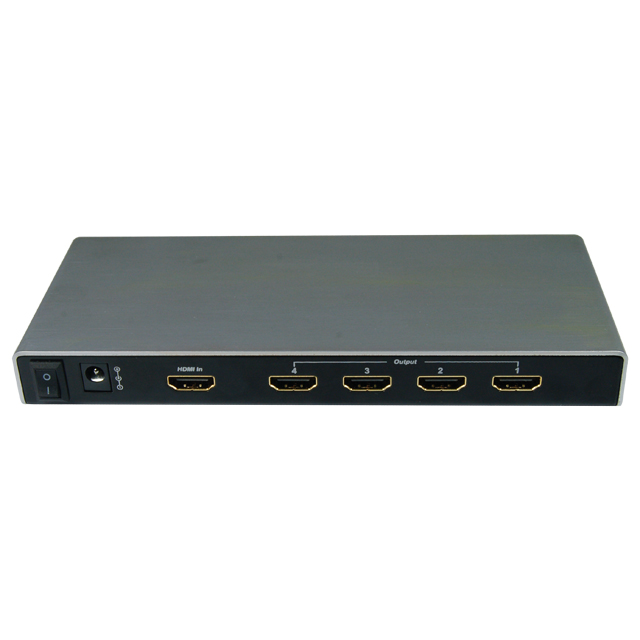

| Connectors | 1x HDMI™ Input Port 4x HDMI™ Output Ports |
| Resolution | 4K x 2K |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | N/A |
| Package content | 1x HDMI™ 1x4 Splitter with 3D and 4Kx2K 1x Power Adapter 1x User Manual |

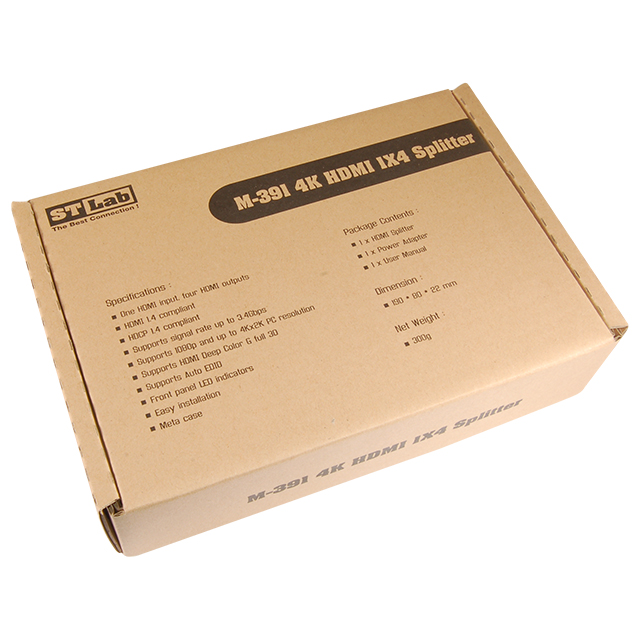

| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 48L x 30.5W x 34.5H cm G.W: 11.5 Kg ; N.W: 10.5 Kg |
