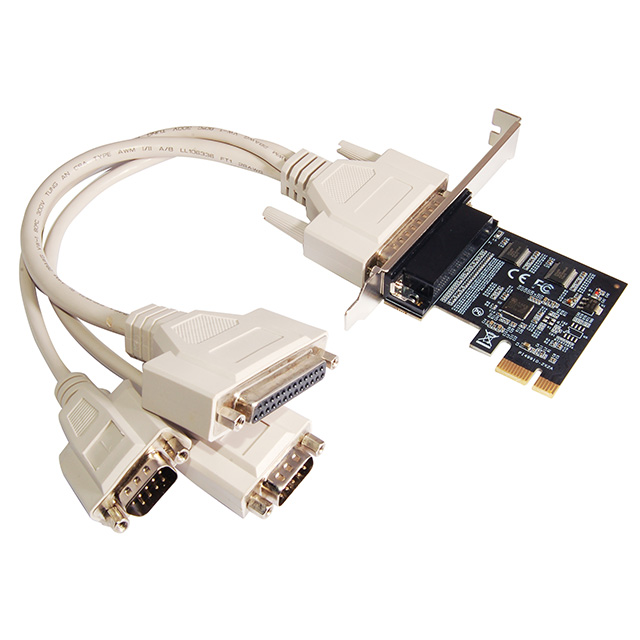

I-590 PCIe 2-Port Serial + 1-Port Parallel CardEOL

Get a Quote ✎

2020/11/02

2x DB9 serial 921.6Kbps Male Port
1x DB25 Parallel 190Kbps Female Port
PCIe 2.0 x1 Form Factor

Ordering Code: I-590
Part No: IE-A59-7230-00-00012
Solution: Asix AX99100

The card allows users to expand an additional LPT port and two Serial port on PC-based systems to connect their devices.The card is used for business automation and is also ideal for home or office users.

Features

Compliant with PCIe 2.0 Gen 1
Compatible with IEEE 1284 –SPP/Byte/ECP Mode
Add one IEEE1284 Parallel port on system
Serial data transfer rate up to 921600bps
Supports 2 x UART serial port
Parallel data transfer rate up to 190KB/s
PCI-Express x1

Ordering Code	I-590
Description	PCIe 2-Port Serial + 1-Port Parallel Card
Solution	Asix AX99100
Form Factor	PCIe 2.0 x1
Bus Width	x1 lane PCI Express
OS Driver Support	Windows XP/Vista/7/8.x/10 (32/64 bit) Linux 2.6.32 or later
Connectors	2x DB9 serial 921.6Kbps Male Port 1x DB25 Parallel 190Kbps Female Port
Data Rates	DB9 serial 921.6Kbps DB25 Parallel 190Kbps
Operating Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
EMC Standards	CE, FCC
Dimensions	78.6L x 120.9W x 21.6H
Package Contents	1x PCIe 2-Port Serial + 1-Port Parallel Card 1x Fan Out Cable 1x User Manual
Packing Information	Retail Box Packing 40 pcs/Carton Measurment: 56.5L x 34.1W x 43H cm
