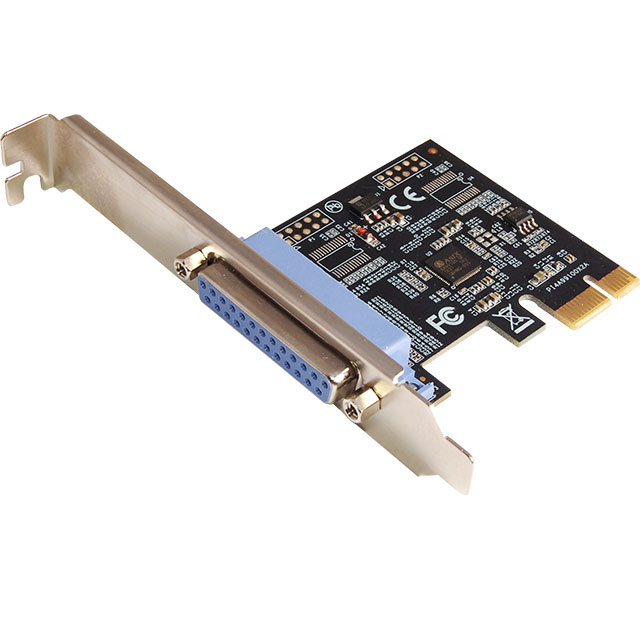

I-570 PCIe 1-Port Parallel CardEOL

Get a Quote ✎

2020/03/20

1x DB25 Parallel Female Port
190Kbps Parallel data rate
PCIe 2.0 x1 Form Factor

Ordering Code: I-570
Part No: IE-A59-6110-00-00012
Solution: Asix AX99100

This card enables user to expand one additional LPT ports on their PC-based system for connecting their parallel devices. Due to current mainboards does not equip any Parallel (LPT) port, this card is your best solution to utilize your centronics peripheral with parallel port in an easy-to-use environment and creates for use in the commercial automation and as well ideal for home or office users.

Features

Compliant with PCIe 2.0 Gen 1
Compatible with IEEE 1284 –SPP/Byte/ECP Mode
Add one IEEE1284 Parallel port on system
Data transfer rate up to 190KB/s
PCI-Express x1
1 x DB25 female connector

Ordering Code	I-570
Description	PCIe 1-Port Parallel Card
Solution	Asix AX99100
Form Factor	PCIe 2.0 x1
Bus Width	x1 lane PCI Express
OS Driver Support	Windows XP/Vista/7/8.x/10 (32/64 bit) Linux
Connectors	1x DB25 Parallel Female Port
Data Rates	190Kbps
Operating Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
EMC Standards	CE, FCC
Dimensions	78.6L x 120.9W x 21.6H mm
Package Contents	1x PCIe 1-Port Parallel Card 1x User Manual
Packing Information	Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm
