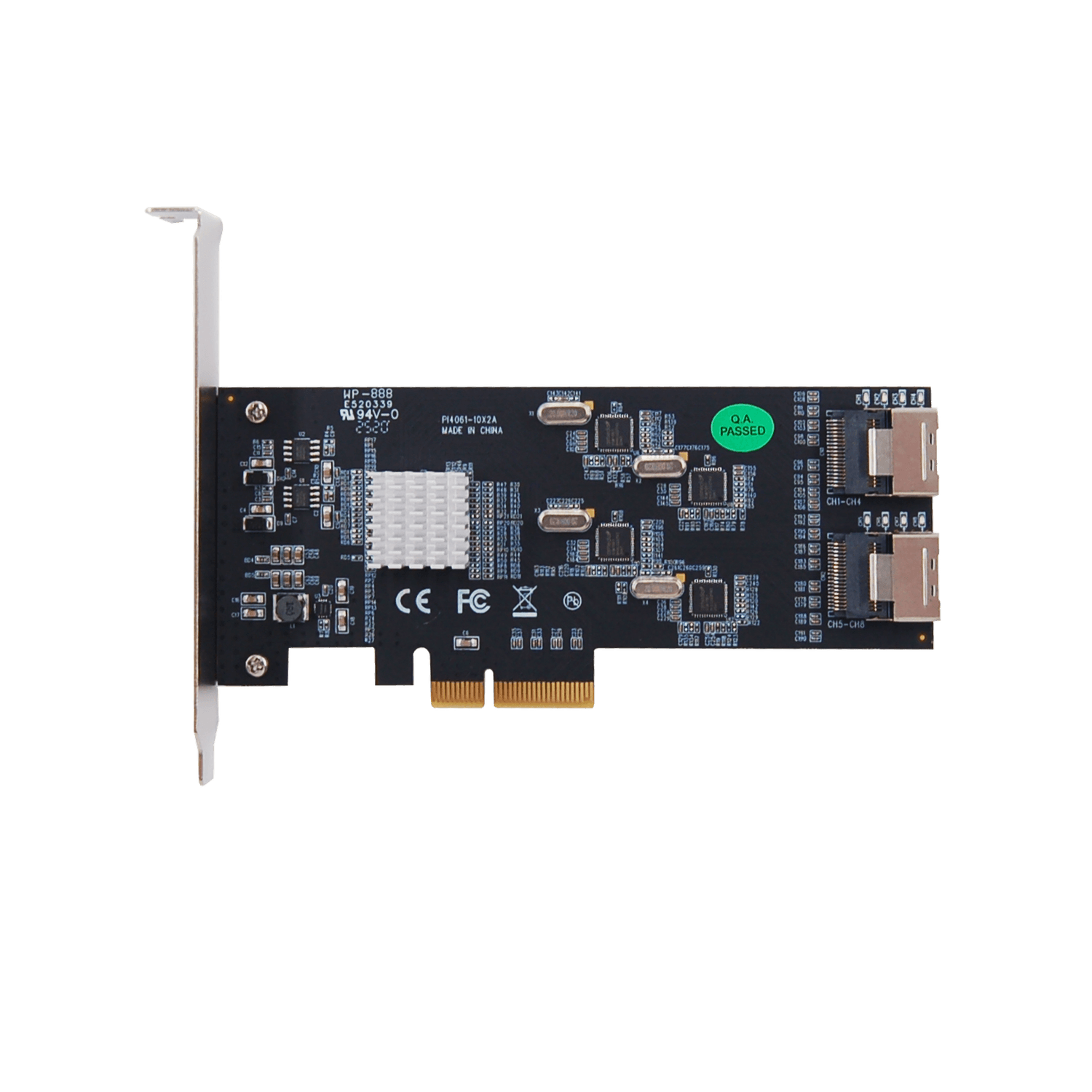

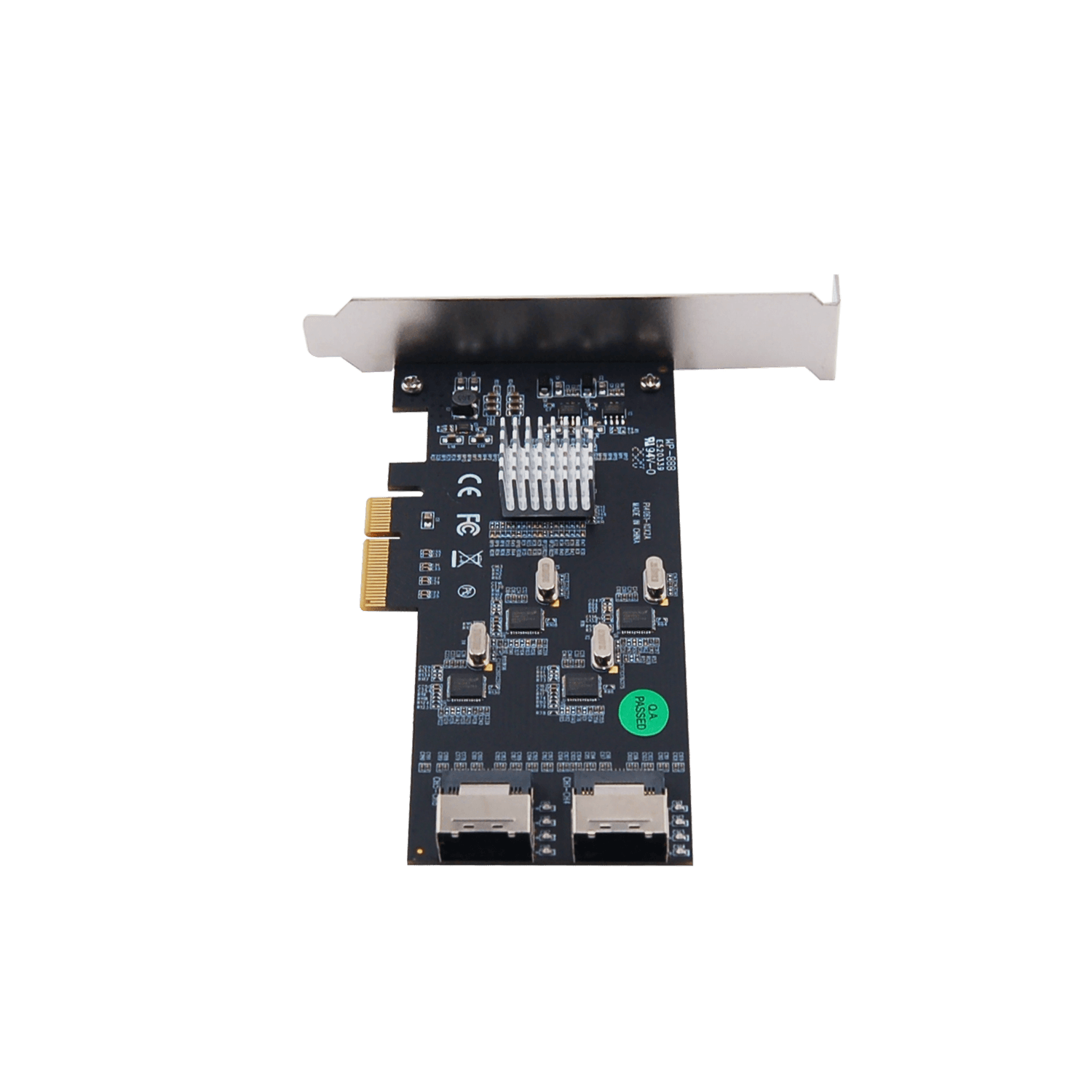

A-590 8-Port SATA 6G PCIe Card


8 x int. SATA ports via 2 x mini SAS connectors (SFF-8087)
Supports communication speeds of 6.0Gbps, 3.0Gbps and 1.5Gbps

  • Ordering Code: A-590
  • Part No: IE-A34-A308-00-00012
  • Solution: ASM1061

This board is a PCI Express to eight SATA Gen III 6Gb/s channels host controller that brings server-class features to the desktop.

This board enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives.

It supports connecting up to eight SATA devices via two internal mini SAS (SFF-8087) connectors.

Each SATA connection supports throughput up to 6Gbps when installed into PCI-Express 2.0 slot with 4 or more lanes.


Eight internal SATA ports via two internal mini SAS connectors (SFF-8087)

Compliant with PCI-Express Specification v2.1 and backward compatible with PCI-Express 1.x

Compliant with Serial ATA Specification 3.0

PCI Express x4 interface, and compatible with PCI Express x8 and x16 slots

Supports communication speeds of 6.0Gbps, 3.0Gbps and 1.5Gbps

Hot plug and Hot Swap

Support ATA and ATAPI commands

Support Native Command Queue (NCQ)

Support Port Multiplier

8 LEDs for drive activity


System Requirements:

Windows XP/Vista/7/8/8.1/10 (32/64 bit); Mac OS X 10.6.8 or later; Linux 2.6.32 and up (Tested up to 3.16 kernel)

Available 4-Lanes PCI-Express slot gen 2.0 or alter


Package Contents:

1 x 8-Port SATA 6G PCIe Card

1 x Driver CD

1 x User Manual


Packing Information:

* Retail Blister

* 40pcs. Per carton

* Measurment: 52.7x45.5x35.5 cm

* G.Weight: 9 Kg ; N.Weight: 8 Kg
