A-550 PCIe SSD + SATA 6G Adapter

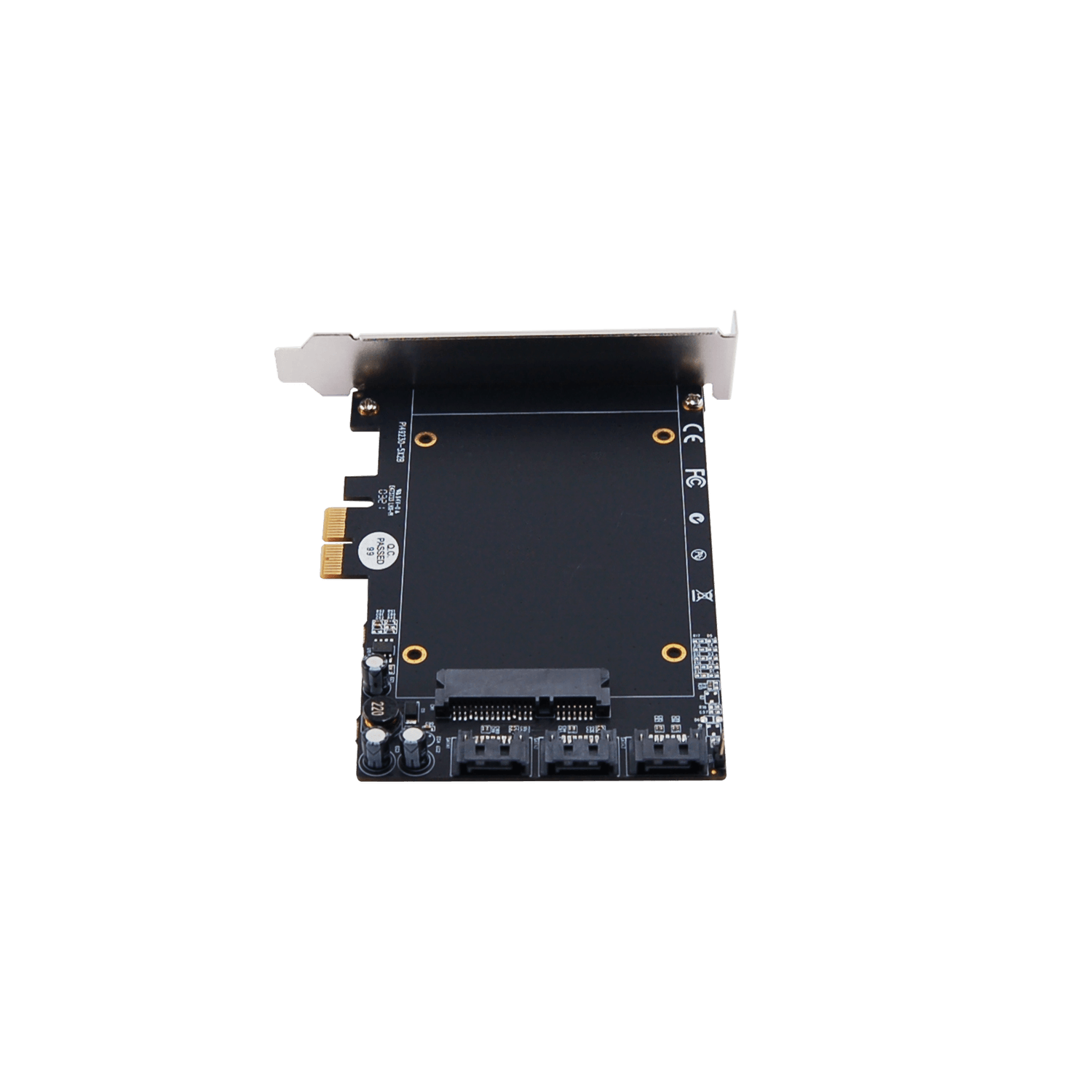

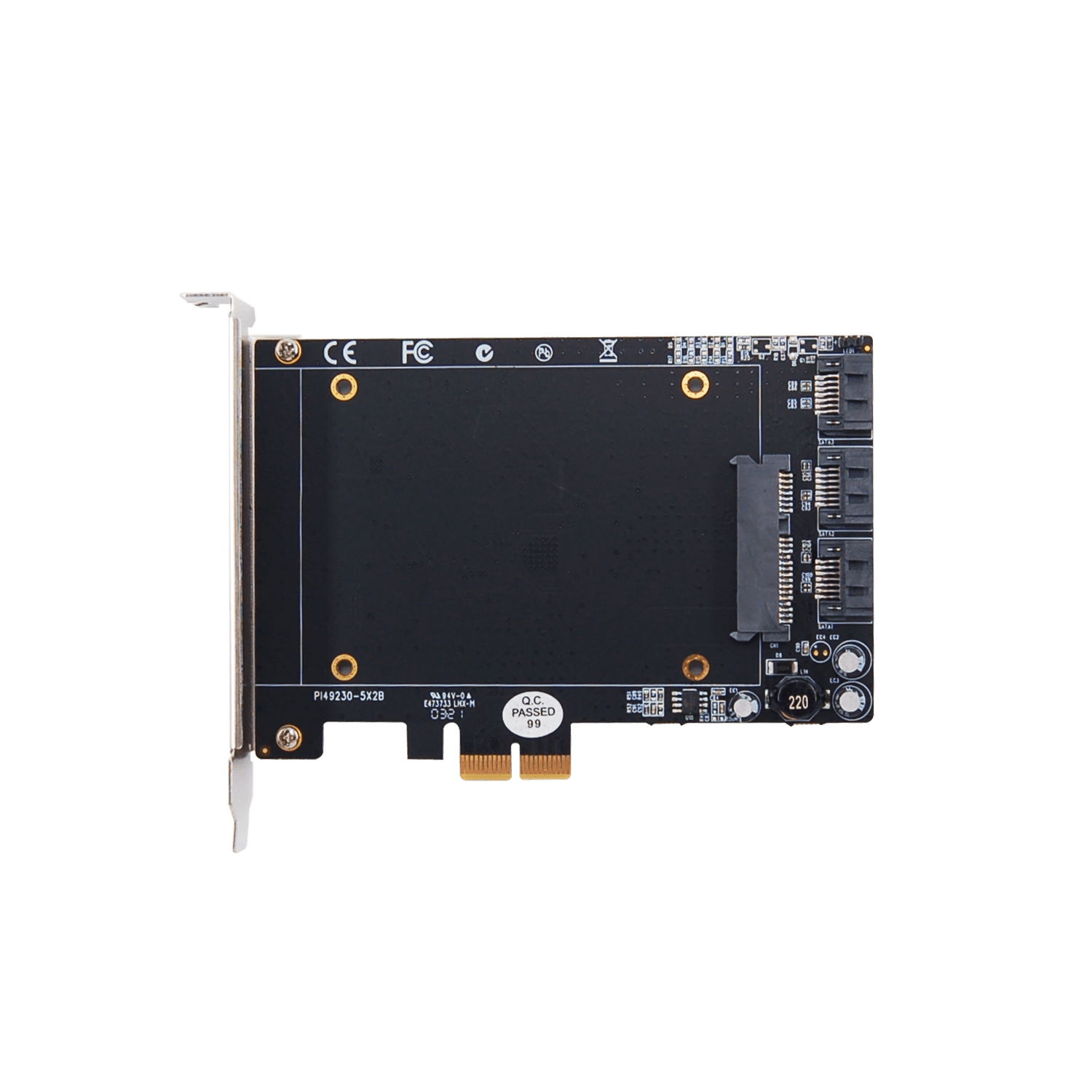

Engineered to deliver high-density storage expansion and hardware-level redundancy, the A-550 PCIe SSD+SATA 6G RAID Card equips modern PCs and Network Attached Storage (NAS) systems with flexible, low-overhead array configurations. Built around the Marvell 88SE9230 chipset and utilizing a PCIe 2.0 x2 host interface, this Serial ATA Revision 3.0 compliant controller features four total channels via one internal 2.5” SATA connector for integrated SSD mounting and three standard internal SATA ports. Capable of driving 6G, 3G, and 1.5G drives, it features Native Command Queuing (NCQ), FIS-based and command-based Port Multiplier switching, as well as hardware RAID 0, 1, 10, and HyperDuo acceleration to significantly reduce CPU overhead during heavy read-write operations

Features

• Mount one SSD and three SATA HDDs/SSDs in PCIe slot
• Compliant with PCI-Express Specification v2.0 and backward compatible with PCI-Express 1.x
• Compliant with Serial ATA Specification 3.0
• PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots
• Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps
• Hot plug and Hot Swap
• Supports Native Command Queuing (NCQ)
• Supports Port Multiplier FIS based switching or command based switching
• Compatible with SATA 6G, 3G and 1.5G Hard Drives
• Support RAID function: RAID 0, RAID 1, RAID 10 and HyperDuo
