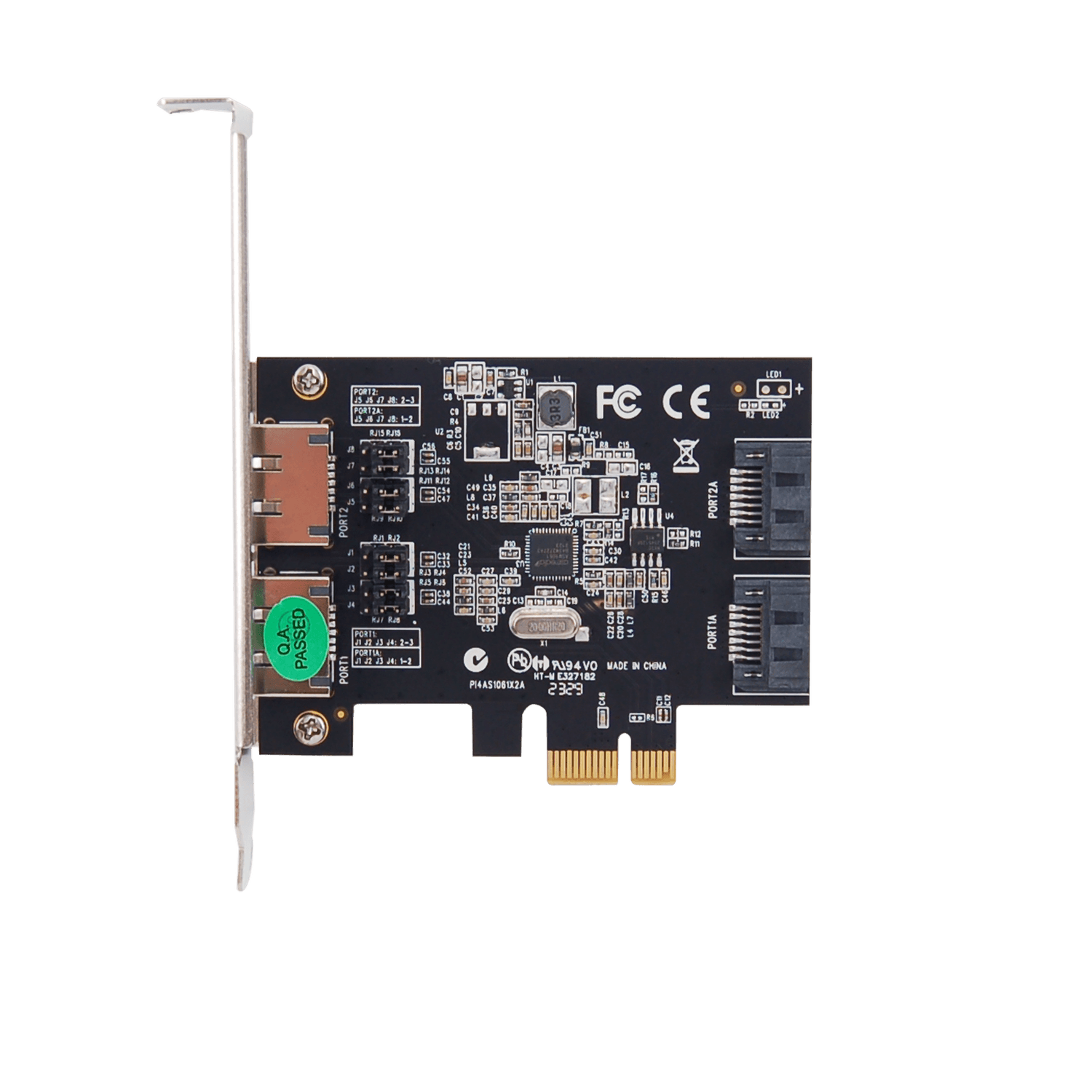

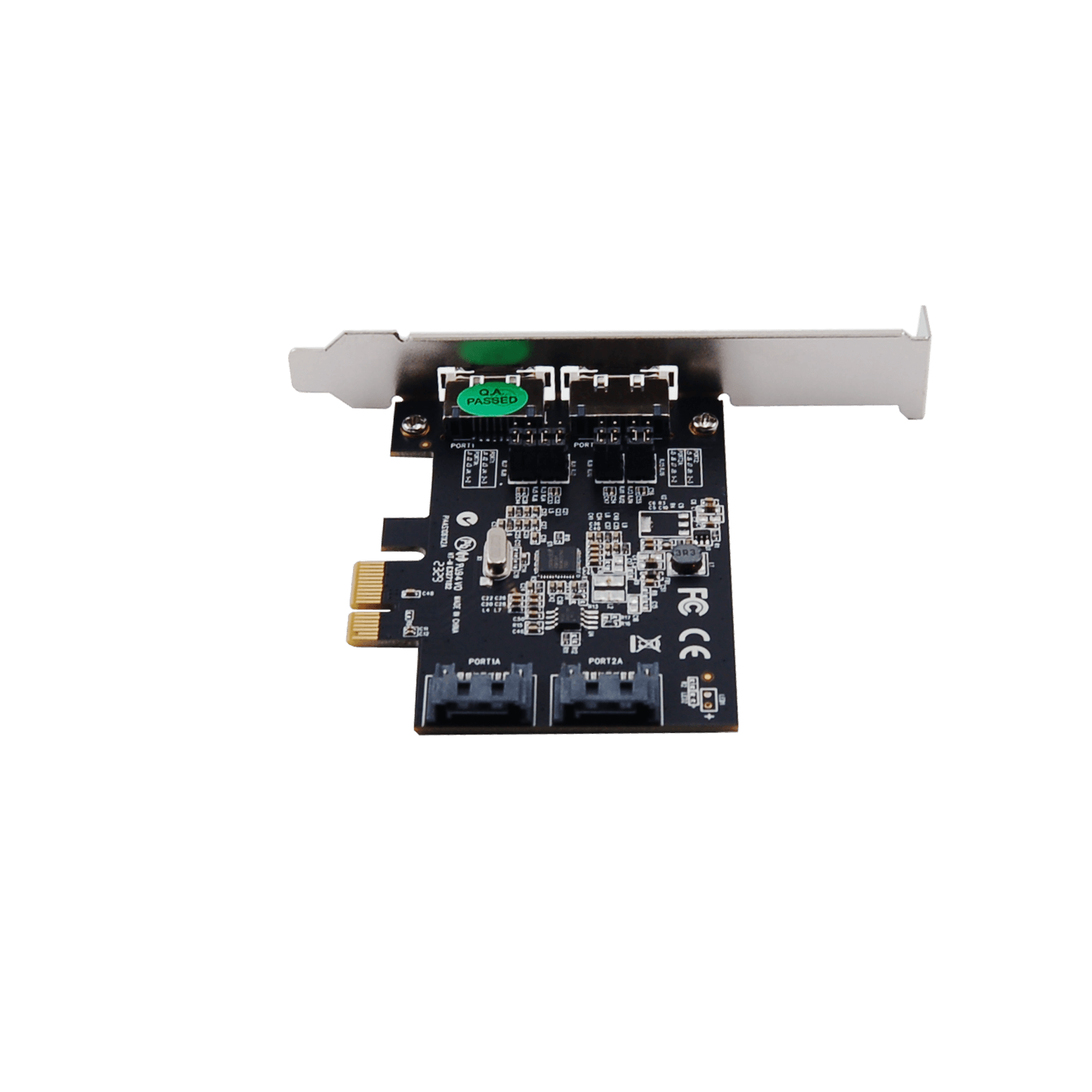

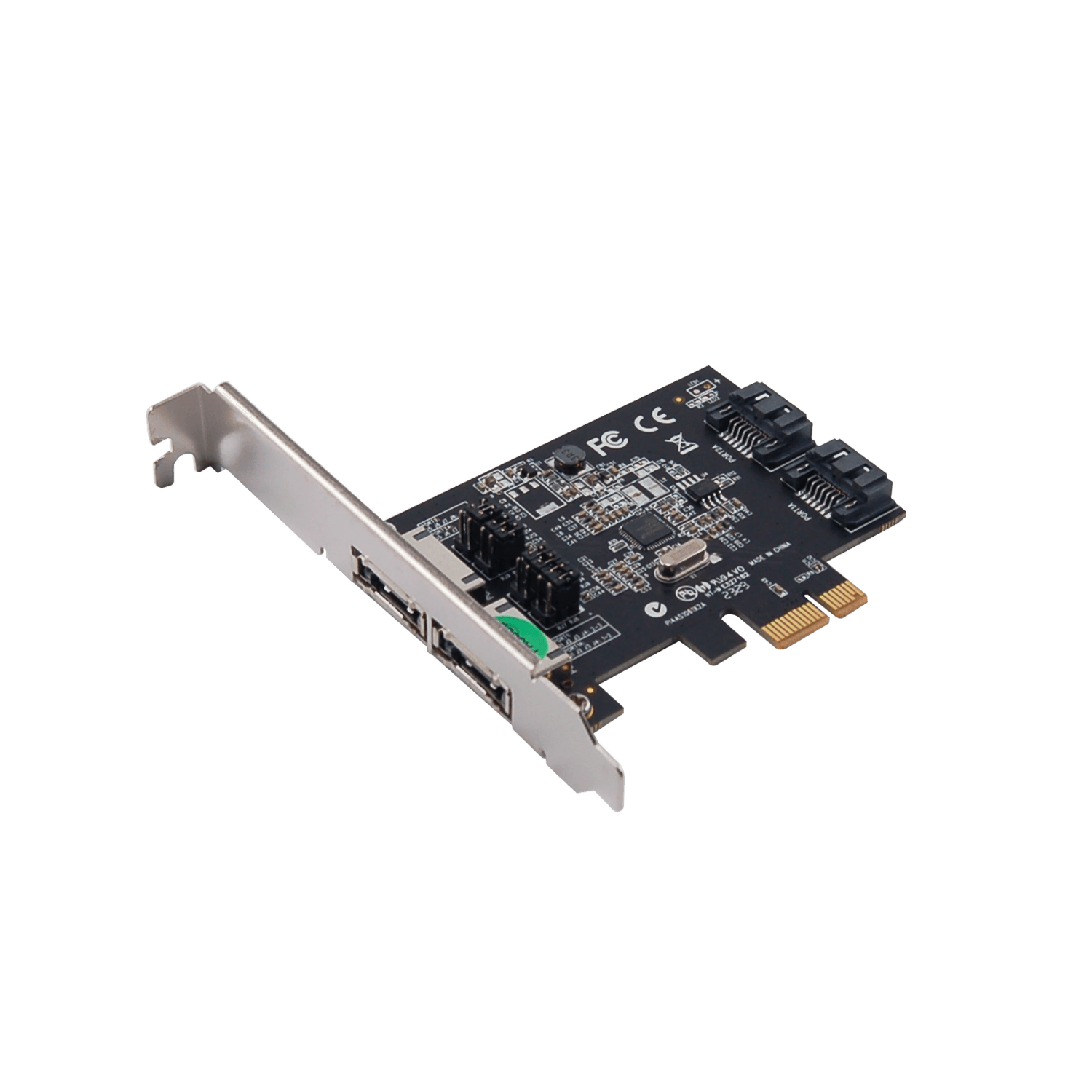

A-480 PCIe SATA 6G Controller Card (2 Channels, 2 x ext. eSATA + 2x int. SATA Ports) w/Cables

Designed to provide a cost-effective storage expansion solution for high-density environments, the A-480 PCIe SATA 6G Card enables the seamless addition of two SATA 6G drives to modern desktop and industrial PCs. Built around the ASMedia ASM1061 chipset and utilizing a PCIe 2.0 x1 host interface, this Serial ATA Revision 3.0 compliant controller supports high-speed 6G, 3G, and 1.5G SATA hard drives. The adapter features flexible physical routing with two external eSATA ports and two internal SATA ports, allowing system integrators to activate any two ports simultaneously. Equipped with Native Command Queuing (NCQ), Port Multiplier support, and full hot-swap capability, the A-480 ensures reliable, low-overhead SATA connectivity for expanding storage infrastructure.

Features

• Compliant with PCI-Express Specification v2.0 and backward compatibile with PCI-Express 1.x
• Compliant with Serial ATA Specification 3.0
• Compatible with SATA 6G, 3G and 1.5G Hard Drives
• Supports communication speeds of 6.0Gbps, 3.0Gbps and 1.5Gbps
• Hot plug and Hot Swap
• Support Native Command Queue (NCQ)
• Support Port Multiplier
